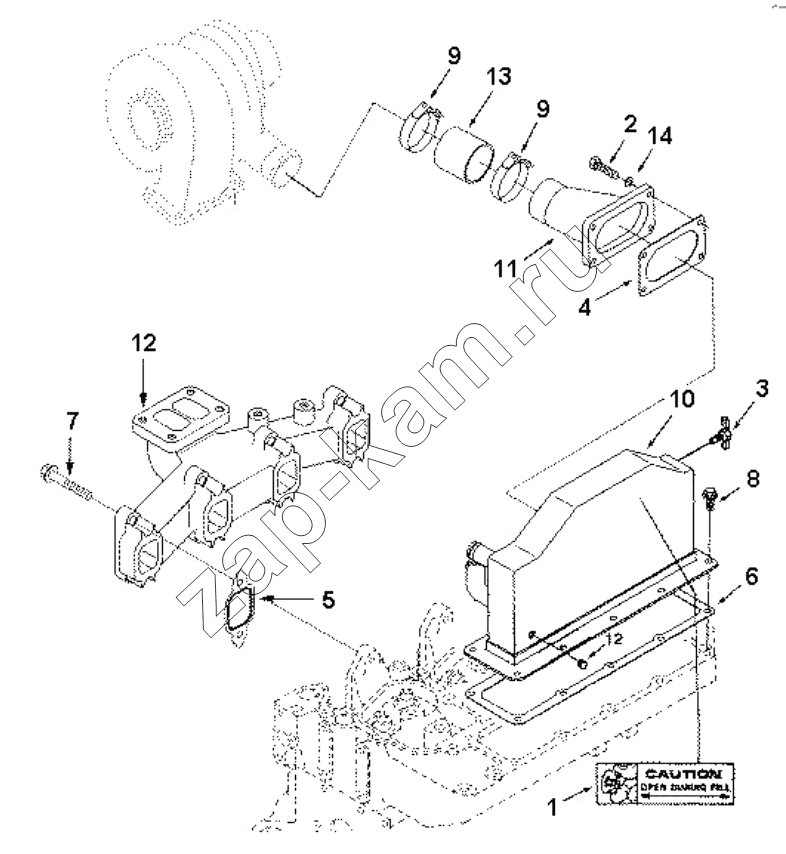

TB91623ZZ Supercharger layout
/ DCEC 4BTA3.9-G2
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | C3415334 | DECAL | 1; | - | |
| 2 | C3900631 | SCREW, HEX FLANGE HEAD CA | 4; | - | |
| 3 | C3909394 | DRAINCOCK | 1; | - | |
| 4 | C3914856 | GASKET, CONNECTION | 1; | - | |
| 5 | C3929881 | GASKET, EXHAUST MANIFOLD | 4; | - | |
| 6 | C3938153 | GASKET, INT MANIFOLD COVE | 1; | - | |
| 7 | C3944593 | SCREW, HEX FLANGE HEAD CA | 8; | - | |
| 8 | C4928945 | SCREW, HEX FLANGE HEAD CA | 7; | - | |
| 9 | C4928973 | CLAMP, T BOLT | 2; | - | |
| 10 | C4938507 | AFTERCOOLER | 1; | - | |
| 11 | C4987913 | PIPE, AIR TRANSFER | 1; | - | |
| 12 | C4988420 | MANIFOLD, EXHAUST | 1; | - | |
| 13 | C4991284 | HOSE, PLAIN | 1; | - | |
| 14 | C4991510 | WASHER, SEALING | 4; | - |
