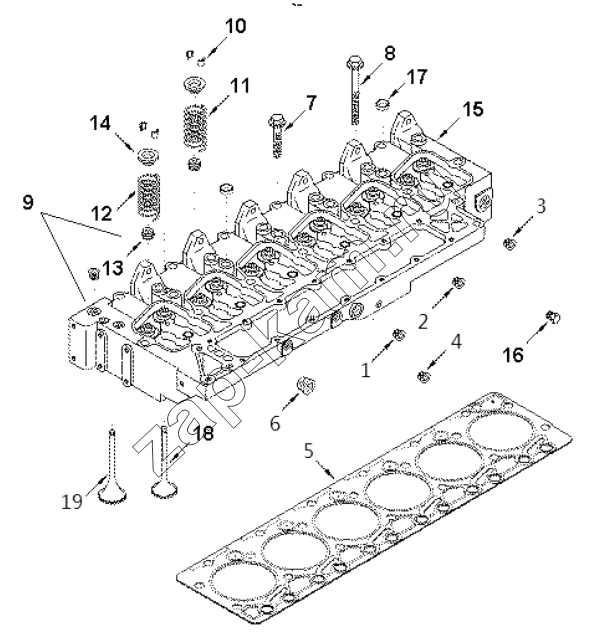

PP90526ZZ Cylinder head
/ DCEC 6BTAA5.9-G12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | C3008468 | PLUG, PIPE | 3; | |
| 2 | C3008468 | PLUG, PIPE | 1; | |
| 3 | C3008468 | PLUG, PIPE | 1; | |
| 4 | C3008469 | PLUG, PIPE | 1; | |
| 5 | C3283570 | GASKET, CYLINDER HEAD | 1; | |
| 6 | C3906619 | PLUG, PIPE | 1; | |
| 7 | C3920779 | SCREW, HEX FLANGE HEAD CA | 6; | |
| 8 | C3920780 | SCREW, HEX FLANGE HEAD CA | 14; | |
| 9 | C4981002 | HEAD, CYLINDER | 1; | |
| 10 | C3900250 | COLLET, VALVE | 24; | |
| 11 | C3916691 | SPRING, VALVE | 6; | |
| 12 | C3926700 | SPRING, VALVE | 6; | |
| 13 | C3957912 | SEAL, VALVE STEM | 12; | |
| 14 | C3957913 | RETAINER, VALVE SPRING | 12; | |
| 15 | C4981003 | HEAD, CYLINDER | 1; | |
| 16 | C3008468 | PLUG, PIPE | 1; | |
| 17 | C3812092 | PLUG, EXPANSION | 4; | |
| 18 | C4994143 | VALVE, EXHAUST | 6; | |
| 19 | C4995554 | VALVE, INTAKE | 6; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
