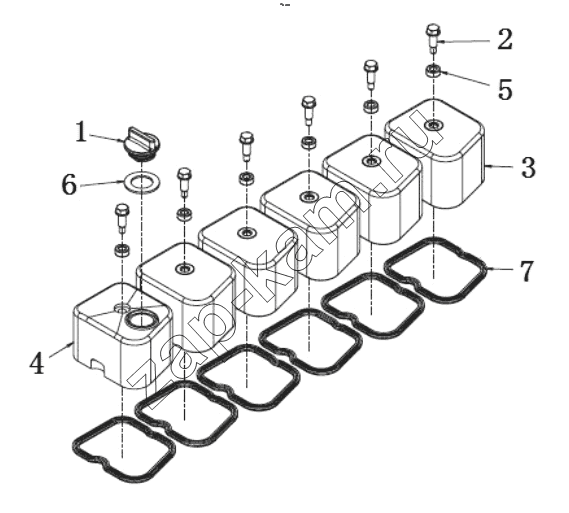

VC 9752ZZ Valve chamber cover
/ DCEC 6BTAA5.9-G12

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 4B3.9-G1 4B3.9-G12 (2018) 4B3.9-G2 (2014) 4BT3.9-G1 (2014) 4BTA3.9-G2 (2014) 6BTAA5.9-G12 (2016) 6CTA8.3-C190-II (2016) 6ZTAA13-G2 (2014) ISZ450 41 (2014) QSZ13-G10 (2021)

Схема > Не выбрано AF 9267ZZ Front-end accessory driver AH 9227ZZ Intake preheater AP90258ZZ Parameter card BB 9340ZZ Cylinder block BB 9518ZZ Gear room BR 9119ZZ Crankcase ventilation parts CM 9102ZZ Push rod chamber cover DA 9349ZZ Torsional vibration shock absorber EA 9109ZZ Electronic accessories EC 9066ZZ Thermostat ED 9081ZZ Customer parameter card EE 9346ZZ Generator EH97786ZZ Generator installation parts EM 9342ZZ Engine front suspension bracket EO 9157ZZ Speed sensor ES 9197ZZ Fuel control FA 9814ZZ Fan driver FE 9090ZZ Supercharger compensation connecting tube FF90203ZZ Fuel filter FF90527ZZ Fuel filter connection line FH 9773ZZ Flywheel shell FN 9273ZZ Engine fan FP92943ZZ Fuel pump installation parts FP93283ZZ Fuel pump FS90252ZZ Oil pump FS90259ZZ Oil supply accessories FT 9520ZZ Fuel line FW 9934ZZ Flywheel mounting parts FW90268ZZ Flywheel GG 9884ZZ Front gear chamber cover IC 9745ZZ Air intake connector IC 9746ZZ Air intake connection mounting piece IM 9159ZZ Intake manifold IT 9133ZZ Air outlet connector LA 9222ZZ Engine lug LC 9727ZZ Oil cooler LF 9210ZZ Full flow oil filter LG90404ZZ Oil ruler LP 9072ZZ Oil pump OB 9659ZZ Oil filling device OB 9725ZZ Cylinder block refueling accessories OP 9314ZZ Oil pan OP 9735ZZ Oil pan mounting parts PP44283ZZ Performance parts PP90525ZZ Injector pipeline PP90526ZZ Cylinder head PP90691ZZ Supercharger RE 9113ZZ Engine rear suspension bracket RL 9737ZZ Rocker arm RP 9156ZZ Engine coolant in addition to trachea SD 9285ZZ Coolant temperature sensor SD 9319ZZ Oil pressure sensor SM 9784ZZ Starter mounting parts SP 9167ZZ Fan spacer SS 9530ZZ Random parts SS 9531ZZ Paint ST 9501ZZ Starter TB91047ZZ Exhaust manifold mounting parts TB97061ZZ Exhaust manifold TH 9105ZZ Thermostat seat TP97546ZZ Supercharger pipeline VC 9752ZZ Valve chamber cover WI 9343ZZ Water inlet connecting pipe WP 9927ZZ Water pump WP97254ZZ Belt tensioner WP97255ZZ Water pump drive parts XS 9540ZZ Exhaust connector

1

2

3

4

5

6

7

Поз.	Артикул		Название детали	Кол-во
1	C3901895		CAP, FILLER	1;
2	C3907049		SCREW, HEX FLANGE HEAD CA	6;
3	C3928404		COVER, VALVE	5;
4	C3928405		COVER, VALVE	1;
5	C3935449		ISOLATOR, NOISE	6;
6	C3936876		SEAL, RECTANGULAR RING	1;
7	C5316380		GASKET, VALVE COVER	6;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
