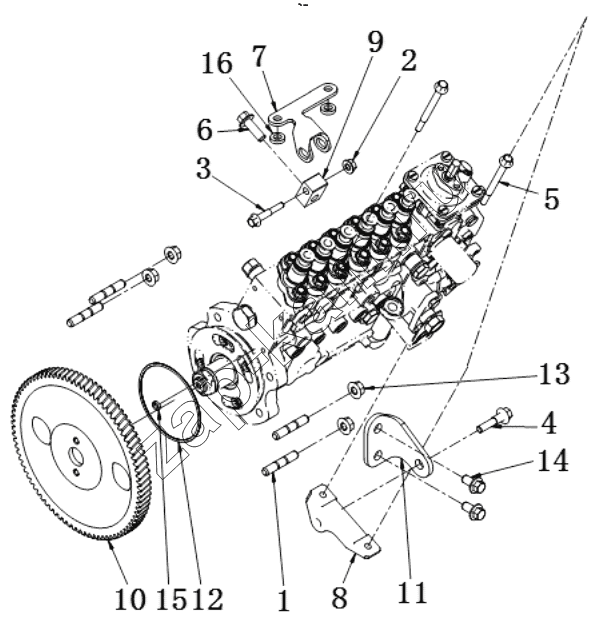

FP92847 Fuel Pump Mount
/ DCEC 6CTA8.3-C190-II
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | C3282372 | STUD, DOUBLE END PLAIN | 4; | - | |
| 2 | C3900589 | NUT, HEXAGON FLANGE | 1; | - | |
| 3 | C3901445 | SCREW, HEX FLANGE HEAD CA | 1; | - | |
| 4 | C3903464 | SCREW, HEX FLANGE HEAD CA | 1; | - | |
| 5 | C3913366 | SCREW, HEX FLANGE HEAD CA | 2; | - | |
| 6 | C3920622 | SCREW, HEX FLANGE HEAD CA | 1; | - | |
| 7 | C3921357 | BRACE, FUEL PUMP | 1; | - | |
| 8 | C3926273 | SUPPORT, FUEL PUMP | 1; | - | |
| 9 | C3926781 | SUPPORT, FUEL PUMP | 1; | - | |
| 10 | C3931380 | GEAR, FUEL PUMP | 1; | - | |
| 11 | C3938091 | SUPPORT, FUEL PUMP | 1; | - | |
| 12 | C3969698 | SEAL, O RING | 1; | - | |
| 13 | C4988581 | NUT, HEXAGON FRANGE | 4; | - | |
| 14 | C4997265 | SCREW, HEX FLANGE HEAD CA | 2; | - | |
| 15 | C5272819 | SEAL, RECTANGULAR RING | 1; | - | |
| 16 | C5297418 | SPACER, MOUNTING | 2; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
