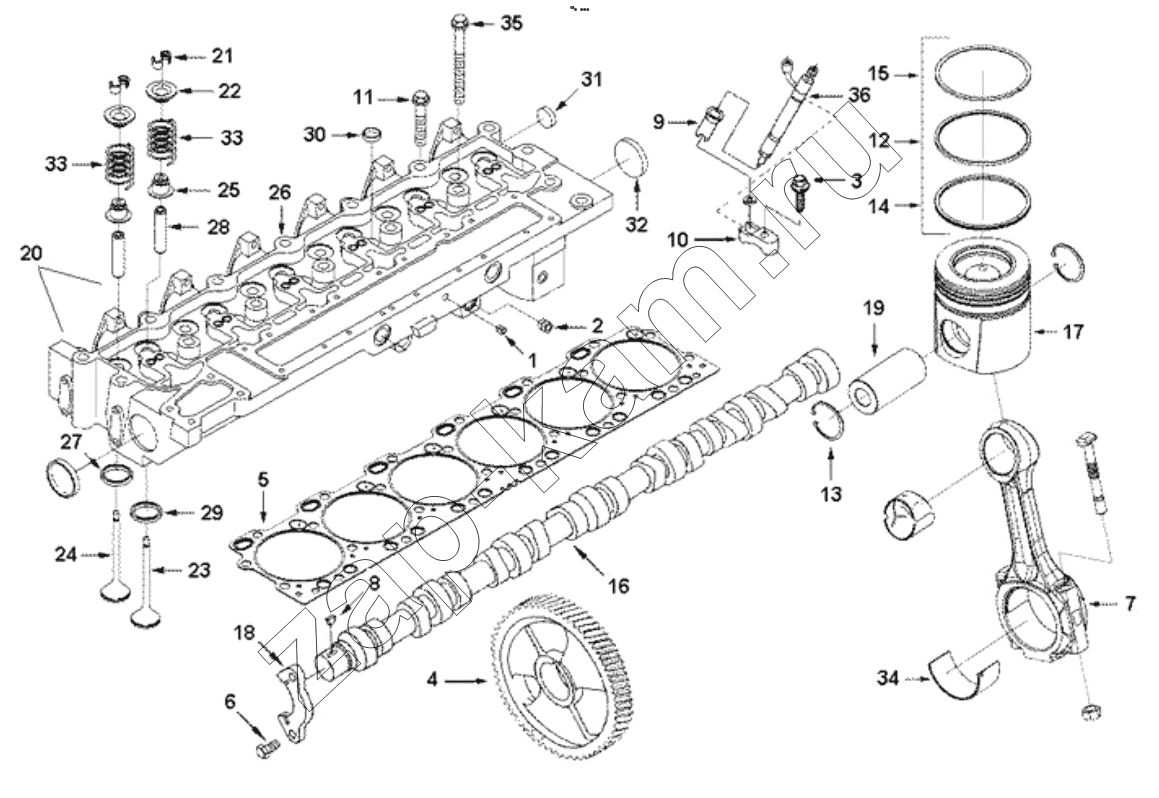

PP40722 Performance Parts
/ DCEC 6CTA8.3-C190-II
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | C3008464 | PLUG, PIPE | 1; | |
| 2 | C3008468 | PLUG, PIPE | 1; | |
| 3 | C3069809 | SCREW, HEX FLANGE HEAD CA | 6; | |
| 4 | C3415430 | GEAR, CAMSHAFT | 1; | |
| 5 | C3415501 | GASKET, CYLINDER HEAD | 1; | |
| 6 | C3900227 | SCREW, HEXAGON HEAD CAP | 2; | |
| 7 | C3901383 | ROD, ENGINE CONNECTING | 6; | |
| 8 | C3902332 | KEY, PLAIN WOODRUFF | 1; | |
| 9 | C3909886 | SEAL, INJECTOR | 6; | |
| 10 | C3910279 | CLAMP, INJECTOR | 6; | |
| 11 | C3917729 | SCREW, HEX FLANGE HEAD CA | 12; | |
| 12 | C3919918 | RING, COMPRESSION PISTON | 6; | |
| 13 | C3920692 | RING, RETAINING | 12; | |
| 14 | C3921919 | RING, OIL PISTON | 6; | |
| 15 | C3922686 | RING, COMPRESSION PISTON | 6; | |
| 16 | C3923478 | CAMSHAFT | 1; | |
| 17 | C3923537 | PISTON, ENGINE | 6; | |
| 18 | C3927155 | SUPPORT, CAMSHAFT THRUST | 1; | |
| 19 | C3934046 | PIN, PISTON | 6; | |
| 20 | C3939346 | HEAD, CYLINDER | 1; | |
| 21 | 3901177 | COLLET, VALVE | 24; | |
| 22 | C3972757 | RETAINER, VALVE SPRING | 12; | |
| 23 | C3921444 | VALVE, EXHAUST | 6; | |
| 24 | C3924492 | VALVE, INTAKE | 6; | |
| 25 | C3927642 | SEAL, VALVE STEM | 12; | |
| 26 | C3973493 | HEAD, CYLINDER | 1; | |
| 27 | 3908830 | INSERT, VALVE | 6; | |
| 28 | 3925863 | GUIDE, VALVE STEM | 12; | |
| 29 | 3970278 | INSERT, VALVE | 6; | |
| 30 | C3914035 | PLUG, EXPANSION | 5; | |
| 31 | C3920443 | PLUG, EXPANSION | 1; | |
| 32 | C3922072 | PLUG, EXPANSION | 2; | |
| 33 | C3991085 | SPRING, VALVE | 12; | |
| 34 | C3950661 | BEARING, CONNECTING ROD | 12; | |
| 35 | C3960043 | SCREW, HEX FLANGE HEAD CA | 14; | |
| 36 | C4948364 | INJECTOR | 6; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
