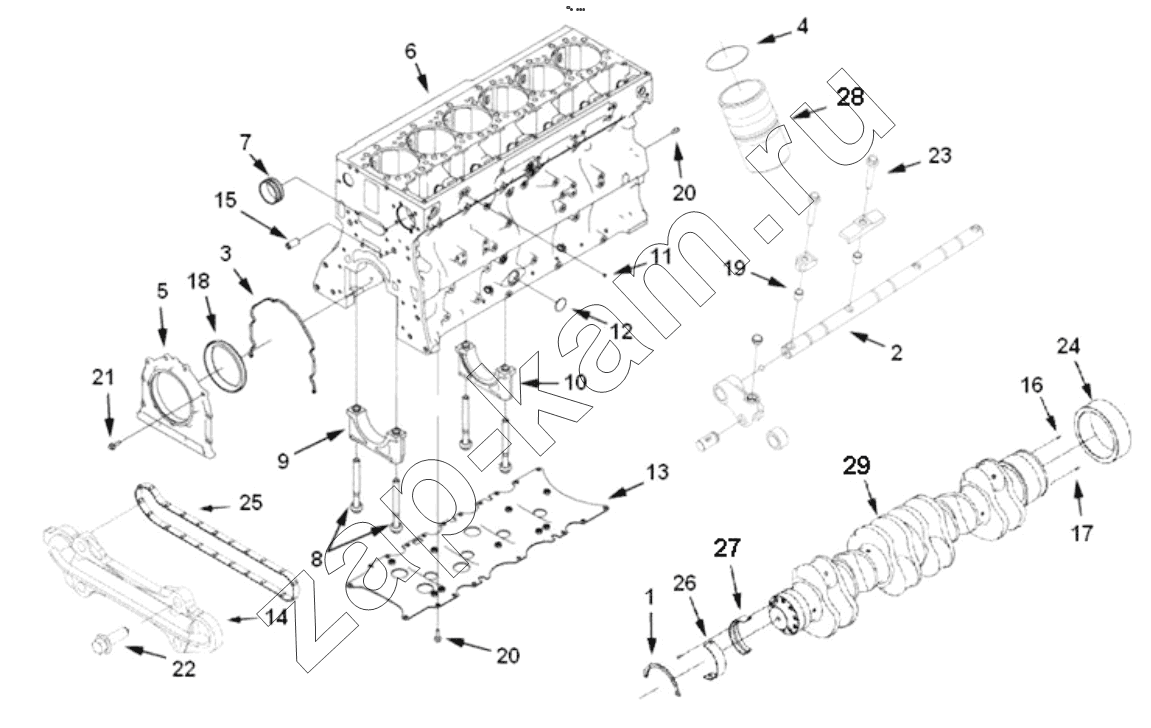

BB 2809 Cylinder block
/ DCEC 6ZTAA13-G2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 2869805 | BEARING, CRANKSHAFT THRUS | 4; | - | |
| 2 | C2869983 | LEVER, CAM FOLLOWER | 2; | - | |
| 3 | C2870121 | SEAL, FRONT COVER | 1; | - | |
| 4 | C2873961 | SEAL, O RING | 6; | - | |
| 5 | C2874044 | CARRIER, SEAL | 1; | - | |
| 6 | C2874066 | BLOCK, CYLINDER | 1; | - | |
| 7 | C2869839 | BUSHING | 7; | - | |
| 8 | C2873989 | SCREW, FRACTURE RESISTANT | 14; | - | |
| 9 | C2884751 | CAP, MAIN BEARING | 6; | - | |
| 10 | C2884752 | CAP, MAIN BEARING | 1; | - | |
| 11 | C3007632 | PLUG, EXPANSION | 2; | - | |
| 12 | C3015865 | PLUG, EXPANSION | 4; | - | |
| 13 | C2883240 | STIFFENER, CYLINDER BLOCK | 1; | - | |
| 14 | C2884766 | COVER, FRONT | 1; | - | |
| 15 | C3100706 | DOWEL, RING | 1; | - | |
| 16 | C3681054 | DOWEL, PIN | 1; | - | |
| 17 | C3681054 | DOWEL, PIN | 1; | - | |
| 18 | C3685173 | SEAL, OIL | 1; | - | |
| 19 | C3900720 | DOWEL, RING | 4; | - | |
| 20 | C3901846 | DOWEL, PIN | 2; | - | |
| 21 | C3903112 | SCREW, HEX FLANGE HEAD CA | 8; | - | |
| 22 | C3903112 | SCREW, HEX FLANGE HEAD CA | 17; | - | |
| 23 | C3903112 | SCREW, HEX FLANGE HEAD CA | 4; | - | |
| 24 | C4960051 | GEAR, CRANKSHAFT | 1; | - | |
| 25 | C4960053 | SEAL, FRONT COVER | 1; | - | |
| 26 | C4999939 | BEARING, MAIN | 7; | - | |
| 27 | C4999940 | BEARING, MAIN | 7; | - | |
| 28 | C4999962 | LINER, CYLINDER | 6; | - | |
| 29 | C4316828 | CRANKSHAFT, ENGINE | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
