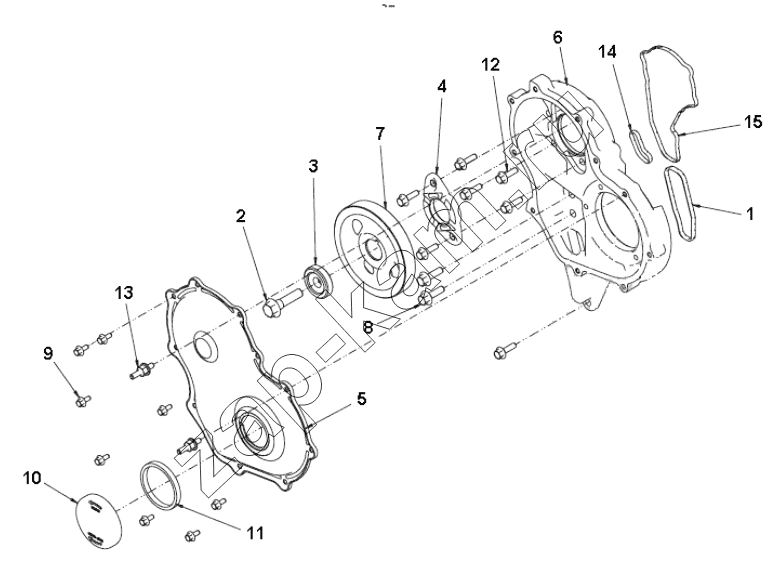

BB 2856 Gear room
/ DCEC 6ZTAA13-G2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | C2864829 | SEAL, GEAR HOUSING | 1; | |
| 2 | C2874077 | SCREW, HEX FLANGE HEAD CA | 1; | |
| 3 | C2874078 | WASHER, PLAIN | 1; | |
| 4 | C2874083 | BEARING, THRUST | 1; | |
| 5 | C2874183 | COVER, GEAR | 1; | |
| 6 | C2874184 | HOUSING, GEAR | 1; | |
| 7 | C2874188 | GEAR, CAMSHAFT | 1; | |
| 8 | C3093939 | SCREW, HEX FLANGE HEAD CA | 2; | |
| 9 | C3900629 | SCREW, HEX FLANGE HEAD CA | 8; | |
| 10 | C3903463 | COVER, ACCESS HOLE | 1; | |
| 11 | C3903475 | SEAL, RECTANGULAR RING | 1; | |
| 12 | C3925344 | SCREW, HEX FLANGE HEAD CA | 7; | |
| 13 | C4929065 | SCREW, STUDDED FLANGE CAP | 2; | |
| 14 | C4975284 | SEAL, GEAR HOUSING | 1; | |
| 15 | C4975285 | SEAL, GEAR HOUSING | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
