FA 2788 Fan drive mounting parts
/ DCEC 6ZTAA13-G2

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 4B3.9-G1 4B3.9-G12 (2018) 4B3.9-G2 (2014) 4BT3.9-G1 (2014) 4BTA3.9-G2 (2014) 6BTAA5.9-G12 (2016) 6CTA8.3-C190-II (2016) 6ZTAA13-G2 (2014) ISZ450 41 (2014) QSZ13-G10 (2021)

Схема > Не выбрано AP 2230 Parameter card BB 2809 Cylinder block BB 2813 Cylinder block pipeline group BB 2833 Front gear chamber set BB 2856 Gear room BR 2070 Crankcase ventilation parts CH 2036 Coolant auxiliary heating group CP 2137 Air compressor cover DA 2131 Torsional vibration shock absorber set EA 2085 Electronic accessories EE 2078 Generator EH 2211 Generator installation parts EM 2089 Engine front suspension bracket set EO 2008 Speed sensor FA 2310 Fan driver FA 2771 Fan drive belt FA 2788 Fan drive mounting parts FF 2300 Fuel filter FF 2811 Fuel line FH 2354 Flywheel shell FI 2001 Fuel inlet device FP 2983 Fuel pump FT20110 Fuel line FW 2344 Flywheel HC 2012 Heater installation parts IC 2132 Air intake connector IC 2704 Air intake connection mounting piece IT 2031 Air outlet connector LA 2087 Engine lug set LB 2007 Label LC 2765 Oil cooler set LF 2091 Full flow oil filter LG 2148 Oil ruler set LP 2715 Oil pump set OB 2588 Oil filling device OP 2156 Oil pan set PP20141 Injector pipeline PP20143 Supercharger PP43715 Performance parts RE 2029 Engine rear suspension bracket RL 2743 Rocker arm RP 2012 Engine coolant in addition to trachea SD 2064 Oil pressure sensor SD 2065 Temperature switch SM 2722 Starter installation kit ST 2072 Starter TB 2423 Supercharger layout TH 2766 Thermostat seat TO 2004 Service tools TP 2877 Supercharger pipeline VC 2122 Valve chamber cover set WI 2005 Inlet pipe connector set WO 2006 Outlet pipe connector set WP 2763 Water pump XS 2098 Exhaust outlet connecting pipe

1

2

3

4

5

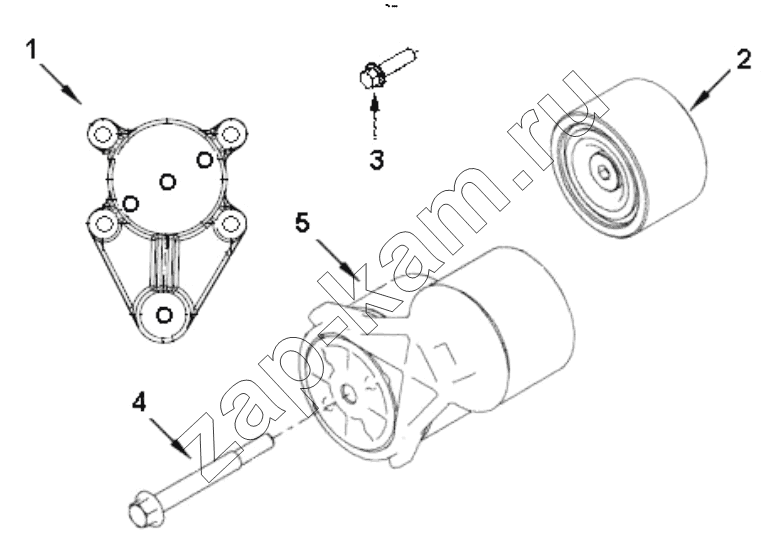

Поз.	Артикул		Название детали	Кол-во	Цена
1	C2873972		SUPPORT, BELT TENSIONE	1;	-
2	C2874071		PULLEY, IDLER	1;	-
3	C3093936		SCREW, HEX FLANGE HEAD CA	1;	-
4	C3903464		SCREW, HEX FLANGE HEAD CA	4;	-
5	C4316726		TENSIONER, BELT	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер

Дополнительная информация

×

Название:

Номер:

Примечание:
