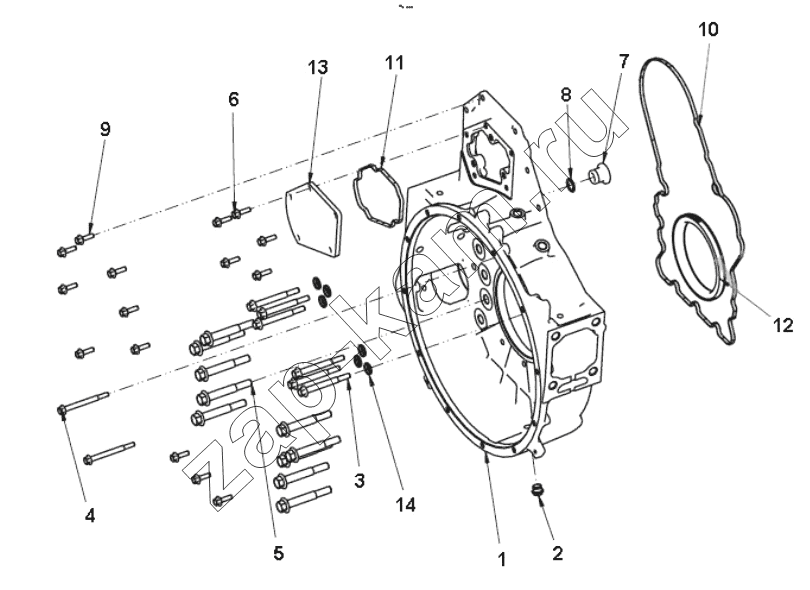

FH 2354 Flywheel shell
/ DCEC 6ZTAA13-G2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | C2874171 | HOUSING, FLYWHEEL | 1; | |
| 2 | C3042004 | PLUG, THREADED | 1; | |
| 3 | C3089188 | SCREW, HEX FLANGE HEAD CA | 6; | |
| 4 | C3093806 | SCREW, HEX FLANGE HEAD CA | 2; | |
| 5 | C3099832 | SCREW, HEX FLANGE HEAD CA | 10; | |
| 6 | C3903112 | SCREW, HEX FLANGE HEAD CA | 5; | |
| 7 | C3910248 | PLUG, O RING | 1; | |
| 8 | C3910260 | SEAL, O RING | 1; | |
| 9 | C3925344 | SCREW, HEX FLANGE HEAD CA | 10; | |
| 10 | C4960126 | SEAL, FLYWHEEL HOUSING | 1; | |
| 11 | C4960139 | GASKET, COVER PLATE | 1; | |
| 12 | C4962603 | SEAL, OIL | 1; | |
| 13 | C4974958 | PLATE, COVER | 1; | |
| 14 | C4999779 | WASHER, SEALING | 6; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
