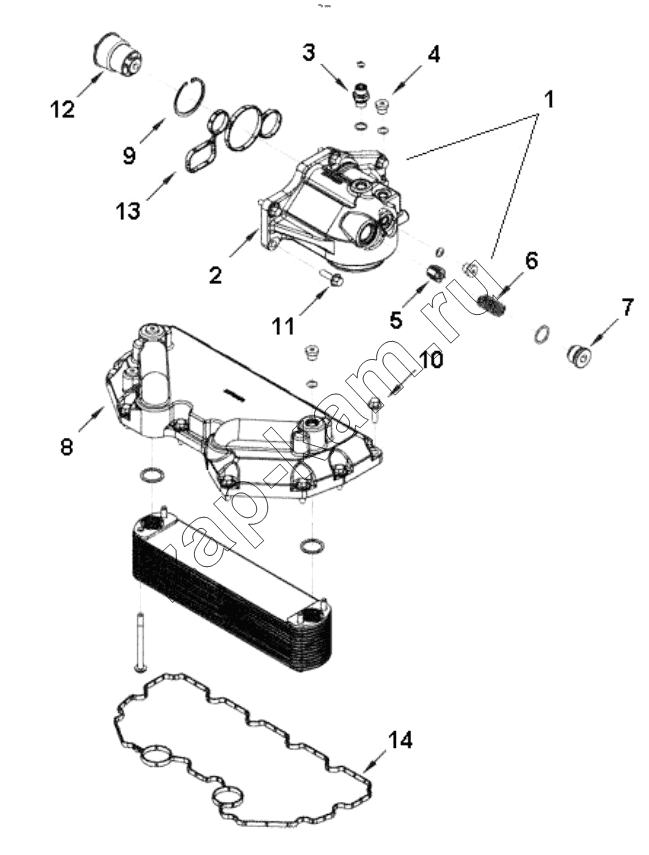

LC 2765 Oil cooler set
/ DCEC 6ZTAA13-G2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | C2870228 | HEAD, LUB OIL FILTER | 1; | |
| 2 | C2870229 | HEAD, LUB OIL FILTER | 1; | |
| 3 | C3090400 | UNION, MALE | 1; | |
| 4 | C3678921 | PLUG, THREADED | 2; | |
| 5 | C3820320 | PLUNGER, BYPASS VALVE | 1; | |
| 6 | C3882586 | SPRING, COMPRESSION | 1; | |
| 7 | C4975311 | PLUG, THREADED | 1; | |
| 8 | C2874093 | HOUSING, OIL COOLER | 1; | |
| 9 | C3411881 | RING, RETAINING | 1; | |
| 10 | C3903112 | SCREW, HEX FLANGE HEAD CA | 14; | |
| 11 | C3903112 | SCREW, HEX FLANGE HEAD CA | 6; | |
| 12 | C4952629 | THERMOSTAT | 1; | |
| 13 | C4960214 | SEAL, OIL FILTER HEAD | 1; | |
| 14 | C4975215 | SEAL, OIL COOLER HOUSING | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
