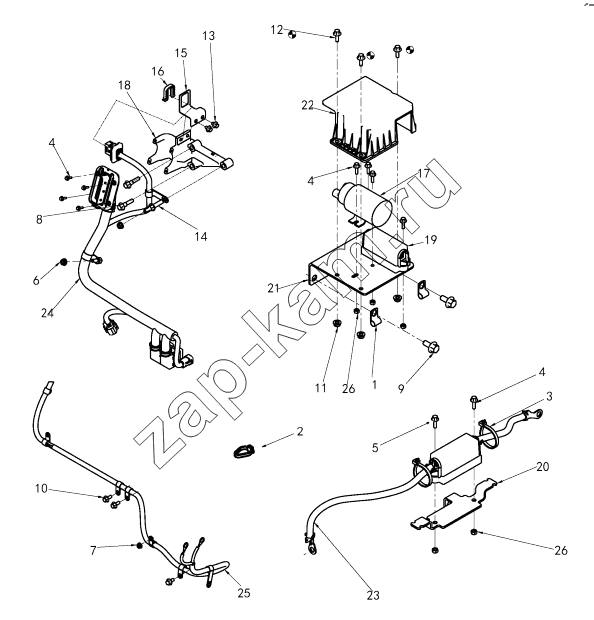

Electronic control module wiring harness
/ DCEC ISZ450 41
1
2
3
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | C180372 | CLIP | 2; | |
| 2 | C201351 | CLAMP, WIRE TIE | 1; | |
| 3 | C3062329 | CLAMP, WIRE TIE | 9; | |
| 4 | C3679118 | SCREW, HEX FLANGE HEAD CA | 4; | |
| 5 | C3679118 | SCREW, HEX FLANGE HEAD CA | 6; | |
| 6 | C3900589 | NUT, HEXAGON FLANGE | 2; | |
| 7 | C3900589 | NUT, HEXAGON FLANGE | 4; | |
| 8 | C3903464 | SCREW, HEX FLANGE HEAD CA | 2; | |
| 9 | C3903990 | SCREW, HEX FLANGE HEAD CA | 2; | |
| 10 | C3903990 | SCREW, HEX FLANGE HEAD CA | 3; | |
| 11 | C3906216 | NUT, HEXAGON FLANGE | 3; | |
| 12 | C3913638 | SCREW, HEX FLANGE HEAD CA | 3; | |
| 13 | C3921742 | SCREW, HEX FLANGE HEAD CA | 2; | |
| 14 | C4062666 | SCREW, HEX FLANGE HEAD CA | 1; | |
| 15 | C4327400 | SUPPORT, ACCESSORY | 1; | |
| 16 | C4327498 | CLIP | 1; | |
| 17 | C4365705 | RELAY | 1; | |
| 18 | C4366064 | SUPPORT, ACCESSORY | 1; | |
| 19 | C4366074 | FUSE | 2; | |
| 20 | C4388875 | BRACKET, CABLE | 1; | |
| 21 | C4388876 | BRACKET, RELAY | 1; | |
| 22 | C4388877 | COVER, COMPONENT | 1; | |
| 23 | C4388878 | HARNESS, WIRING | 1; | |
| 24 | C4388986 | HARNESS, ETR CNT MDL WRG | 1; | |
| 25 | C4389189 | HARNESS, WIRING | 1; | |
| 26 | C4991757 | NUT, REGULAR HEXAGON | 6; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
