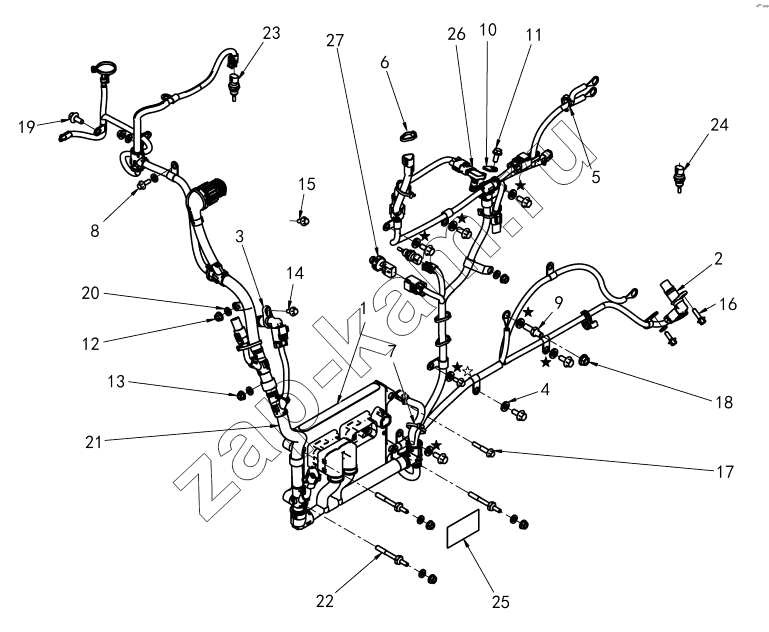

Engine control module
/ DCEC ISZ450 41
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | C4995445 | MODULE, ELECTRONIC CONTRO | 1; | |
| 2 | C2872279 | SENSOR, POSITION | 1; | |
| 3 | C2872279 | SENSOR, POSITION | 1; | |
| 4 | C3036460 | WASHER, SPRING | 8; | |
| 5 | C3062329 | CLAMP, WIRE TIE | 6; | |
| 6 | C3062329 | CLAMP, WIRE TIE | 1; | |
| 7 | C3062329 | CLAMP, WIRE TIE | 1; | |
| 8 | C3093775 | SCREW, HEX FLANGE HEAD CA | 2; | |
| 9 | C3681386 | SCREW, STUDDED HEXAGON CA | 1; | |
| 10 | C3684241 | BRACE, RETAINING | 1; | |
| 11 | C3821783 | SCREW, CAPTIVE WASHER CAP | 1; | |
| 12 | C3900589 | NUT, HEXAGON FLANGE | 4; | |
| 13 | C3900589 | NUT, HEXAGON FLANGE | 3; | |
| 14 | C3900629 | SCREW, HEX FLANGE HEAD CA | 1; | |
| 15 | C3900629 | SCREW, HEX FLANGE HEAD CA | 1; | |
| 16 | C3900631 | SCREW, HEX FLANGE HEAD CA | 1; | |
| 17 | C3901445 | SCREW, HEX FLANGE HEAD CA | 1; | |
| 18 | C3902662 | NUT, HEXAGON FLANGE | 1; | |
| 19 | C3903990 | SCREW, HEX FLANGE HEAD CA | 7; | |
| 20 | C3910266 | WASHER, SPRING | 9; | |
| 21 | C4388985 | HARNESS, ETR CNT MDL WRG | 1; | |
| 22 | C4933208 | SCREW, STUDDED HEXAGON CA | 3; | |
| 23 | C4954905 | SENSOR, TEMPERATURE | 1; | |
| 24 | C4954905 | SENSOR, TEMPERATURE | 1; | |
| 25 | C5267513 | DATAPLATE | 1; | |
| 26 | D2897334 | SENSOR, PRS TEMPERATURE | 1; | |
| 27 | D4921517 | SENSOR, PRESSURE | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
