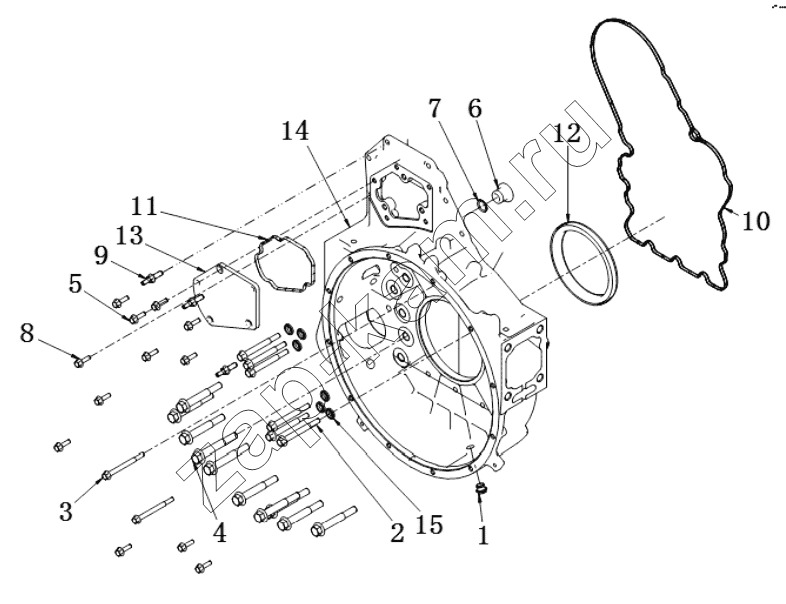

Flywheel housing
/ DCEC ISZ450 41
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | C3042004 | PLUG, THREADED | 1; | |
| 2 | C3089188 | SCREW, HEX FLANGE HEAD CA | 6; | |
| 3 | C3093806 | SCREW, HEX FLANGE HEAD CA | 2; | |
| 4 | C3099832 | SCREW, HEX FLANGE HEAD CA | 10; | |
| 5 | C3903112 | SCREW, HEX FLANGE HEAD CA | 5; | |
| 6 | C3910248 | PLUG, O RING | 1; | |
| 7 | C3910260 | SEAL, O RING | 1; | |
| 8 | C3925344 | SCREW, HEX FLANGE HEAD CA | 7; | |
| 9 | C4026812 | SCREW, STUDDED FLANGE CAP | 3; | |
| 10 | C4960126 | SEAL, FLYWHEEL HOUSING | 1; | |
| 11 | C4960139 | GASKET, COVER PLATE | 1; | |
| 12 | C4962603 | SEAL, OIL | 1; | |
| 13 | C4974958 | PLATE, COVER | 1; | |
| 14 | C4975247 | HOUSING, FLYWHEEL | 1; | |
| 15 | C4999779 | WASHER, SEALING | 6; |
