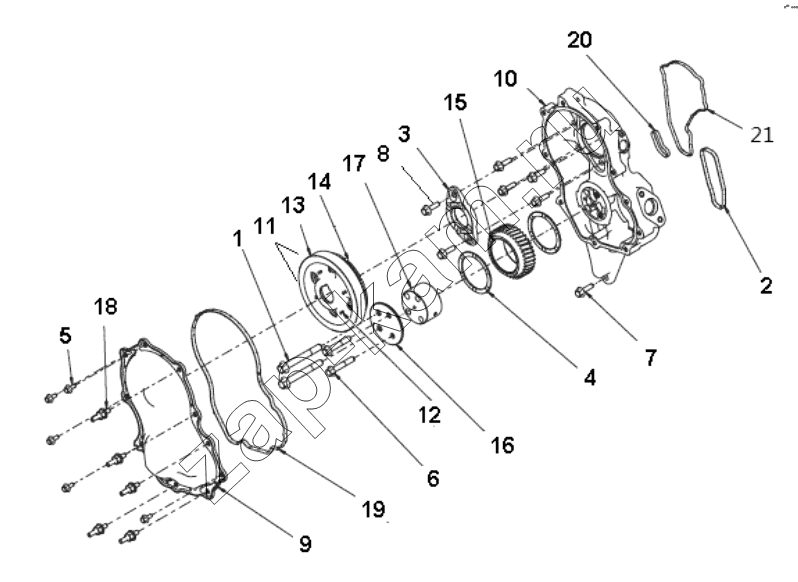

Gear room
/ DCEC ISZ450 41
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 3680437 | SCREW, HEX FLANGE HEAD CA | 2; | - | |
| 2 | C2864829 | SEAL, GEAR HOUSING | 1; | - | |
| 3 | C2874083 | BEARING, THRUST | 1; | - | |
| 4 | C2874329 | BEARING, THRUST | 2; | - | |
| 5 | C3900629 | SCREW, HEX FLANGE HEAD CA | 5; | - | |
| 6 | C3900635 | SCREW, HEX FLANGE HEAD CA | 2; | - | |
| 7 | C3925344 | SCREW, HEX FLANGE HEAD CA | 5; | - | |
| 8 | C3925344 | SCREW, HEX FLANGE HEAD CA | 2; | - | |
| 9 | C4327429 | COVER, GEAR | 1; | - | |
| 10 | C4327431 | HOUSING, GEAR | 1; | - | |
| 11 | C4327434 | GEAR, CAMSHAFT | 1; | - | |
| 12 | C3093921 | SCREW, HEX FLANGE HEAD CA | 4; | - | |
| 13 | C4327561 | GEAR, CAMSHAFT | 1; | - | |
| 14 | C4975198 | PLATE, POSITION SENSOR | 1; | - | |
| 15 | C4327556 | GEAR, IDLER | 1; | - | |
| 16 | C4327563 | RETAINER, GEAR | 1; | - | |
| 17 | C4327564 | SHAFT, IDLER | 1; | - | |
| 18 | C4929065 | SCREW, STUDDED FLANGE CAP | 5; | - | |
| 19 | C4974921 | SEAL, FRONT COVER | 1; | - | |
| 20 | C4975284 | SEAL, GEAR HOUSING | 1; | - | |
| 21 | C4975285 | SEAL, GEAR HOUSING | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
