Oil filling device
/ DCEC ISZ450 41

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 4B3.9-G1 4B3.9-G12 (2018) 4B3.9-G2 (2014) 4BT3.9-G1 (2014) 4BTA3.9-G2 (2014) 6BTAA5.9-G12 (2016) 6CTA8.3-C190-II (2016) 6ZTAA13-G2 (2014) ISZ450 41 (2014) QSZ13-G10 (2021)

Схема > Не выбрано Intake air preheater Parameter card Cylinder Cylinder piping Gear room Gear room Crankcase ventilation Air filter connecting line Air compressor cooling water pipe Air compressor exhaust line Air-conditioning compressor Coolant Auxiliary Heating Air compressor intake arrangement РЎlutch Air compressor Torsional Vibration Damper Location of fuel return line Electronic accessories Engine braking Dynamo Generator mounts Engine front mount bracket Fan drive Fuel return line Fuel Filter Flywheel housing Fuel inlet device Fuel pump Pump Flywheel Heater installation Power steering pump Intake connection Intake connection mount Outlet connection Engine lifting lug Label Oil cooler Full flow oil filter Oil dipstick Oil pump Oil filling device Oil pan Engine control module Injector Line Supercharger Performance piece Engine rear mount bracket Rocker arm Engine coolant degassing pipe Starter mount Starter Supercharger arrangement Thermostat seat Supercharger line Gas valve chamber cover Water inlet connection pipe Water pump drive Water pump Electronic control module wiring harness Harness accessories Exhaust connection

1

2

3

4

5

6

7

8

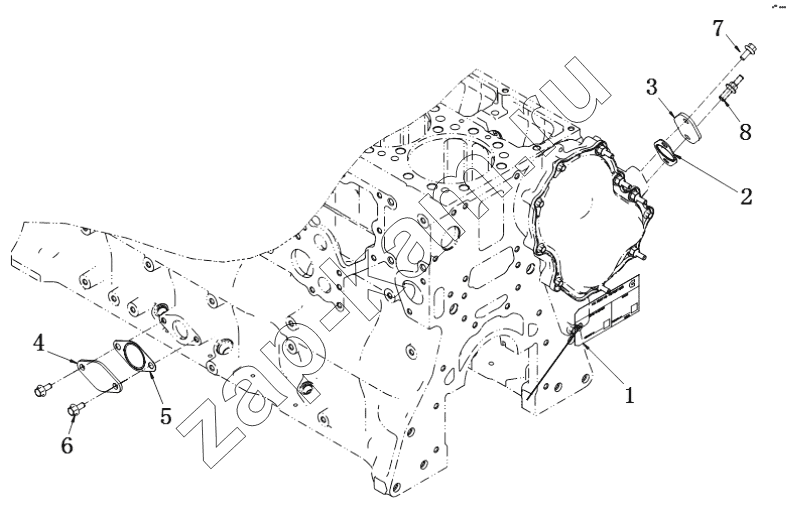

Поз.	Артикул		Название детали	Кол-во
1	3892253		TAG, INSTRUCTION	1;
2	C2864886		GASKET, COVER PLATE	1;
3	C2864887		PLATE, COVER	1;
4	C3680371		PLATE, COVER	1;
5	C3680832		GASKET, COVER PLATE	1;
6	C3903990		SCREW, HEX FLANGE HEAD CA	2;
7	C3903990		SCREW, HEX FLANGE HEAD CA	1;
8	C3944152		SCREW, STUDDED FLANGE CAP	1;
