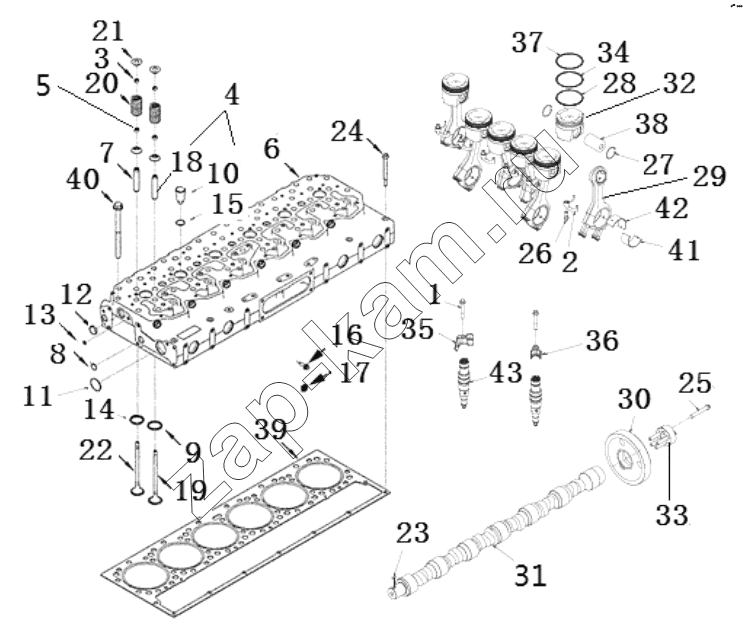

Performance piece
/ DCEC ISZ450 41
1
2
3
4
5
6
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | C2830730 | SCREW, HEX FLANGE HEAD CA | 6; | |
| 2 | C2869962 | NOZZLE, PISTON COOLING | 6; | |
| 3 | 3680883 | COLLET, VALVE | 48; | |
| 4 | C2874075 | HEAD, CYLINDER | 1; | |
| 5 | 4003966 | SEAL, VALVE STEM | 24; | |
| 6 | C2874198 | HEAD, CYLINDER | 1; | |
| 16 | C3935271 | SCREW, HEX FLANGE HEAD CA | 1; | |
| 17 | C4999779 | WASHER, SEALING | 1; | |
| 18 | C3102095 | GUIDE, VALVE SPRING | 24; | |
| 19 | C4365850 | VALVE, INTAKE | 12; | |
| 20 | C4960050 | SPRING, VALVE | 24; | |
| 21 | C4975322 | RETAINER, VALVE SPRING | 24; | |
| 22 | C4999807 | VALVE, EXHAUST | 12; | |
| 23 | C3009953 | KEY, PLAIN WOODRUFF | 1; | |
| 24 | C3093806 | SCREW, HEX FLANGE HEAD CA | 7; | |
| 25 | C3101459 | SCREW, TWELVE POINT CAP | 5; | |
| 26 | C3102136 | SCREW, BANJO CONNECTOR | 6; | |
| 27 | C3820782 | RING, RETAINING | 12; | |
| 28 | C4316887 | RING, OIL PISTON | 6; | |
| 29 | C4327409 | ROD, ENGINE CONNECTING | 6; | |
| 30 | C4327645 | GEAR, CAMSHAFT | 1; | |
| 31 | C4365899 | CAMSHAFT | 1; | |
| 32 | C4365930 | PISTON, ENGINE | 6; | |
| 33 | C4365966 | PLATE, CLAMPING | 1; | |
| 34 | C4959949 | RING, COMPRESSION PISTON | 6; | |
| 35 | C4974970 | CLAMP, INJECTOR | 3; | |
| 36 | C4974971 | CLAMP, INJECTOR | 3; | |
| 37 | C4974985 | RING, COMPRESSION PISTON | 6; | |
| 38 | C4975036 | PIN, PISTON | 6; | |
| 39 | C4975249 | GASKET, CYLINDER HEAD | 1; | |
| 40 | C4975321 | SCREW, HEX FLANGE HEAD CA | 38; | |
| 41 | C4999948 | BEARING, CONNECTING ROD | 6; | |
| 42 | C4999949 | BEARING, CONNECTING ROD | 6; | |
| 43 | D2872544 | INJECTOR | 6; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
