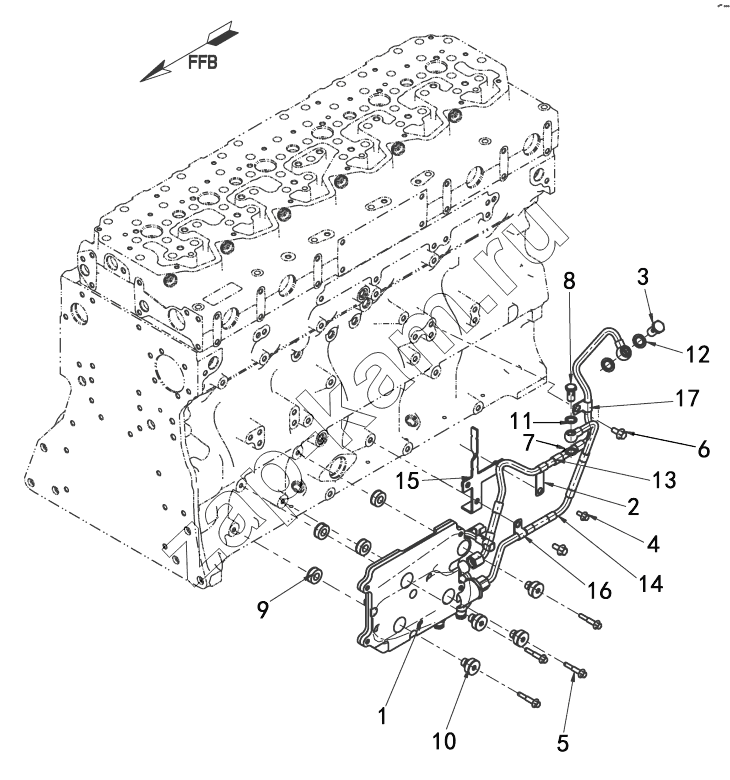

Pump
/ DCEC ISZ450 41
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | C2874567 | PUMP, FUEL TRANSFER | 1; | |
| 2 | C2874597 | CLIP | 1; | |
| 3 | C3866026 | SCREW, BANJO CONNECTOR | 1; | |
| 4 | C3900629 | SCREW, HEX FLANGE HEAD CA | 1; | |
| 5 | C3901445 | SCREW, HEX FLANGE HEAD CA | 4; | |
| 6 | C3903990 | SCREW, HEX FLANGE HEAD CA | 2; | |
| 7 | C3918192 | WASHER, SEALING | 1; | |
| 8 | C3924725 | SCREW, BANJO CONNECTOR | 1; | |
| 9 | C3955219 | ISOLATOR, VIBRATION | 4; | |
| 10 | C3955220 | ISOLATOR, VIBRATION | 4; | |
| 11 | C3963988 | WASHER, SEALING | 1; | |
| 12 | C3963991 | WASHER, SEALING | 2; | |
| 13 | C4327635 | TUBE, FUEL SUPPLY | 1; | |
| 14 | C4327636 | TUBE, FUEL SUPPLY | 1; | |
| 15 | C4327637 | BRACE, TUBE | 1; | |
| 16 | C68152 | CLIP | 1; | |
| 17 | C68152 A | CLIP | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
