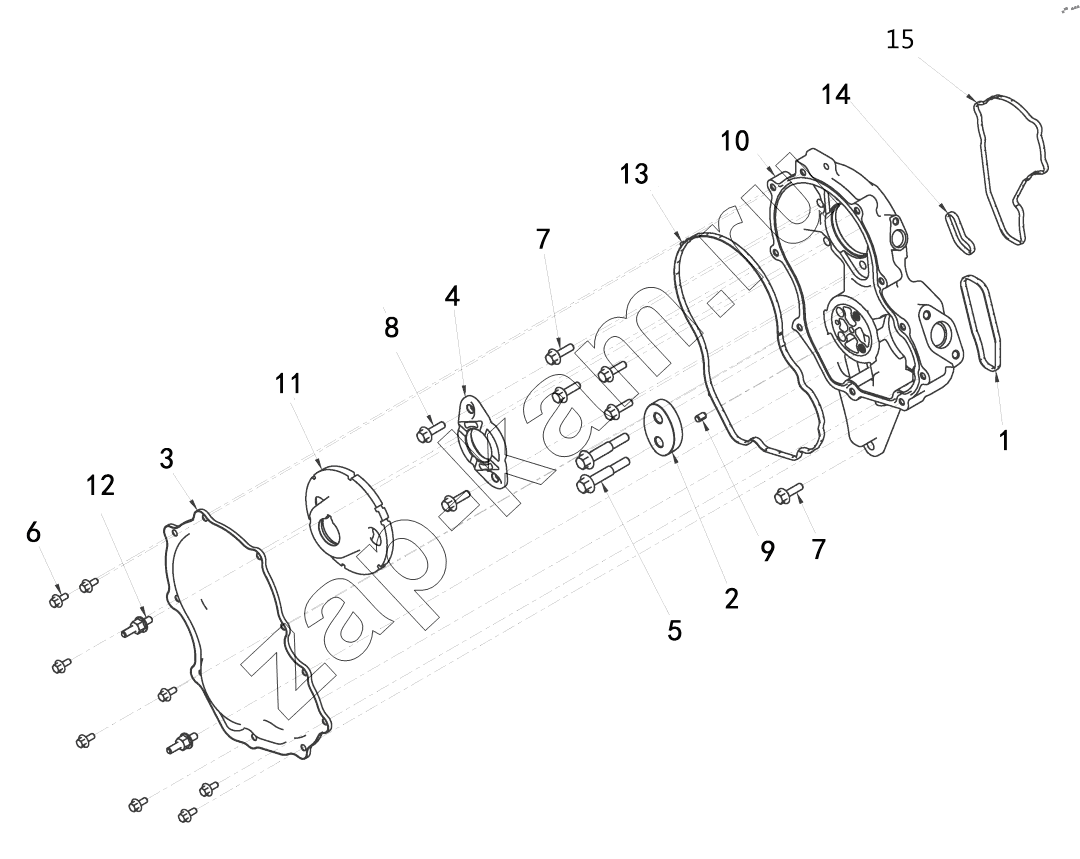

BB 2841 Gear chamber
/ DCEC QSZ13-G10
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | C2864829 | SEAL, GEAR HOUSING | 1; | - | |
| 2 | C2874076 | PLATE, OIL SEAL | 1; | - | |
| 3 | C2874079 | COVER, GEAR | 1; | - | |
| 4 | C2874083 | BEARING, THRUST | 1; | - | |
| 5 | C3681065 | SCREW, HEX FLANGE HEAD CAP | 2; | - | |
| 6 | C3900629 | SCREW, HEX FLANGE HEAD CA | 8; | - | |
| 7 | C3925344 | SCREW, HEX FLANGE HEAD CA | 5; | - | |
| 8 | C3925344 | SCREW, HEX FLANGE HEAD CA | 2; | - | |
| 9 | C3954111 | DOWEL, RING | 1; | - | |
| 10 | C4327431 | HOUSING, GEAR | 1; | - | |
| 11 | C4365698 | ADAPTER, POSITION SENSOR | 1; | - | |
| 12 | C4929065 | SCREW, STUDDED FLANGE CAP | 1; | - | |
| 13 | C4974921 | SEAL, FRONT COVER | 1; | - | |
| 14 | C4975284 | SEAL, GEAR HOUSING | 1; | - | |
| 15 | C4975285 | SEAL, GEAR HOUSING | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
