WP 2772 Water pump
/ DCEC QSZ13-G10

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано 4B3.9-G1 4B3.9-G12 (2018) 4B3.9-G2 (2014) 4BT3.9-G1 (2014) 4BTA3.9-G2 (2014) 6BTAA5.9-G12 (2016) 6CTA8.3-C190-II (2016) 6ZTAA13-G2 (2014) ISZ450 41 (2014) QSZ13-G10 (2021)

Схема > Не выбрано AH 2018 Intake air preheater AP 2167 Parameter plate AP 2715 Label BB 2809 Cylinder BB 2813 Cylinder pipeline BB 2841 Gear chamber BB 2883 Gear chamber BR 2070 Crankcase ventilation parts CH 2036 Coolant auxiliary heating CP 2126 Air compressor DA 2167 Torsional vibration absorber DL 2041 Fuel return pipe location EE 2078 Alternator EH 2211 Generator mounting parts EM 2089 Engine front mounting bracket FA 2310 Fan driver FA 2788 Fan drive mounting hardware FA 2878 Fan drive belt FD 2726 Fuel return line FF 2384 Fuel Filter FH 2368 Flywheel housing FI 2001 Fuel inlet device FP20013 Fuel pump FS 2114 Oil supply system accessories FW 2350 Flywheel HC 2012 Heater installation parts IC 2145 Air intake connector IC 2705 Air intake connection fittings IT 2035 Air outlet connector LA 2087 Engine lifting lugs LB 2007 Label LC 2778 Oil cooler LF 2144 Full flow oil filter LG 2196 Oil dipstick LP 2716 Oil pump OB 2579 Oil adding device OP 2180 Oil pan PH27001 Engine control module PP20098 Injector line PP45702 Performance parts RL 2735 Rocker arm RP 2012 Engine coolant degassing pipe SM 2722 Starter mounting parts ST 2088 Starter TH 2766 Thermostat seat TP 2872 Supercharger pipeline VC 2134 Gas valve chamber cover WI 2005 Water inlet connecting pipe WO 2006 Water outlet connector WP 2772 Water pump WR 2778 Wiring harness accessories XS 2102 Exhaust connector

1

2

3

4

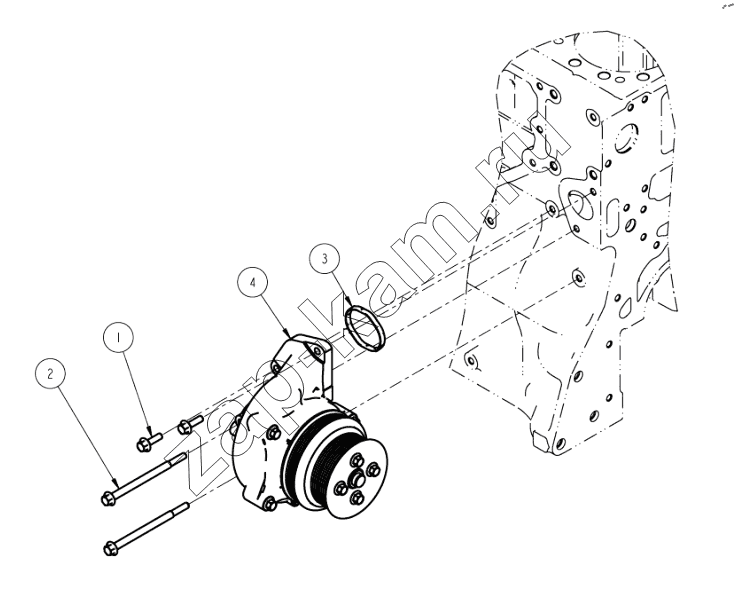

Поз.	Артикул		Название детали	Кол-во
1	C3903112		SCREW, HEX FLANGE HEAD CA	2;
2	C3904987		SCREW, HEX FLANGE HEAD CA	2;
3	C4974918		SEAL, WATER PUMP HOUSING	1;
4	C5580051		PUMP, WATER	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
