ENGINE MOUNTING
/ Deutz BF6L914C

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано BF6L914C (2004) BF6M1013 BF6M1013E (2002) LKSR (2006)

Схема > Не выбрано FASTENINGS LOCK FASTENINGS TENSIONING PULLEY GUIDE BLANKING PARTS CRANKCASE BREATHER BLANKING PARTS IDLER BEARING DIPSTICK CRANKCASE FRONT COVER NOZZLE OIL PAN CYLINDER FLYWHEEL V-GROOVED PULLEY CRANKSHAFT CONNECTING ROD PISTON FASTENINGS VALVE MECHAN.COVER CYLINDER HEAD CAMSHAFT VALVE DRIVE PROTECTING TUBE LUBRICAT. OIL PUMP BYPASS LINE MATING PART LUBRIC. OIL COOLER FILTER CARTRIDGE SUPPORT OIL SUCTION LINE PRESSURE OIL LINE LUBRICAT. OIL LINE FUEL INJECT. PUMP PIPELINE TIMING DEVICE FUEL INJECTOR FILTER CARTRIDGE OVERFLOW LINE HIGH PRESSURE PIPE FUEL LINE BATH AIR CLEANER ELBOW CONNECTOR PRECLEANER ELBOW CONNECTOR BATH AIR CLEANER FASTENINGS CHARGE AIR PIPE SPEED ADJUSTMENT BLANKING PARTS COOLING FAN SET NARROW V-BELTS AIR COWLING BASE COOL.AIR FEED DUCT COOLING AIR BAFFLE AIR DUCT WALL AIR GUIDE STRIP AIR DUCT WALL AIR GUIDE HOOD EXHAUST MANIFOLD THREE-HOLE FLANGE SEALING RING EXHAUST MANIFOLD RETURN LINE TURBOCHARGER COOLING AIR BAFFLE LUBRICAT. OIL LINE BLANKING PARTS DRIVING PARTS NARROW V-BELT FASTENINGS GENERATOR PARTS OF ALTERNAT. STARTER MATING PART ENGINE MOUNTING ELECTR.INSTALLAT. PLUG STOP SWITCH MOUNT. CABLE HARNESS TEMPER.MEASUREMENT PRESSURE SENSOR ACCESSORIES CONNECTION HOUSING COVER PLATE ELECTROMAGNET MAGNET/SOLENOID CHARGE AIR COOLER BLANKING PARTS KIT CYLINDER UNIT

1

1

4

5

6

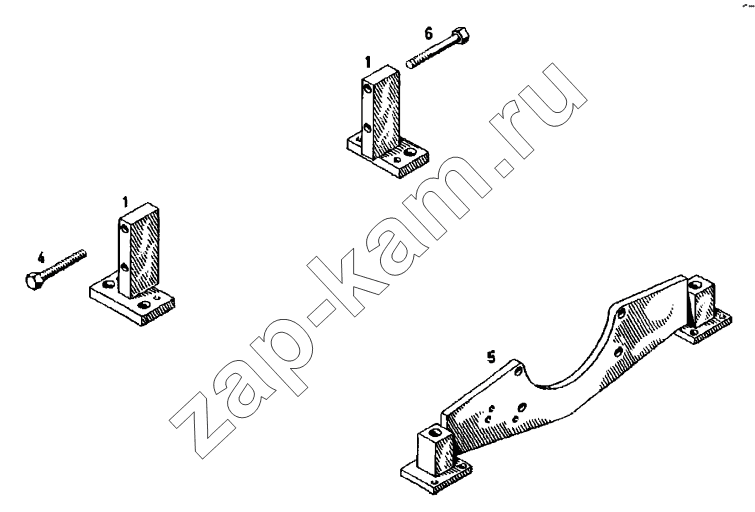

Поз.	Артикул		Название детали	Кол-во
1	0336 4025		ANGLE PLATE	002;
4	0111 1540		HEXAGON BOLT	002;
5	0216 3215		CROSS BEAM	001;
6	0111 1514		HEXAGON BOLT	002;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
