CONNECTION HOUSING
/ Deutz BF6M1013

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано BF6L914C (2004) BF6M1013 BF6M1013E (2002) LKSR (2006)

Схема > Не выбрано ENGINE ASSEMBLY FUEL TANK ASSEMBLY RADIATOR ASSEMBLY PISTON COOL.NOZZLE CRANKSHAFT CONNECTING ROD CROSS REFER. LIST VALVE DRIVE OIL FILLER NECK VENT-PIPE CRANKCASE PRESSURESTAT ROCKER ARM AND ROCKER ARM SUPPORT (MIDDLE) ASSEMBLY ROCKER ARM AND ROCKER ARM SUPPORT (FRONT) ASSEMBLY ROCKER ARM AND ROCKER ARM SUPPORT (REAR) ASSEMBLY FASTENINGS CYLINDER HEAD BLANKING PARTS ROLLER TAPPET FUEL INJECT. PUMP FASTENINGS FASTENINGS FRONTCOVER-OILPUMP CAMSHAFT HIGH PRESSURE PIPE FASTENINGS FUEL INJECTOR FASTENINGS OIL COOLER BOX BLANKING PARTS BLANKING PARTS ACCESSORIES PRESSURESTAT RUBBER SEAL TURBOCHARGER BLANKING PARTS BLANKING PARTS LUBRICAT. OIL LINE LUBRICAT. OIL LINE FASTENINGS EXHAUST PIPE COVER CHARGE AIR PIPE HEATING FLANGE BLANKING PARTS FASTENINGS CONNECTION HOUSING CONNECTION HOUSING GENERATOR DRIVING PARTS NARROW V-BELT FAN SUPPORT FASTENINGS FAN BRACKET FASTENINGS FUEL SUPPLY PUMP FASTENINGS FUEL FILTER BASE ASSEMBLY FUEL LINE LOGIC ASSEMBLY FLANGE TENSION PULLEY DEVICE DIAGRAM (WITH BRACKET) FASTENER-TENSION PULLEY CRANKSHAFT PULLEY DEVICE NARROW V-BELT SET NARROW V-BELTS BLANKING PARTS BLANKING PARTSB BLANKING PARTS GEARCASE PLUG VALVE MECHAN.COVER LUBRIC. OIL FILTER FASTENINGS WATER THERMOSTAT GUIDE TUBE OIL GAUGE OIL PAN OIL SUCTION PIPE FLYWHEEL CRANKCASE BREATHER ENGINE MOUNTING STARTER FASTENINGS BLANKING PARTS BLANKING PARTS HITCH LUG CONTROL UNIT PRESSURE SENSOR CABLE HARNESS BLANKING PARTS RELAY IMPULSETRANSMITTER FUEL LINE TACHO-GENERATOR FASTENINGS FASTENINGS VIBRATION DAMPER COOLING WATER LINE LUBRICAT. OIL LINE COMPRESSOR

1

2

3

4

5

6

7

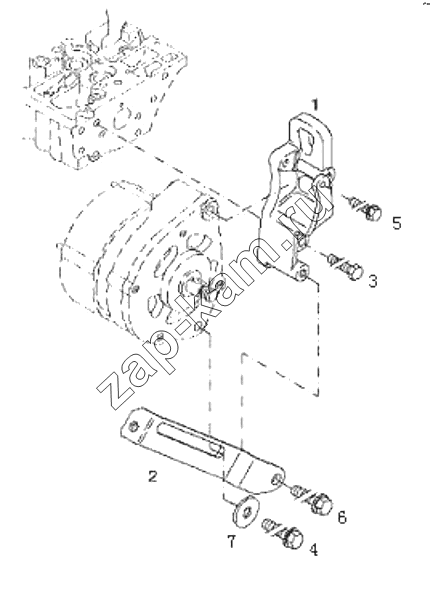

Поз.	Артикул		Название детали	Кол-во	Цена
1	4110000970120		Bracket	1;	-
2	4110001009038		Clamping strap	1;	-
3	4110000970129		Hexagon bolt	4;	-
4	4110001007064		Hexagon bolt	1;	-
5	4110000727035		Hexagon bolt	1;	-
6	4110000509208		Hexagon bolt	1;	-
7	4110000509209		Plain washer	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
