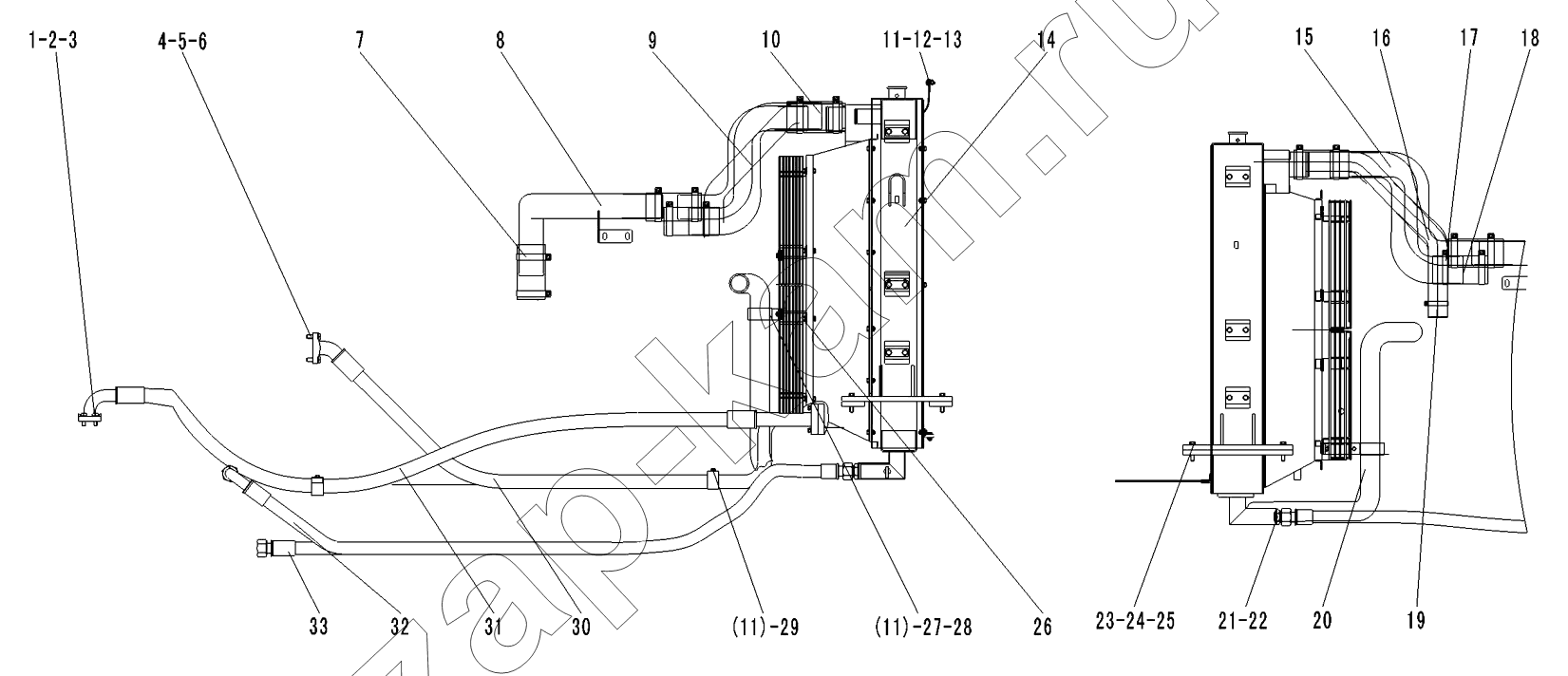

RADIATOR ASSEMBLY
/ Deutz BF6M1013
1
2
3
4
5
6
7
8
9
10
11
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 4011000475 | Bolt | 4; | |
| 2 | 4030000029 | O-ring | 1; | |
| 3 | 4041000027 | Flange lgb117312551 | 1; | |
| 4 | 4011000477 | Bolt | 12; | |
| 5 | 4030000130 | O-ring | 3; | |
| 6 | 4041000011 | Flange | 3; | |
| 7 | 4110000782 | Hoop t shape | 8; | |
| 8 | 29030012811 | Intercooler intake pipe assembly | 1; | |
| 9 | 29030013731 | Intercooled admission pipe | 1; | |
| 10 | 29030010341 | Pipe | 4; | |
| 11 | 4011000458 | Bolt | 9; | |
| 12 | 29030009721 | Rubber plate | 1; | |
| 13 | 29030009601 | Press plate | 2; | |
| 14 | 4110001037 | Radiator | 1; | |
| 15 | 29030013741 | Intercooled escape pipe | 1; | |
| 16 | 29030012971 | Radiator water inlet pipe | 1; | |
| 17 | 4019000074 | T-anchor ear | 2; | |
| 18 | 29030012861 | Air outlet connecting pipe | 1; | |
| 19 | 4017000018 | Hose clamp | 4; | |
| 20 | 29030012871 | Radiator to engine water pipe | 1; | |
| 21 | 29030008271 | Fitting | 2; | |
| 22 | 4015000073 | Washer | 2; | |
| 23 | 4011000027 | Bolt | 4; | |
| 24 | 4015000026 | Washer | 4; | |
| 25 | 4015000168 | Washer | 4; | |
| 26 | 4011000447 | Bolt | 1; | |
| 27 | 29030012891 | Bracket | 1; | |
| 28 | 29030012901 | Pipe clamp | 1; | |
| 29 | 29030000041 | Clamp | 3; | |
| 30 | 29030000021 | Hose | 1; | |
| 31 | 29030009531 | Inlet hose of radiator | 1; | |
| 32 | 4041001152 | Hose | 1; | |
| 33 | 4041001037 | Soft hose | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
