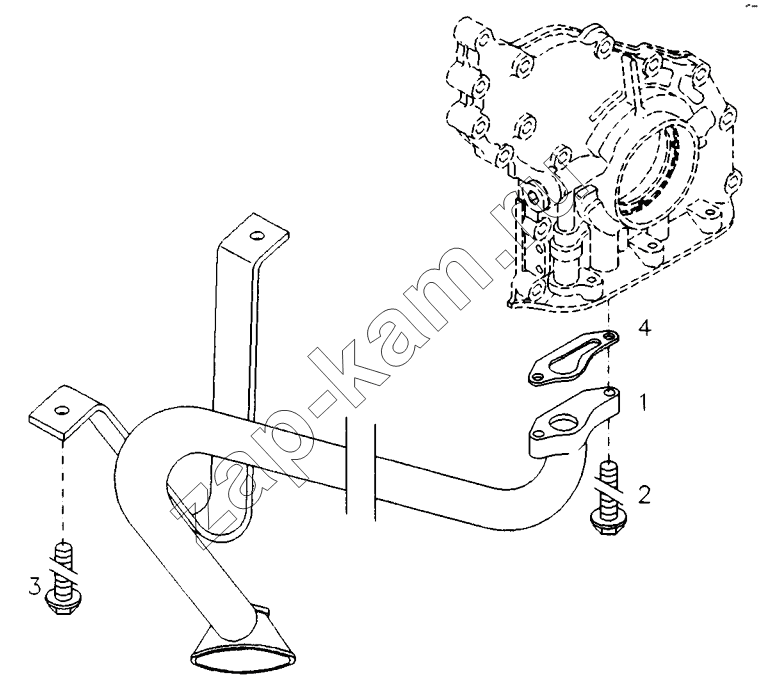

OIL SUCTION PIPE
/ Deutz BF6M1013E

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано BF6L914C (2004) BF6M1013 BF6M1013E (2002) LKSR (2006)

Схема > Не выбрано OIL FILLER NECK FASTENINGS GUIDE TUBE DIPSTICK OIL GAUGE PRESSURESTAT CRANKCASE BREATHER BLEEDING TUBE PISTON COOL.NOZZLE CRANKCASE FRONT COVER OIL PAN ACCESSORIES V-BELT PULLEY ASSY CRANKSHAFT FLANGE VIBRATION DAMPER FASTENINGS FLYWHEEL CONNECTING ROD PISTON FASTENINGS FASTENINGS FASTENINGS VALVE MECHAN.COVER ENGINE MOUNTING BLANKING PARTS CYLINDER HEAD GEARCASE CAMSHAFT ROCKER ARM BRACKET ROCKER ARM BRACKET ROCKER ARM BRACKET FASTENINGS VALVE DRIVE FILTER CARTRIDGE BLANKING PARTS PLASTIC SECTION FASTENINGS OIL COOLER BOX OIL SUCTION PIPE ROLLER TAPPET FASTENINGS FUEL INJECT. PUMP FASTENINGS FUEL INJECTOR FASTENINGS MATING PART MATING PART FUEL PUMP SPIN-ON FILTER SUPPLY PUMP FUEL PREFILTER FUEL LINE OVERFLOW LINE HIGH PRESSURE PIPE COVER MANIFOLD FASTENINGS CHARGE AIR PIPE CHARGE AIR PIPE PLUG FASTENINGS ASSEMBLY CONTROLLER FASTENINGS CONTROL ROD IDLER GEAR GENERATOR MOUNTING INLET MANIFOLD NARROW V-BELT DRIVING PARTS CONNECTION BREATHER LINE FASTENINGS MANIFOLD FASTENINGS FASTENINGS FASTENINGS FASTENINGS TENSIONING PULLEY V-GROOVED PULLEY FAN SUPPORT FAN BRACKET SET NARROW V-BELTS EXHAUST MANIFOLD THREE-HOLE FLANGE SEALING RING EXHAUST PIPE BLANKING PARTS LUBRICAT. OIL LINE TURBOCHARGER FASTENINGS STARTER ACCESSORIES ACCESSORIES BLANKING PARTS SENSOR PRESSURE SENSOR PLUG-IN CONNECTOR COVER PLATE INTERCONNECT.CABLE FASTENINGS TEMPER.TRANSMITTER TEMPERATURE GAUGE ADAPTER RING FASTENINGS BUSH COVER PLATE CONNECTION HOUSING ACCESSORIES SHUTDOWN DEVICE SWITCHING DEVICE GLOW PLUG BLANKING PARTS BLANKING PARTS BLANKING PARTS COOLSYST.PROTECT. GASKET SET

1

2

3

4

Поз.	Артикул		Название детали	Кол-во	Цена
1	0425 6591		OIL SUCTION PIPE	1;	-
2	0118 1416		HEXAGON BOLT	2;	-
3	0118 1436		HEXAGON BOLT	2;	-
4	0419 8741		GASKET	1;	-

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
