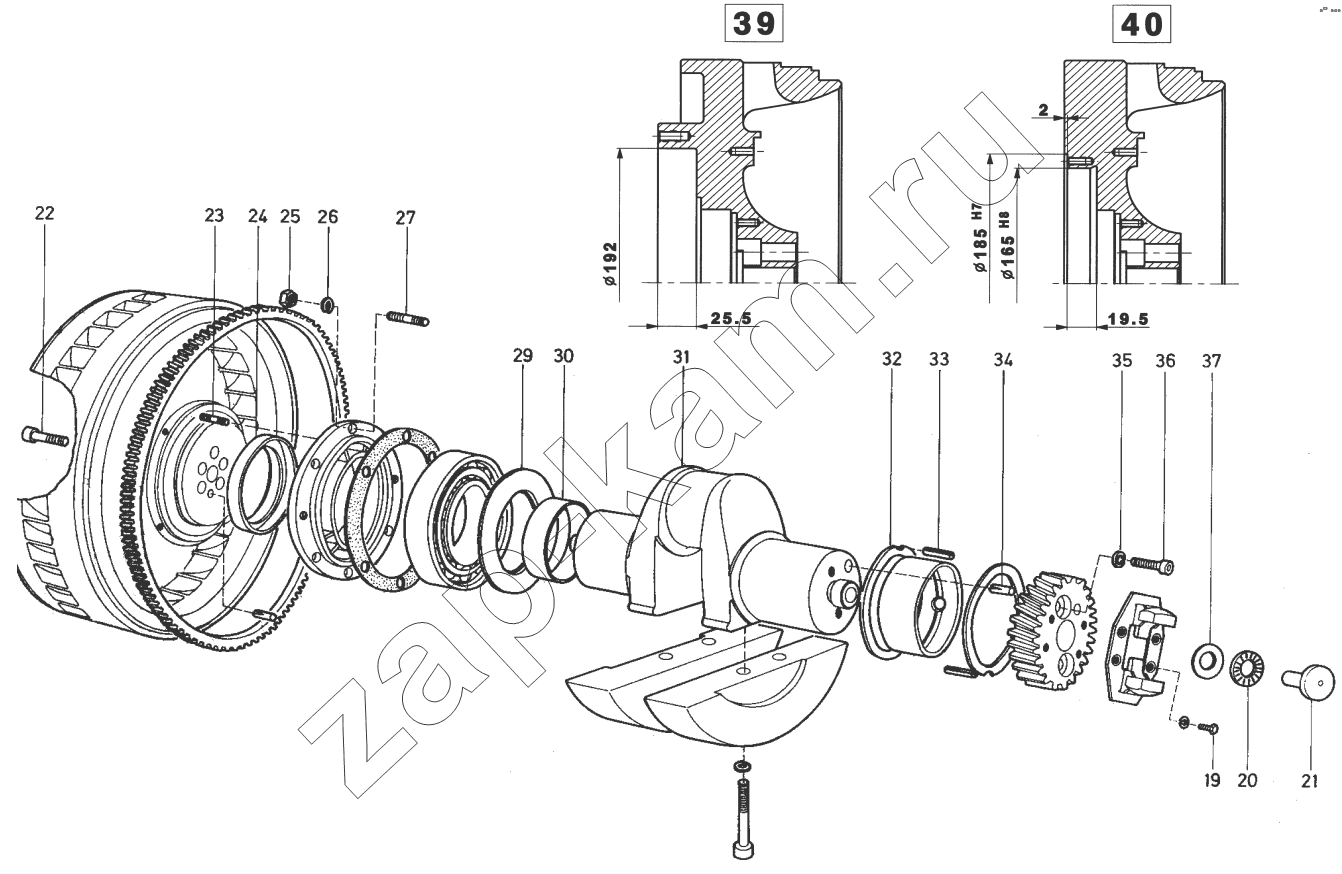

Crankshaft
/ Deutz LKSR
19
20
21
22
23
24
25
26
27
27
29
30
31
32
33
34
35
36
37
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 19 | 60200.05.2.0615 | Hexagon screw | 4; | |
| 20 | 90324.09.1.1024 | Beedle bearing | 1; | |
| 21 | 99871.300.007.4 | Governor Shaft | 1; | |
| 22 | 60200.71.0.1255 | Cheese head screw | 5; | |
| 23 | 60201.10.0.0612 | Stud | 3; | |
| 24 | 91496.12.1.0603 | Radial packig ring | 1; | |
| 25 | 60210.05.4.0080 | Hexagon nut | 6; | |
| 26 | 60216.01.0.0080 | Lock washer | 6; | |
| 27 | 60201.10.2.0820 | Stud | 6; | |
| 27 | 60201.10.2.0828 | Stud | 6; | |
| 29 | 101.061.02.00 | Washer | 1; | |
| 30 | 99871.331.001.4 | Bush | 1; | |
| 31 | 99871.140.001.4 | Crankshaft | 1; | |
| 32 | 6987.433.001.4 | Bearing ring | 1; | |
| 33 | 60220.15.0.0316 | Clamping sleeve | 1; | |
| 34 | 91220.15.1.0820 | Dowel | 1; | |
| 35 | 60216.01.5.0080 | Lock washer | 2; | |
| 36 | 60200.70.2.0825 | Cheese head screw | 2; | |
| 37 | 90324.09.5.1024 | Thrust washer | 1; | |
| 38 | 99871.145.125.5 | Flywheei with gear wheel | 1; | |
| 38 | 99871.145.025.4 | Flywheel | 1; | |
| 39 | 99871.145.027.4 | Flywheel | 1; | |
| 39 | 99871.145.127.5 | Flywheei with gear wheel | 1; | |
| 40 | 99871.145.028.4 | Flywheel | 1; | |
| 40 | 99871.145.028.5 | Flywheei with gear wheel | 1; |
