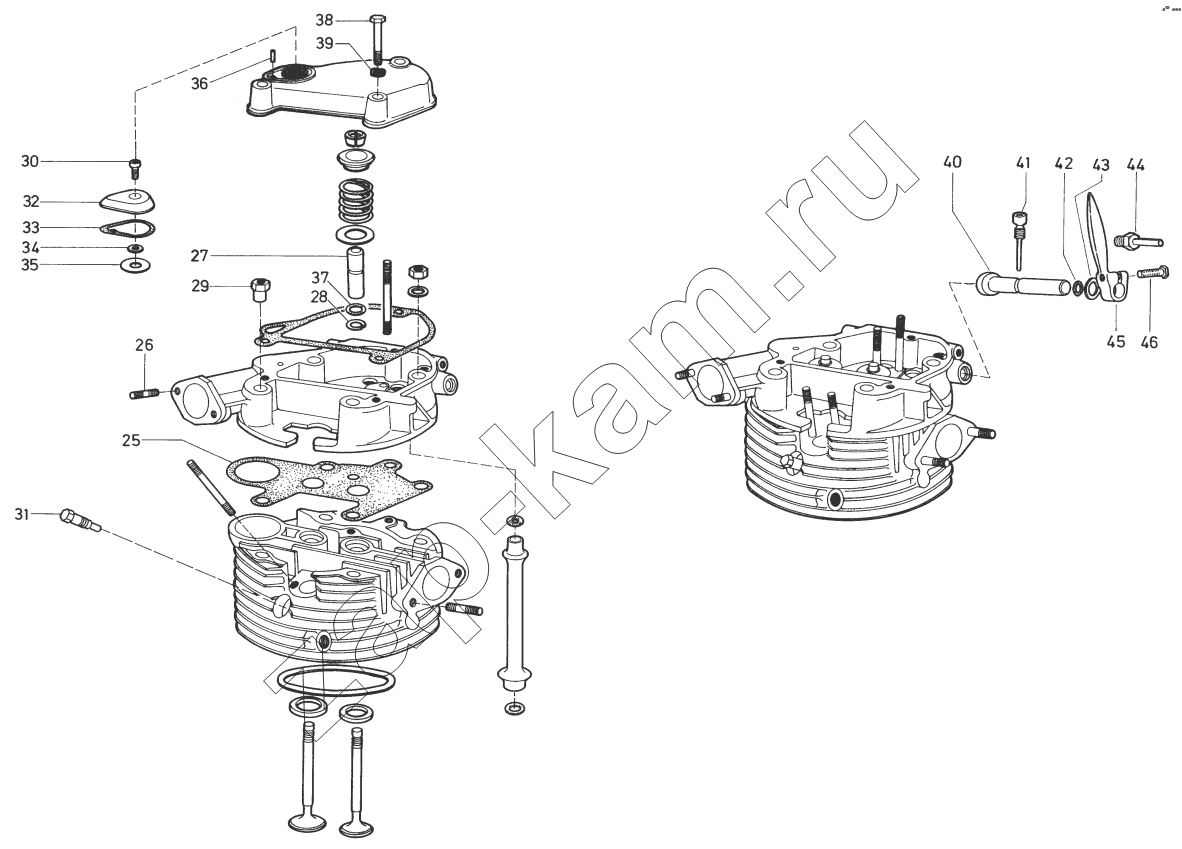

Cylinder head with cylinder head cover
/ Deutz LKSR
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 25 | 69870.853.002.4 | Shaped gasket | 1; | |
| 26 | 60201.20.2.0815 | Stud | 2; | |
| 27 | 69870.332.001.4 | Valve guide | 2; | |
| 28 | 63250.991.001.4 | Locking ring | 2; | |
| 29 | 63060.360.001.4 | Hexagon nut | 2; | |
| 30 | 60200.70.2.0514 | Cheese head screw | 1; | |
| 31 | 99871.352.002.4 | Thrraded plug | 1; | |
| 32 | 99861.787.002.4 | Valve cover | 1; | |
| 33 | 99861.853.003.4 | Shaped gasket | 1; | |
| 34 | 60492.01.0.1013 | Packing ring | 1; | |
| 35 | 63020.861.001.4 | Diaphragm | 1; | |
| 36 | 60220.22.0.3008 | Notched pin | 1; | |
| 37 | 000.954.03.00 | Round packing ring | 2; | |
| 38 | 60200.01.0.0845 | Hexagon screw | 3; | |
| 39 | 60216.03.1.0080 | Spring washer | 3; | |
| 40 | 101.087.00.00 | Pressure reduction shaft | 1; | |
| 41 | 99871.350.001.5 | Hexagon screw with pivot pin | 1; | |
| 42 | 000.954.00.00 | Round packing ring | 1; | |
| 43 | 63270.340.002.4 | Washer | 1; | |
| 44 | 99871.350.005.6 | Top screw | 1; | |
| 45 | 101.087.01.00 | Lever | 1; | |
| 46 | 60200.05.0.0620 | Hexagon screw | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
