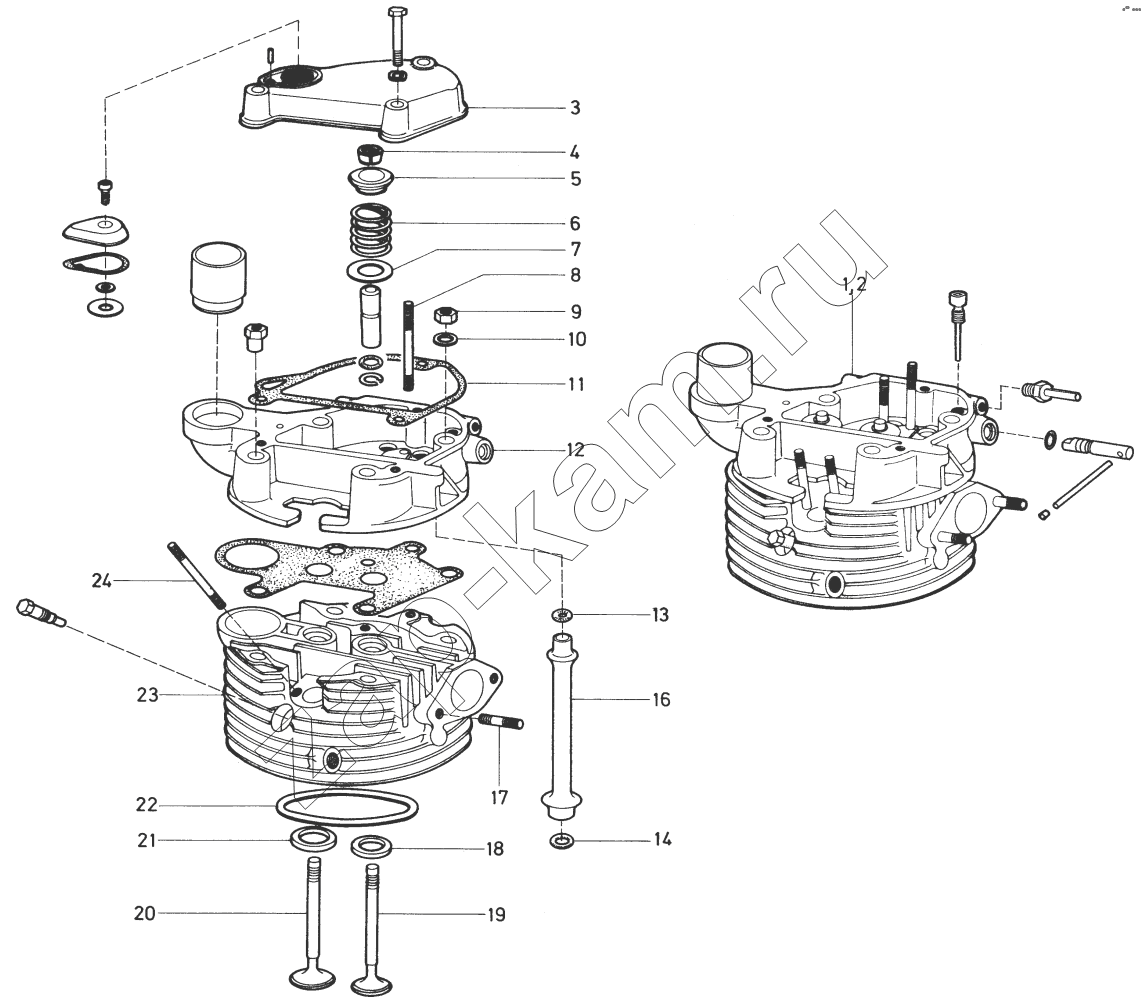

Cylinder head with cylinder head cover
/ Deutz LKSR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
18
19
20
21
22
23
24
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 99878.181.031.8 | Cylinder head, compl. | 1; | |
| 2 | 99678.181.031.7 | Cylinder head, compl. | 1; | |
| 3 | 99871.796.005.4 | Cylinder head cover | 1; | |
| 4 | 63050.462.002.4 | Halves of valve cone | 4; | |
| 5 | 69870.342.001.4 | Spring plate | 2; | |
| 6 | 60240.27.0.1160 | Pressure spring | 2; | |
| 7 | 99871.340.001.4 | Washer | 2; | |
| 8 | 60201.20.2.0875 | Stud | 2; | |
| 9 | 60210.05.4.0120 | Hexagon nut | 2; | |
| 10 | 63131.340.002.4 | Washer | 4; | |
| 11 | 99871.853.003.4 | Shaped gasket | 1; | |
| 12 | 99871.181.028.4 | Cylinder head cover | 1; | |
| 13 | 000.954.03.00 | Round packing ring | 2; | |
| 14 | 60493.10.6.0144 | Round packing ring | 2; | |
| 16 | 99871.322.002.4 | Protective pipe | 2; | |
| 17 | 60201.20.2.0825 | Stud | 2; | |
| 18 | 69860.345.001.3 | Valve seat ring, exhaust | 1; | |
| 19 | 69870.460.002.4 | Valve cone, exhaust | 1; | |
| 20 | 69870.460.001.4 | Valve cone, inlet | 1; | |
| 21 | 69870.345.001.3 | Valve seat ring, inlet | 1; | |
| 22 | 69870.855.001.4 | Cylinder head gasket | 1; | |
| 23 | 99871.181.021.5 | Cylinder head | 1; | |
| 24 | 60201.20.2.0895 | Stud | 2; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
