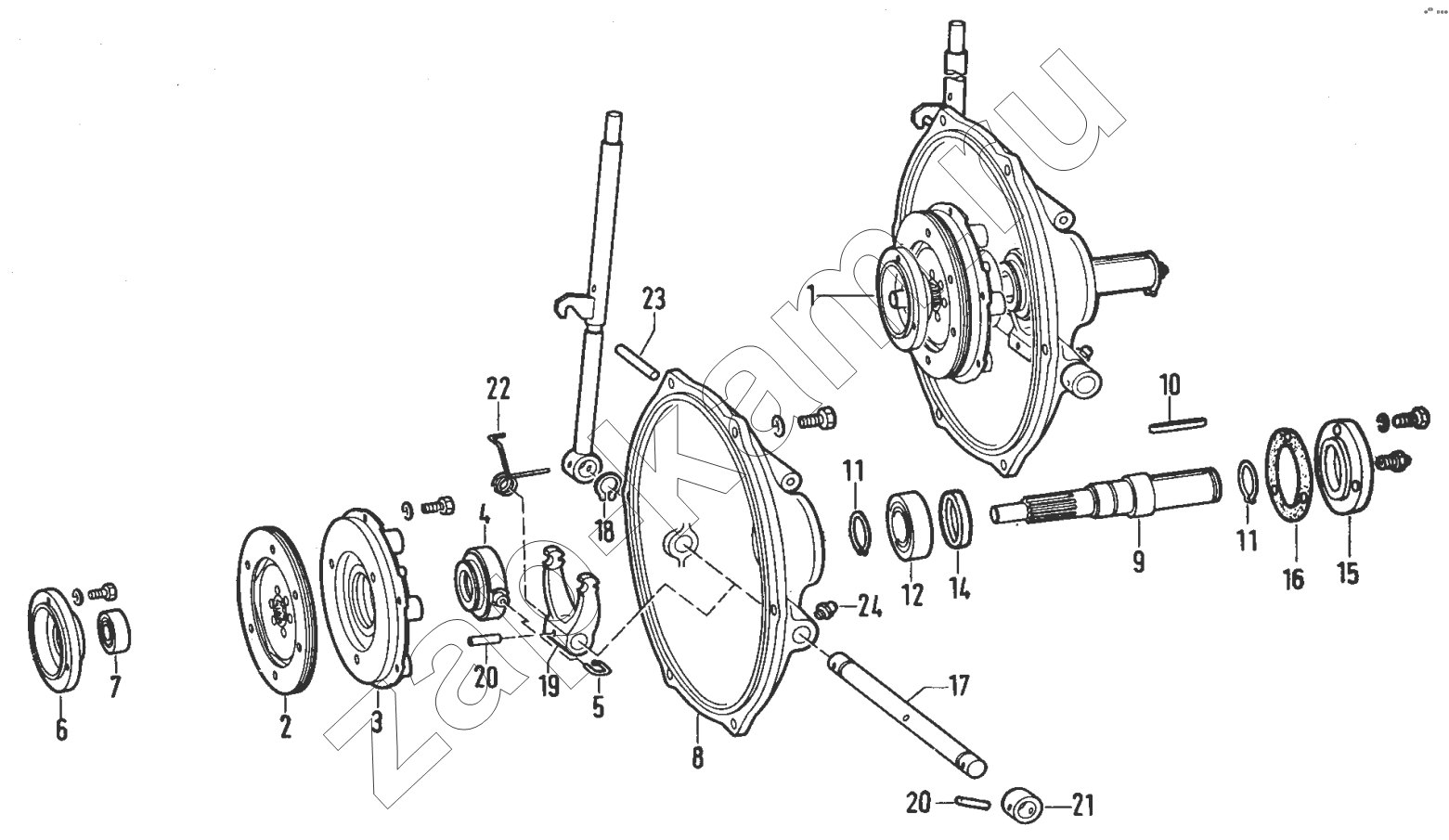

Flange coupling
/ Deutz LKSR
1
2
3
4
5
6
7
8
9
10
11
11
12
14
15
16
17
18
19
20
20
21
22
23
24
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 99371.034.002.6 | Clutch coupling, compl. | 1; | |
| 2 | 101.291.00.01 | Coupling disc | 1; | |
| 3 | 101.291.01.01 | Pressure plate | 1; | |
| 4 | 101.291.06.02 | BalI-bearing release arm | 1; | |
| 5 | 000.842.60.01 | Wire eye | 2; | |
| 6 | 99901.421.002.4 | Flange bearing | 1; | |
| 7 | 60320.07.4.6203 | Grooved balI bearing | 1; | |
| 8 | 99871.411.003.4 | Coupling flange | 1; | |
| 9 | 101.291.04.01 | Coupling shatt | 1; | |
| 10 | 60235.01.0.0850 | Fitting key | 1; | |
| 11 | 60305.01.0.0030 | Locking ring | 2; | |
| 12 | 60320.07.3.6206 | Grooved balI bearing | 1; | |
| 14 | 000.846.02.00 | Radial packing ring | 1; | |
| 15 | 101.291.05.00 | Cover | 1; | |
| 16 | 101.299.00.00 | Shaped gasket | 1; | |
| 17 | 101.291.09.01 | Shalt | 1; | |
| 18 | 60305.01.0.0016 | Locking ring | 1; | |
| 19 | 101.603.00.01 | Engaging lever | 1; | |
| 20 | 60220.10.0.0624 | Cylindrical pin | 3; | |
| 21 | 000.823.23.10 | Bush | 1; | |
| 22 | 000.842.61.00 | Torsion spring | 1; | |
| 23 | 60220.22.0.8045 | Grooved pin | 1; | |
| 24 | 6.0390.01.1.0801 | BalI type lubricating nipple | 2; |
