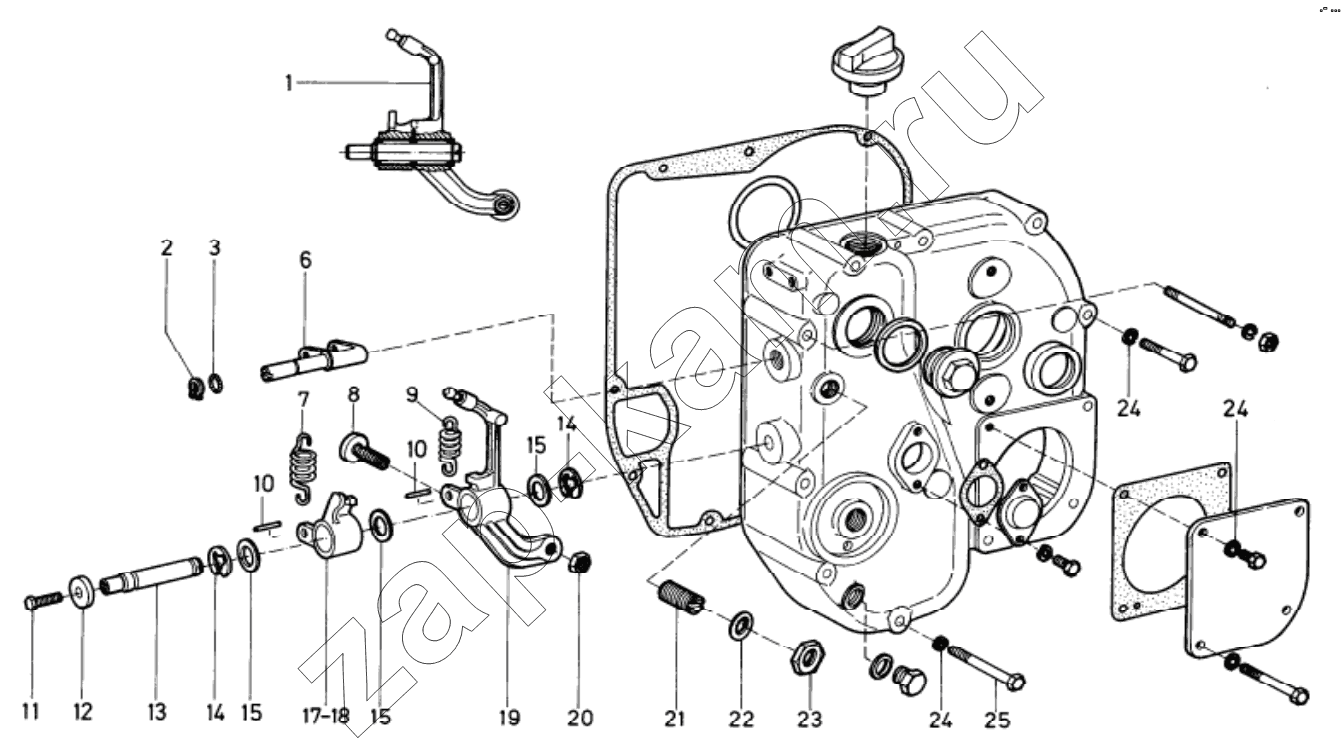

Front wall cover
/ Deutz LKSR
1
2
3
6
7
8
9
10
10
11
12
13
14
14
15
15
15
17
19
20
21
22
23
24
24
24
25
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 99871.641.003.6 | Lever, compl. | 1; | |
| 2 | 60205.01.0.0010 | Locking ring | 1; | |
| 3 | 60493.12.4.0092 | Round packing ring | 1; | |
| 4 | 99901.340.003.4 | Shim | ; | |
| 5 | 99901.340.004.4 | Shim | ; | |
| 6 | 99871.640.003.4 | Lever | 1; | |
| 7 | 99871.991.003.4 | Spring | 1; | |
| 8 | 63020.358.006.4 | Setting screw | 1; | |
| 9 | 99871.991.002.4 | Spring | 1; | |
| 10 | 90690.48.0.0221 | Needle bearing | 46; | |
| 11 | 60200.05.0.0525 | Hexagon screvv | 1; | |
| 12 | 000.801.02.10 | Washer | 1; | |
| 13 | 93021.300.019.4 | Governor shaft | 1; | |
| 14 | 60305.08.0.1000 | Locking washer | 2; | |
| 15 | 63020.340.024.4 | Washer | 3; | |
| 17 | 99871.641.003.4 | Lever | 1; | |
| 19 | 99871.641.004.5 | Lever | 1; | |
| 20 | 60210.05.4.0080 | Hexagon nut | 1; | |
| 21 | 60204.05.0.0830 | Threaded pin | 1; | |
| 22 | 60492.01.0.0811 | Packing ring | 1; | |
| 23 | 60210.05.4.0080 | Hexagon nut | 1; | |
| 24 | 60216.01.0.0060 | Lock washer | 7; | |
| 25 | 60200.01.0.0680 | Hexagon screw | 4; |
