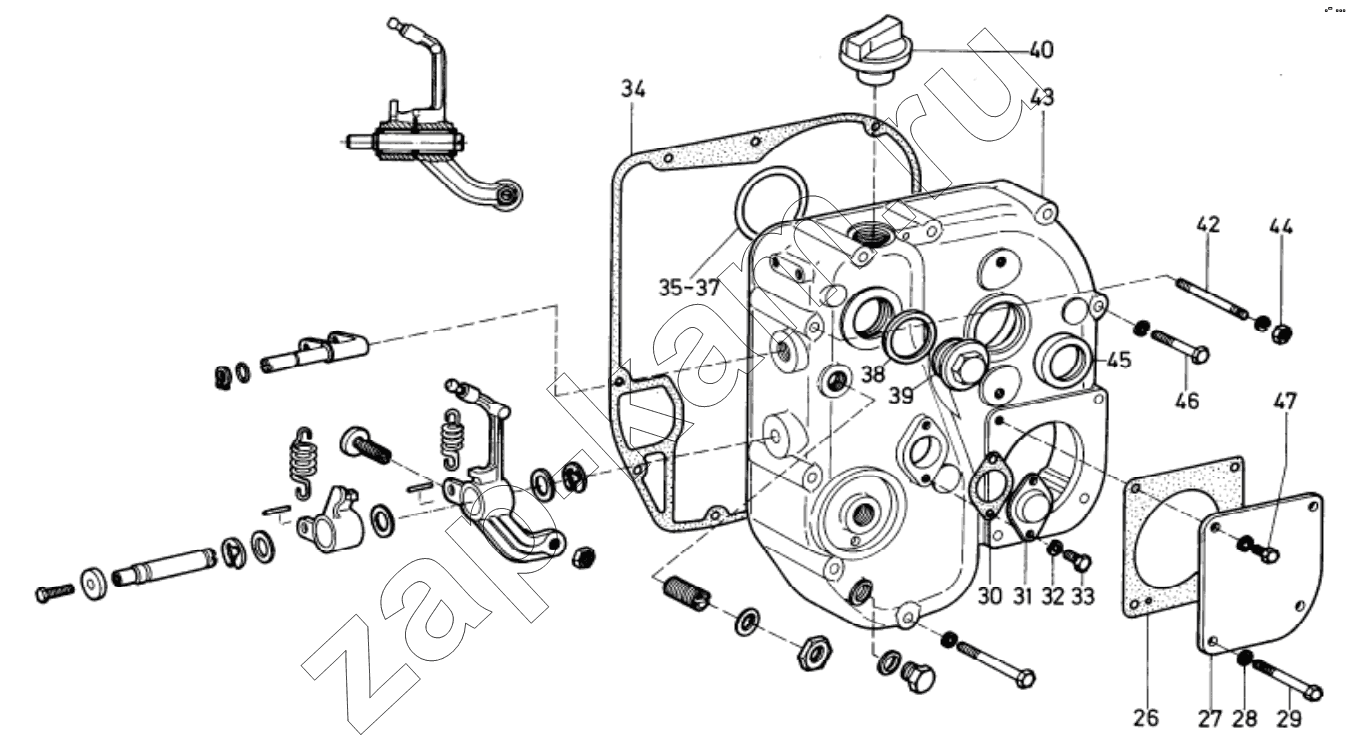

Front wall cover
/ Deutz LKSR
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
42
43
44
45
46
47
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 26 | 99871.853.005.4 | Shaped gasket | 1; | - | |
| 27 | 99871.787.003.4 | Cover | 1; | - | |
| 28 | 60492.01.0.0610 | Packing ring | 1; | - | |
| 29 | 60200.01.0.0665 | Hexagon screvv | 3; | - | |
| 30 | 101.059.01.00 | Gasket | 1; | - | |
| 31 | 101.053.02.00 | Cover | 1; | - | |
| 32 | 60216.03.1.0060 | Spring washer | 6; | - | |
| 33 | 60200.05.0.0610 | Hexagon screvv | 2; | - | |
| 34 | 36000220 | Shaped gasket | 1; | - | |
| 35 | 101.053.05.00 | Compensating plate | *; | - | |
| 36 | 101.053.05.10 | Compensating plate | *; | - | |
| 37 | 101,053.05.20 | Compensating plate | *; | - | |
| 38 | 60492.01.0.3038 | Packing ring | 1; | - | |
| 39 | 60206.05.1.3015 | Screw plug | 1; | - | |
| 40 | 04281390 | Filler cap | 1; | - | |
| 41 | 99871.974.010.4 | Compensating plate | *; | - | |
| 42 | 60201.10.2.0680 | Stud | 1; | - | |
| 43 | 99871.780.004.4 | Front wall cover | 1; | - | |
| 44 | 60210.05.4.0060 | Hexagon nut | 1; | - | |
| 45 | 60496.01.0.3000 | Radial packing ring | 1; | - | |
| 46 | 60200.01.0.0655 | Hexagon screw | 3; | - | |
| 47 | 60200.03.0.0615 | Hexagon screw | 1; | - | |
| 48 | 60492.01.0.1013 | Packing ring | 1; | - | |
| 49 | 000.847.05.00 | Screw plug | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
