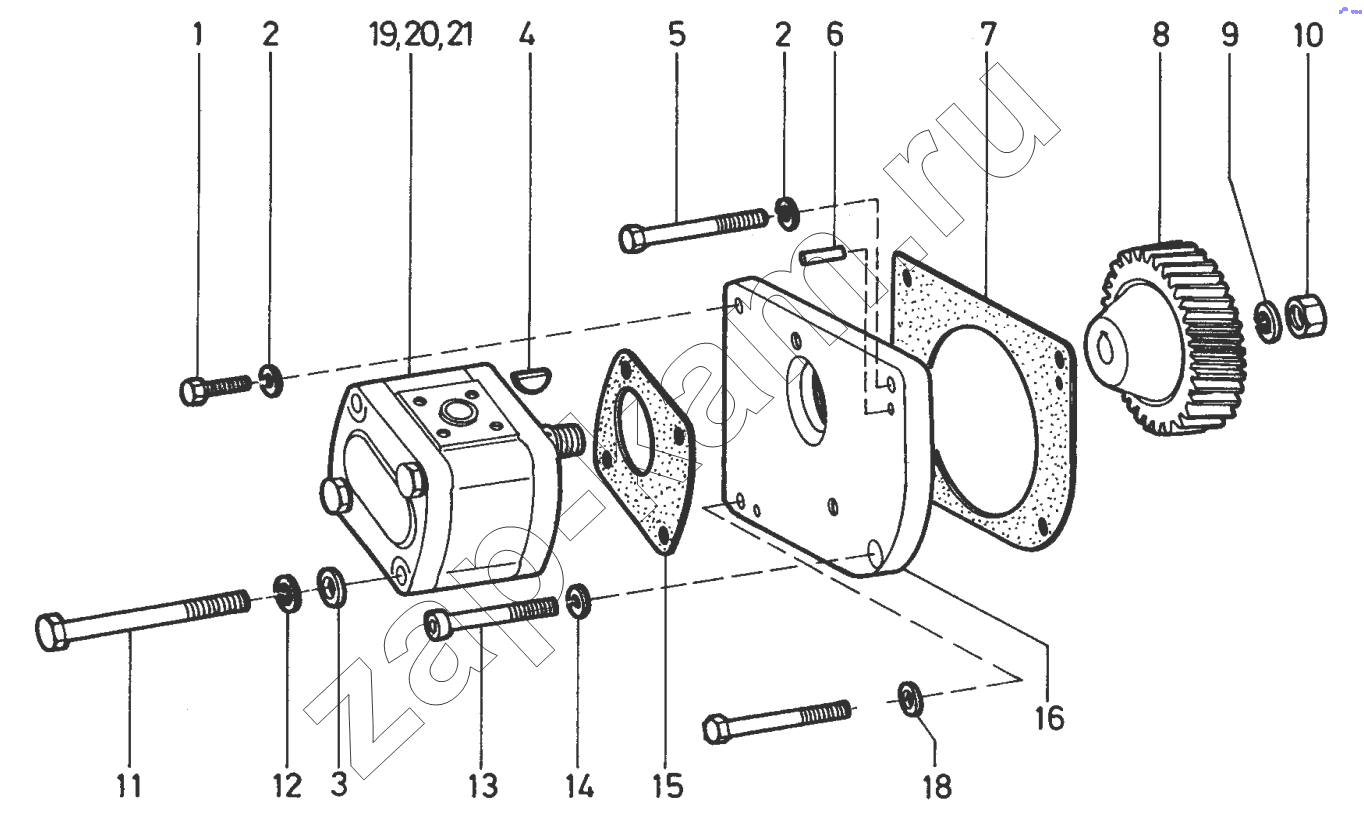

Hydraulic pump
/ Deutz LKSR
1
2
2
3
4
5
6
7
8
9
10
11
11
11
12
13
14
15
16
18
19
20
21
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 60200.05.0.0625 | Hexagon screw | 1; | - | |
| 2 | 60216.01 .0.0060 | Lock washer | 2; | - | |
| 3 | 60215.01.0.0105 | Washer | ; | - | |
| 4 | 60235.20.0.3065 | Plate spring | 1; | - | |
| 5 | 60200.01.0.0675 | Hexagon screw | 2; | - | |
| 6 | 60220.10.0.0616 | Straight pin | 2; | - | |
| 7 | 99871.853.005.4 | Shaped gasket | 1; | - | |
| 8 | 99871.371.003.4 | Gear wheel | 1; | - | |
| 9 | 60216.01.0.0120 | Lock washer | 1; | - | |
| 10 | 60210.01.0.1215 | Hexagon nut | 1; | - | |
| 11 | 60200.01.1.1010 | Hexagon screw | 2; | - | |
| 11 | 60200.01.1.1050 | Hexagon screw | 2; | - | |
| 11 | 60200.01.0.1095 | Hexagon screw | 2; | - | |
| 12 | 60216.01.0.0100 | Lock washer | 2; | - | |
| 13 | 60200.70.2.0665 | Cheese head screw | 1; | - | |
| 14 | 60216.01.5.0060 | Lock washer | 1; | - | |
| 15 | 63050.853.004.4 | Shaped gasket | 1; | - | |
| 16 | 99871.787.004.4 | Cover | 1; | - | |
| 18 | 91215.01.3.0064 | Packing ring | 1; | - | |
| 19 | 99871.635.003.4 | Hydraulic pump | 1; | - | |
| 20 | 99871.635.002.4 | Hydraulic pump | 1; | - | |
| 21 | 99871.635.001.4 | Hydraulic pump | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
