Injection valve
/ Deutz LKSR

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано BF6L914C (2004) BF6M1013 BF6M1013E (2002) LKSR (2006)

Схема > Не выбрано Crankcase Front wall cover Front wall cover Crankshaft Crankshaft Piston and connecting rod Camshaft and walves withactuating mechanism Cylinder head with cylinder head cover Cylinder head with cylinder head cover Cylinder head with cylinder head cover Cylinder head with cylinder head cover Injection pumpe drive Injection pump Fuel filter Injection valve Fuel tank installation Speed adjusting device Speed fine adjustin device Solenoid shut down device 12 v. Gear oil pump Lube oil super fine filter Cooling air conduit Centrifugal pump, high pressure Type: A50-35 Serie II Centrifugal pump, high pressure Type: A50-35 Serie II Centrifugal pump, high pressure Type: A60-32 Serie III Centrifugal pump, medium pressure Type: M30-80 Serie II Centrifugal pump, medium pressure Type: M30-80 Serie II Centrifugal pump, low pressure Type: B16-125 Centrifugal pump, low pressure Type: B16-125 Exhaust gas silencer Oil bath air filter Dry air filter Starter 1,4 kW Starter 2 kW Hand cranking device Starting aid Flyweel-generator assembly Flyweel-generator assembly Control devices and electrical equipment Control panel Wiring harness (For Magnet-generator 99871.071.015.4) Wiring harness (For Magnet-generator 99901.071.009.4), For Control panel standard and semiautomatic (not for cold start aid) Foundation parts Flange coupling Flange coupling Hydraulic pump

1

2

3

4

5

7

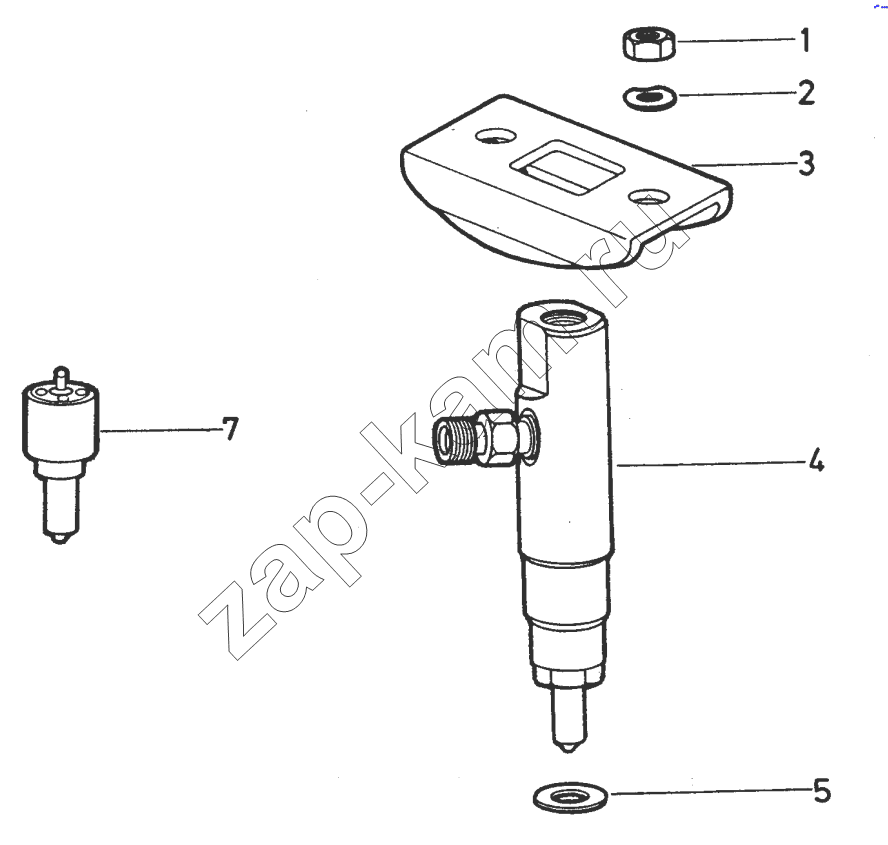

Поз.	Артикул		Название детали	Кол-во
1	60210.05.4.0080		Hexagon nut	2;
2	60216.03.1.0080		Spring washer	2;
3	62260.653.501.4		Pressure flange	1;
4	99871.464.004.6		Nozzle holder with hozzle	1;
5	4175610		Packing ring	1;
7	91530.01.0.0050		Nozzle	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
