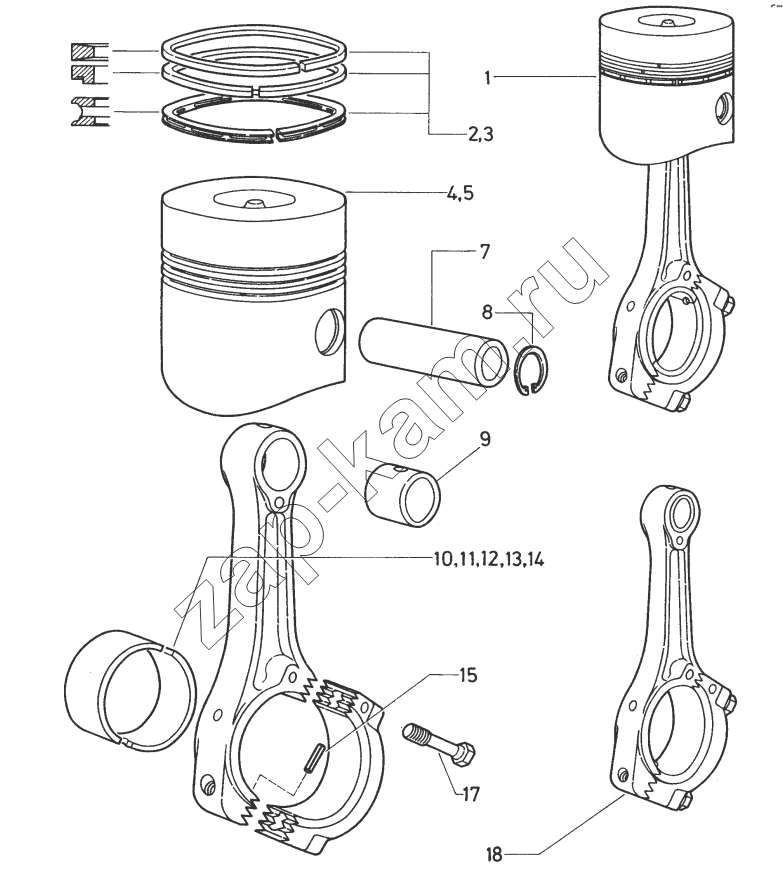

Piston and connecting rod
/ Deutz LKSR
1
2
3
4
4
5
7
8
9
10
11
12
13
14
15
17
18
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 99871.160.005.8 | Connecting-rod-Piston cpl. | 1; | |
| 2 | 99871.019.008.7 | Piston rings set | 1; | |
| 3 | 99871.019.009.7 | Piston rings set | 1; | |
| 4 | 99871.160.002.7 | Piston compl. | 1; | |
| 4 | 99871.160.005.7 | Piston compl. | 2; | |
| 5 | 99878.160.043.7 | Piston compl. | 1; | |
| 7 | 000.986.00.03 | Piston pin | 1; | |
| 8 | 60305.02.0.0026 | Spring ring | 2; | |
| 9 | 69870.431.001.4 | Connecting rod bush | 1; | |
| 10 | 69870.430.001.7 | Connecting rod bearing | 1; | |
| 11 | 69878.430.003.7 | Connecting rod bearing | 1; | |
| 12 | 69878.430.005.7 | Connecting rod bearing | 1; | |
| 13 | 69878.430.007.7 | Connecting rod bearing | 1; | |
| 14 | 69878.430.009.7 | Connecting rod bearing | 1; | |
| 15 | 60220.15.0.0416 | Clampнng sleevee | 1; | |
| 17 | 91200.10.1.0840 | Cap screw | 2; | |
| 18 | 36001106 | Connecting rod compl. | 1; |
