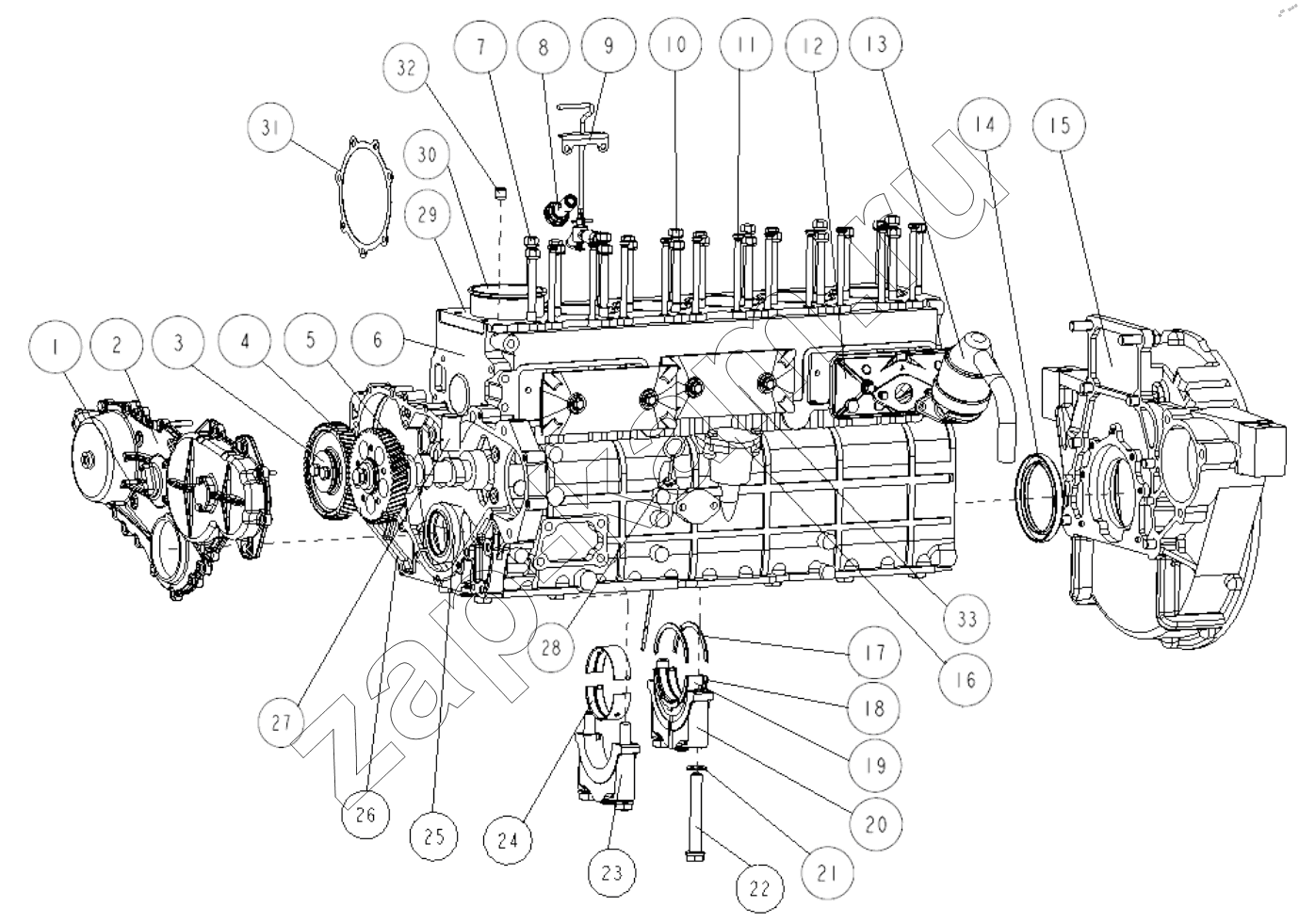

Cylinder Block Assembly (1)
/ DongFeng CY6102BG4-2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 02025BA002 | Timing pointer | 1; | |
| 2 | 02400BA001 | Gear chamber cover Assembly | 1; | |
| 3 | 02440BA001 | Idler shaft Assembly | 1; | |
| 4 | 02020BA001 | Idler unit | 1; | |
| 5 | 02620BA001 | Camshaft Assembly | 1; | |
| 6 | 02010BA002 | Cylinder block unit | 1; | |
| 7 | 02055BA001 | Cylinder head bolt | 6; | |
| 8 | 02060BA001 | Main pressure oil passage pressure valve unit | 1; | |
| 9 | 02300BA001 | Water drain valve unit | 1; | |
| 10 | 02055BA002 | Cylinder head bolt | 20; | |
| 11 | 02032BA004 | Tappet | 12; | |
| 12 | 02590BA001 | Rear push rod chamber cover unit | 1; | |
| 13 | 02570BA102 | Respirator unit | 1; | |
| 14 | 02110BA002 | Rear oil seal seat unit | 1; | |
| 15 | 02610BA006 | Flywheel housing unit | 1; | |
| 16 | 02480BA001 | Upper bush cover of oil pump unit | 1; | |
| 17 | 02015BA001 | Crankshaft thrust piece | 2; | |
| 18 | 02016BA001 | Crankshaft thrust piece | 2; | |
| 19 | 02126BA002 | Central main bearing half shell | 1; | |
| 20 | 02004BA004 | Main bearing cover 4 | 1; | |
| 21 | 02011BA001 | Washer | 14; | |
| 22 | 02002BA001 | Main bearing bolt | 14; | |
| 23 | 02003BA002 | Main bearing lid | 6; | |
| 24 | 02014BA001 | Main bearing halfshell | 13; | |
| 25 | 02090BA002 | Crankshaft rear oil seal unit | 1; | |
| 26 | 02340BA001 | Gear chamber unit | 1; | |
| 27 | 02032BA004 | Tappet | 12; | |
| 28 | 02040BA001 | Dipstick sleeve unit | 1; | |
| 29 | 02039BA002 | Cylinder head gasket | 1; | |
| 30 | 02017BA002 | Cylinder sleeve | 6; | |
| 31 | 02107BA001 | Cover gasket of Injector | 1; | |
| 32 | 02013BA001 | Cylinder head bolt locating sleeve | 2; | |
| 33 | 02500BA001 | Front push rod chamber cover | 2; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
