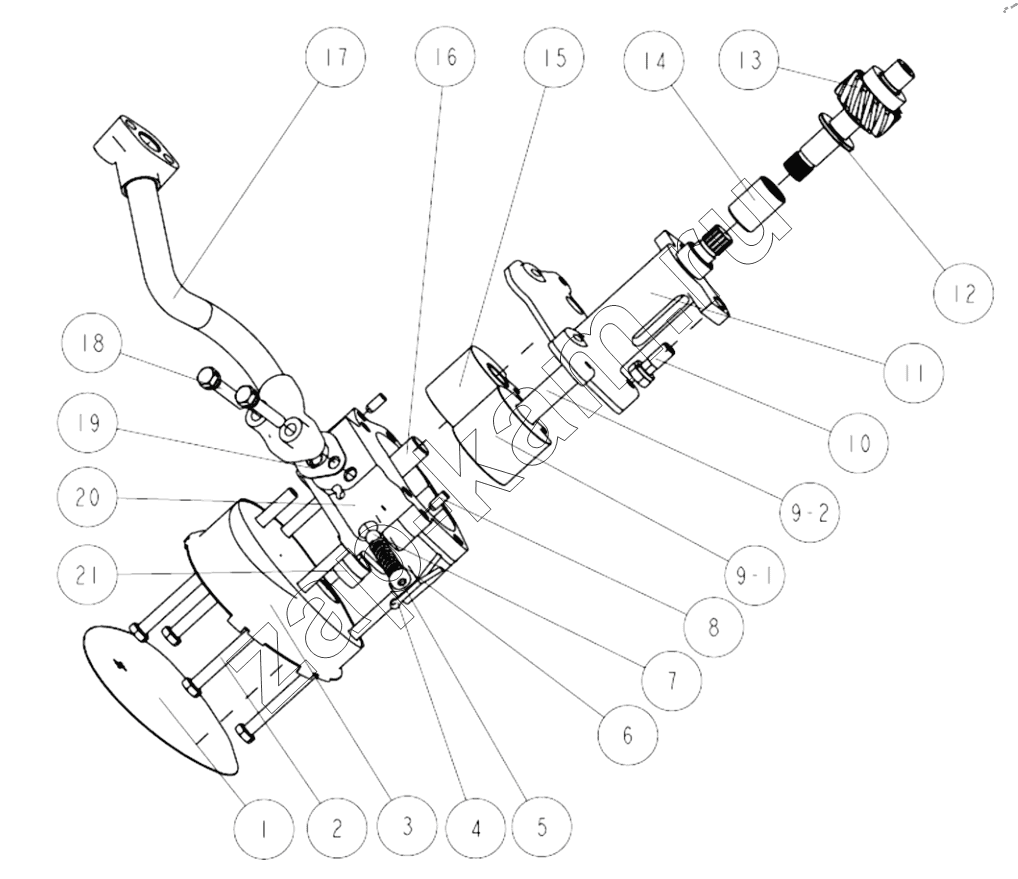

Oil Pump Assembly
/ DongFeng CY6102BG4-2
1
2
3
4
5
6
7
8
9-1
9-2
10
11
12
13
14
15
16
17
18
19
20
21
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 07016BA001 | Filter screen | 1; | |
| 2 | Q150B0865 | Болт | 4; | |
| 3 | 07015BA001 | Filter housing | 1; | |
| 4 | Q5004036 | Cotter | 1; | |
| 5 | 07017BA001 | Spring seat | 1; | |
| 6 | 07018BA001 | Spring | 1; | |
| 7 | C102010 | Spring ball | 1; | |
| 8 | Q5210618 | Pin | 2; | |
| 9 | 07010BA002 | Drive gear unit | 1; | |
| 9-1 | 07021BA003 | Oil pump drive gear | 1; | |
| 9-2 | 07004BA002 | Drive gear shaft | 1; | |
| 10 | C1481025 | Hexagon head bolt composite member | 2; | |
| 11 | 07002BA002 | Oil pump cover | 1; | |
| 12 | 07009BA001 | Adjusting shim | 1; | |
| 13 | 07011BA001 | Gear shaft | 1; | |
| 14 | 07008BA001 | Spline housing | 1; | |
| 15 | 07030BA002 | Driving gear unit | 1; | |
| 16 | 07005BA004 | Driving gear shaft | 1; | |
| 17 | 07020BA002 | Oil pipe unit | 1; | |
| 18 | Q1420840 | Bolt | 4; | |
| 19 | 07012BA001 | Gasket | 2; | |
| 20 | 07001BA002 | Oil pump body | 1; | |
| 21 | 07006BA002 | Oil suction pipe | 1; |
