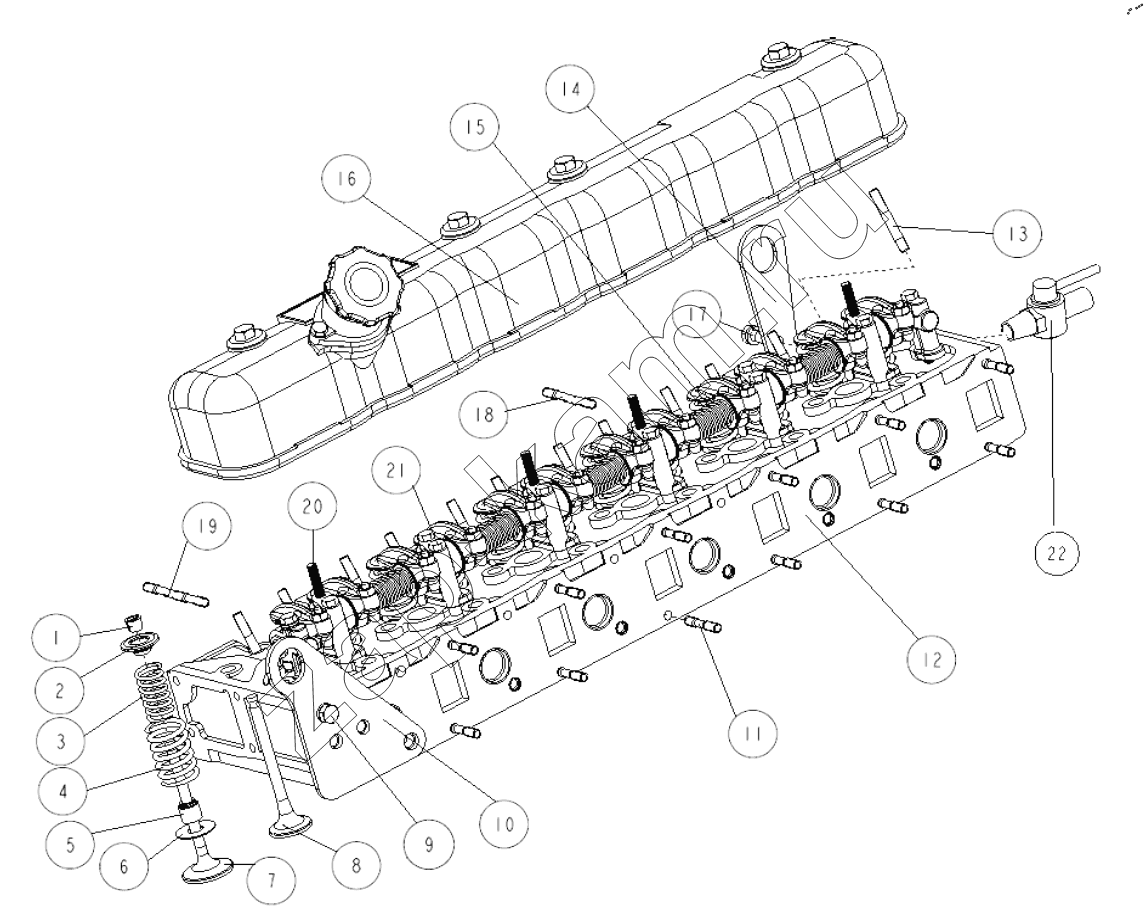

Cylinder Head
/ DongFeng CY6102BG4-2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 6102.01.46-1 | Valve collects | 24; | |
| 2 | 6102.01.47-1 | Valve spring seat | 12; | |
| 3 | 6102.01.14 | Inner valve spring | 12; | |
| 4 | 6102.01.15 | Outer valve spring | 12; | |
| 5 | 6102B.01.50A | Valve seal cartridge unit | 12; | |
| 6 | 6102B.01.45 | Valve spring washer | 12; | |
| 7 | 4102.01.24 | Intake valve | 6; | |
| 8 | 4102.01.25 | Exhaust valve | 6; | |
| 9 | GB/T9074.15-M10X22 | Hexagon head bolt composite member | 1; | |
| 10 | 6102.01.17-2A | Front hanger | 1; | |
| 11 | GB/T899-GM8x30 | Stud GM8x30 | 12; | |
| 12 | 6102.01.10 | Cylinder head unit | 1; | |
| 13 | 6102.01.53-2 | Nozzle holder stud | 12; | |
| 14 | 6102.01.27 | Back hanger | 1; | |
| 15 | 6102.01.20-1 | Cylinder Rocker arm shaft | 1; | |
| 16 | 6102A.01.30 | Head cover unit | 1; | |
| 17 | GB21/T9074.15-M10X25 | Hexagon head bolt composite member | 2; | |
| 18 | GB/T899-GM8x75 | Stud | 8; | |
| 19 | GB/T899-GM8x85 | Stud | 2; | |
| 20 | 4102.01.21 | Rocker bracket bolt | 4; | |
| 21 | 6102.01.51 | Rocker bracket bolt | 9; | |
| 22 | 81C-01170 | Warm-air priming cock | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
