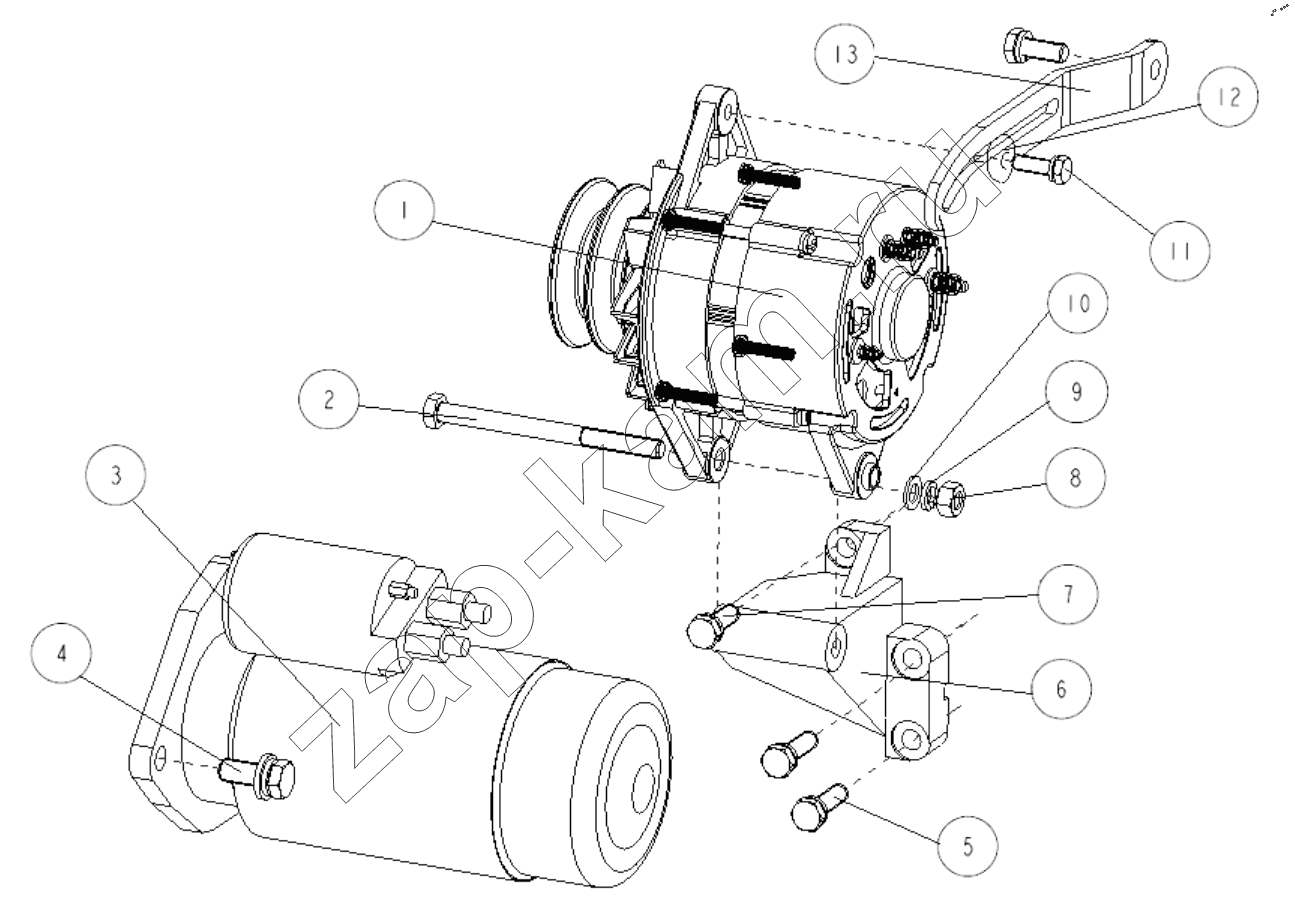

Electric Equipment Assembly
/ DongFeng CY6102BG4-2
1
2
3
4
5
6
7
8
9
10
11
12
13
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 6102BG4-2.21.30 | Generator assy | 1; | |
| 2 | 6102G1.21.02 | Generator pivot | 1; | |
| 3 | 6102.21.20 | Starter | 1; | |
| 4 | GB/T9074.17-M12x30 | Hexagon head bolt composite member | 3; | |
| 5 | GB21/T9074.15-M10X35 | Hexagon head bolt composite member | 2; | |
| 6 | 6102G1.21.03 | Generator supporting frame | 1; | |
| 7 | GB21/T9074.15-M10X25 | Hexagon head bolt composite member | 2; | |
| 8 | GB/T6170-M10 | Nut | 1; | |
| 9 | GB/T859-10 | Spring washer | 1; | |
| 10 | GB/T848-10 | Washer | 1; | |
| 11 | GB/T9074.15-M8x25 | Bolt unit | 1; | |
| 12 | GB/T96-8 | Big Washer | 1; | |
| 13 | 6102G1.21.01 | Generator supporting plate | 1; |
