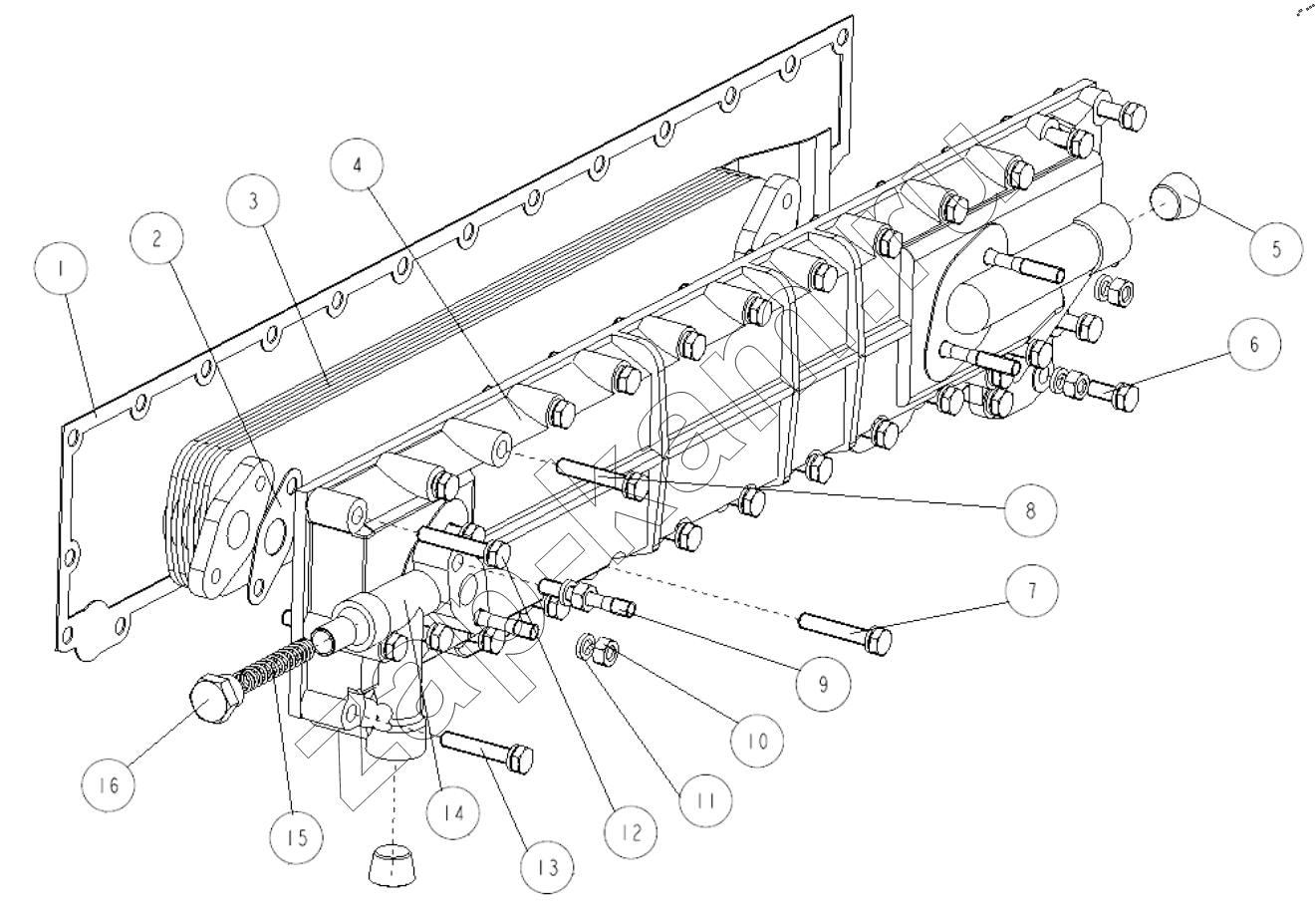

Oil Cooler Assembly
/ DongFeng CY6102BG4-2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 6102.18.02 | Oil cooler cover gasket | 1; | - | |
| 2 | 6102.18.08 | Shim | 2; | - | |
| 3 | 6102B1.18.10 | Oil cooler | 1; | - | |
| 4 | 6102B1.18.01 | Oil cooler cover | 1; | - | |
| 5 | 6102.18.07 | Bolt joint | 2; | - | |
| 6 | GB/T9074.15-M8x20 | Hexagon head bolt composite member | 2; | - | |
| 7 | GB/T9074.15-M8x30 | Hexagon head bolt composite member | 15; | - | |
| 8 | GB/T9074.15-M8x55-22 | Hexagon head bolt composite member | 2; | - | |
| 9 | GB/T898-M8x38 | Double-screw bolt M8X38 | 2; | - | |
| 10 | GB/T6170-M10 | Nut | 4; | - | |
| 11 | GB/T859-8 | Spring washer | 4; | - | |
| 12 | GB/T9074.15-M8x45-22 | Hexagon head bolt composite member | 10; | - | |
| 13 | GB/T9074.15-M8x70-22 | Hexagon head bolt composite member | 1; | - | |
| 14 | 6102.18.03 | Slide valve | 1; | - | |
| 15 | 6102.18.04 | Pressure adjusting spring | 1; | - | |
| 16 | 6102.18.06 | Pressure adjusting spring seat | 1; | - |
