Accessories (5)
/ Doosan DP180LB
1
1-1
1-1
1-2
1-3
1-4
1-5
1-6
1-7
1-8
1-8
2
2
2
2
3
4
4
5
5
5
5
6
7
8
11
11
12
12
12
12
13

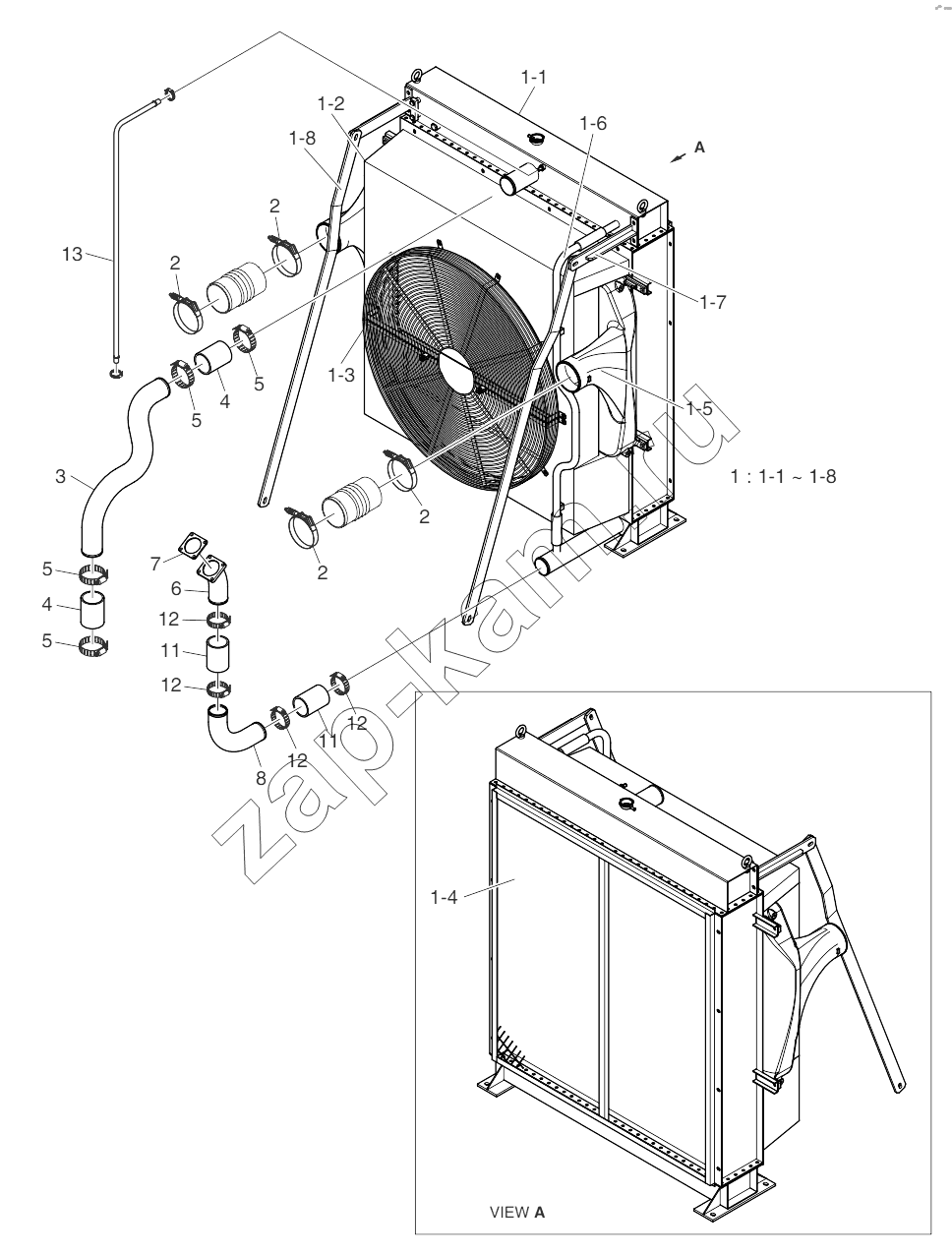

| Поз. | Артикул | Название детали | DP180LAF | DP180LAS | DP180LBF | DP180LBS | |
|---|---|---|---|---|---|---|---|
| 1 | 440211-00440 | Radiator assy | 1 | 1 | 1 | 1 | |
| 1-1 | 440211-00452 | Radiator | 1 | 1 | 1 | 1 | |
| 1-2 | 110948-00120 | Shroud | 1 | 1 | 1 | 1 | |
| 1-3 | 110921-02082 | Guard | 2 | 2 | 2 | 2 | |
| 1-4 | 101569-00144 | Guard | 1 | 1 | 1 | 1 | |
| 1-5 | 400215-00033 | Intercooler assy | 1 | 1 | 1 | 1 | |
| 1-6 | 420202-00280 | Pipe | 1 | 1 | 1 | 1 | |
| 1-7 | 110958-01846 | Support | 2 | 2 | 2 | 2 | |
| 1-8 | 110958-01847 | Support | 2 | 2 | 2 | 2 | |
| 2 | 65.97401-6040 | Clip | 4 | 4 | 4 | 4 | |
| 3 | 420211-00357 | Pipe | 1 | 1 | 1 | 1 | |
| 4 | 04.27415-0413 | Hose | 2 | 2 | 2 | 2 | |
| 5 | 06.67020-0113 | Clamp | 4 | 4 | 4 | 4 | |
| 6 | 420211-00356 | Pipe | 1 | 1 | 1 | 1 | |
| 7 | 67.06901A0001 | Gasket | 1 | 1 | 1 | 1 | |
| 8 | 420211-00355 | Pipe | 1 | 1 | 1 | 1 | |
| 11 | 04.27415-0313 | Hose | 2 | 2 | 2 | 2 | |
| 12 | 06.67020-0112 | Clamp | 4 | 4 | 4 | 4 | |
| 13 | 65.96301-0573 | Hose | 1 | 1 | 1 | 1 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
