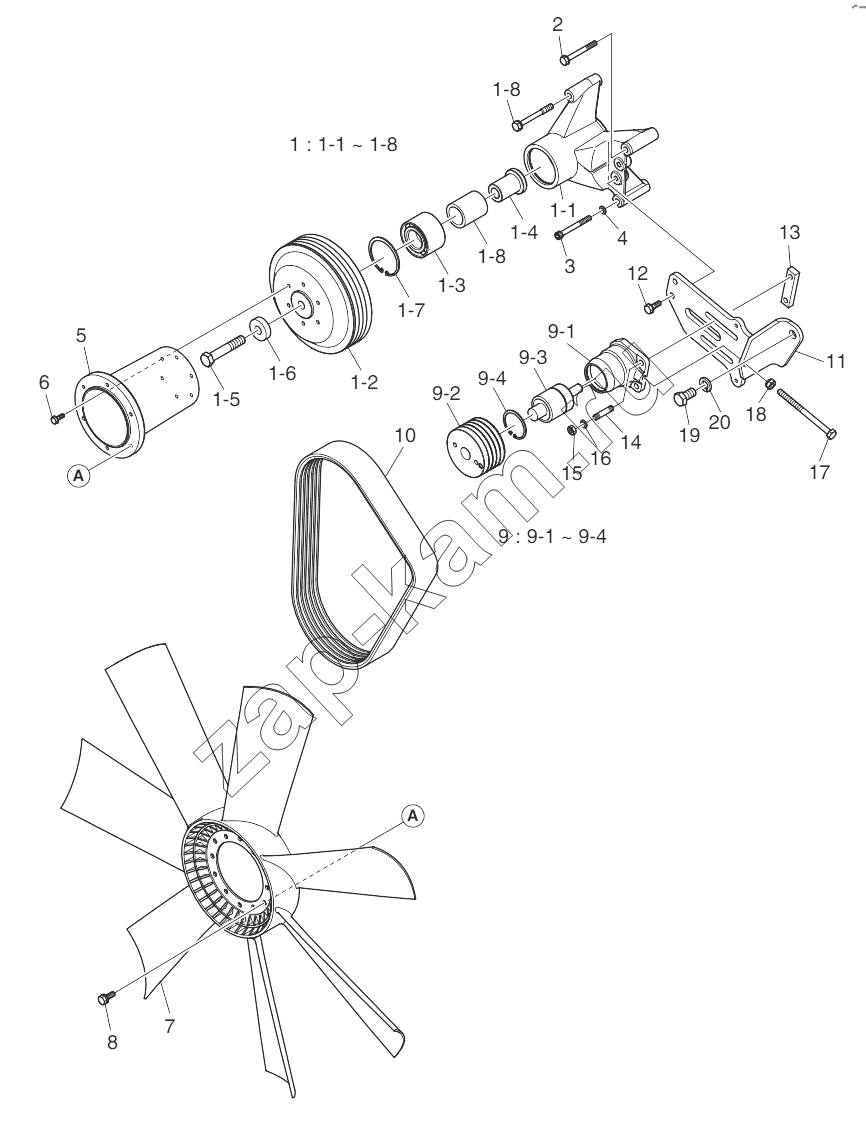

Cooling Fan
/ Doosan DP180LB
1
1-1
1-1
1-2
1-3
1-4
1-5
1-6
1-7
1-8
1-8
1-8
2
3
4
5
6
7
8
9
9-1
9-1
9-2
9-3
9-4
9-4
10
11
12
13
14
15
16
17
18
19
20
| Поз. | Артикул | Название детали | DP180LAF | DP180LAS | DP180LBF | DP180LBS | |
|---|---|---|---|---|---|---|---|
| 1 | 110412-00076 | Fan mounting bracket assy | 1 | 1 | 1 | 1 | |
| 1-1 | 130709-00057 | Pulley | 1 | 1 | 1 | 1 | |
| 1-2 | 65.06602-0004 | Bracket | 1 | 1 | 1 | 1 | |
| 1-3 | 51.93410-0073 | Bearing | 1 | 1 | 1 | 1 | |
| 1-4 | 65.06603-0004 | Shaft | 1 | 1 | 1 | 1 | |
| 1-5 | 06.01494-4517 | Bolt | 1 | 1 | 1 | 1 | |
| 1-6 | 65.90710-0253 | Washer | 1 | 1 | 1 | 1 | |
| 1-7 | 06.29020-0152 | Ring | 1 | 1 | 1 | 1 | |
| 1-8 | 06.01913-3229 | Bolt | 2 | 2 | 2 | 2 | |
| 2 | 06.01913-3229 | Bolt | 1 | 1 | 1 | 1 | |
| 3 | 06.02091-0527 | Bolt | 1 | 1 | 1 | 1 | |
| 4 | 06.16110-0107 | Washer | 1 | 1 | 1 | 1 | |
| 5 | 65.06611-0138 | Flange | 1 | 1 | 1 | 1 | |
| 6 | 06.01913-3116 | Bolt | 6 | 6 | 6 | 6 | |
| 7 | 65.06601-5048 | Fan | 1 | 1 | 1 | 1 | |
| 8 | 06.01923-3117 | Bolt | 6 | 6 | 6 | 6 | |
| 9 | 130710-00070 | Idle pulley assy | 1 | 1 | 1 | 1 | |
| 9-1 | 65.95840-0076 | Bracket | 1 | 1 | 1 | 1 | |
| 9-2 | 130710-00071 | Pulley | 1 | 1 | 1 | 1 | |
| 9-3 | 65.93410-0087 | Bearing | 1 | 1 | 1 | 1 | |
| 9-4 | 06.29020-0132 | Ring | 1 | 1 | 1 | 1 | |
| 10 | 130205-00319 | V-belt | 1 | 1 | 1 | 1 | |
| 11 | 110417-00052 | Bracket | 1 | 1 | 1 | 1 | |
| 12 | 06.01914-3215 | Bolt | 2 | 2 | 2 | 2 | |
| 13 | 65.95840-0079 | Bracket | 1 | 1 | 1 | 1 | |
| 14 | 06.06225-0809 | Bolt | 2 | 2 | 2 | 2 | |
| 15 | 06.11063-8215 | Nut | 2 | 2 | 2 | 2 | |
| 16 | 06.16731-2108 | Washer | 2 | 2 | 2 | 2 | |
| 17 | 06.01283-7235 | Bolt | 1 | 1 | 1 | 1 | |
| 18 | 06.11250-2106 | Nut | 1 | 1 | 1 | 1 | |
| 19 | 06.01283-7517 | Bolt | 1 | 1 | 1 | 1 | |
| 20 | 06.16731-2111 | Washer | 1 | 1 | 1 | 1 |
