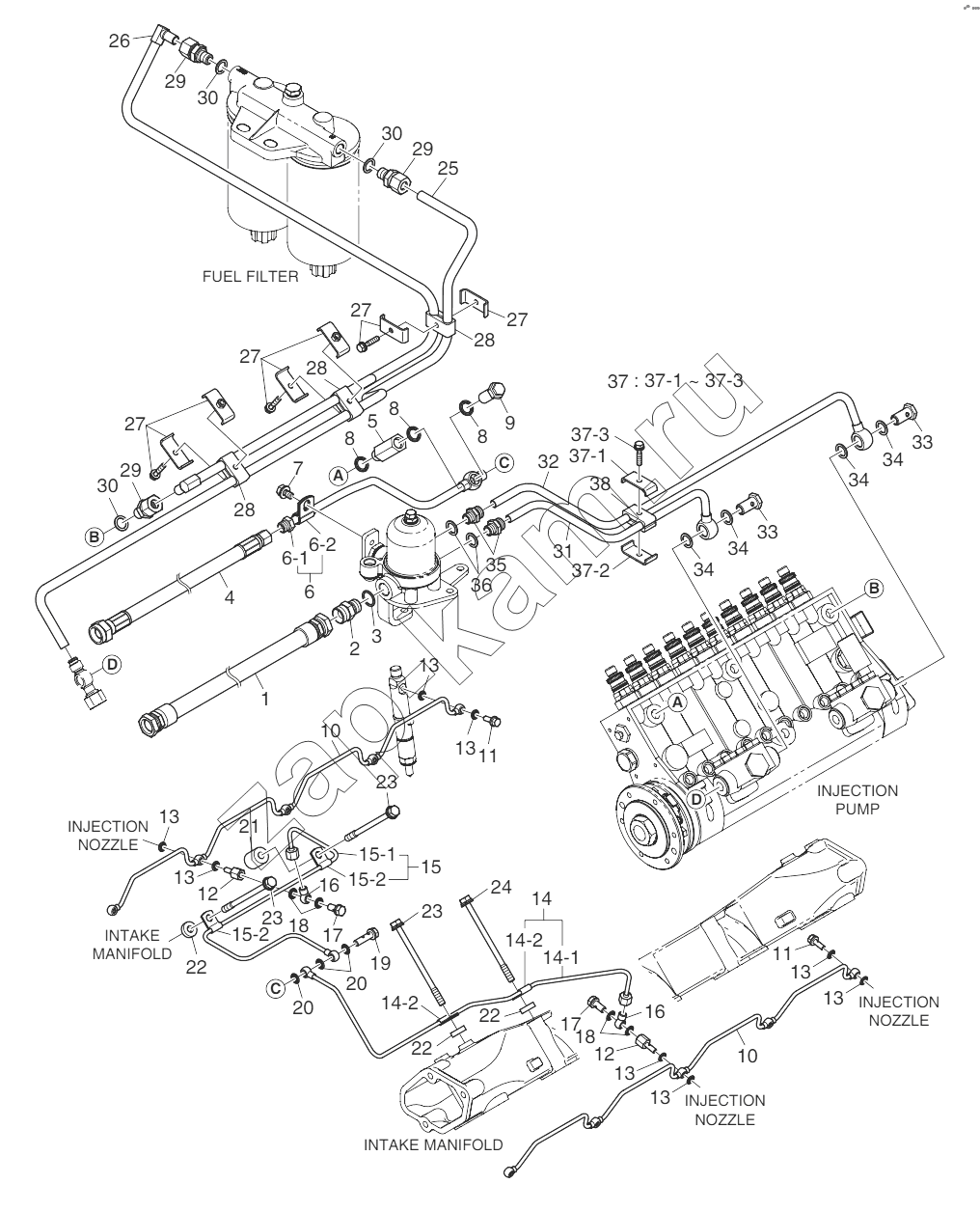

Fuel Line
/ Doosan DP180LB
1
2
3
4
5
6
6-1
6-2
7
8
8
8
9
10
10
11
11
12
12
13
13
13
13
13
13
13
13
14
14-1
14-2
14-2
15
15-1
15-2
15-2
16
16
17
17
18
18
19
20
20
21
22
22
22
23
23
23
24
25
26
27
27
27
27
28
28
28
29
29
29
30
30
30
31
32
33
33
34
34
34
34
35
36
37
37-1
37-1
37-2
37-3
37-3
38
| Поз. | Артикул | Название детали | DP180LAF | DP180LAS | DP180LBF | DP180LBS | Цена | |
|---|---|---|---|---|---|---|---|---|
| 1 | 65.96340-5061 | Hose | 1 | 1 | 1 | 1 | - | |
| 2 | 65.98131-0105 | Nipple | 1 | 1 | 1 | 1 | - | |
| 3 | 06.56190-0712 | Ring | 1 | 1 | 1 | 1 | - | |
| 4 | 65.96340-5037 | Hose | 1 | 1 | 1 | 1 | - | |
| 5 | 430201-00821 | Adapter | 1 | 1 | 1 | 1 | - | |
| 6 | 420204-00479 | Fuel return pipe assy | 1 | 1 | 1 | 1 | - | |
| 6-1 | 420204-00480 | Pipe | 1 | 1 | 1 | 1 | - | |
| 6-2 | 65.97401-0110A | Clip | 1 | 1 | 1 | 1 | - | |
| 7 | 06.01923-3111 | Bolt | 1 | 1 | 1 | 1 | - | |
| 8 | 65.96507-0043 | Ring | 3 | 3 | 3 | 3 | - | |
| 9 | 65.11120-5002 | Valve | 1 | 1 | 1 | 1 | - | |
| 10 | 65.12301-5143 | Pipe | 2 | 2 | 2 | 2 | - | |
| 11 | 120703-00030 | Screw | 8 | 8 | 8 | 8 | - | |
| 12 | 120703-00033 | Screw | 2 | 2 | 2 | 2 | - | |
| 13 | 401109-00124 | Sealring | 20 | 20 | 20 | 20 | - | |
| 14 | 420204-00445 | Fuel return pipe assy | 1 | 1 | 1 | 1 | - | |
| 14-1 | 420204-00447 | Pipe | 1 | 1 | 1 | 1 | - | |
| 14-2 | 65.97401-0178 | Clip | 2 | 2 | 2 | 2 | - | |
| 15 | 420204-00419 | Fuel return pipe assy | 1 | 1 | 1 | 1 | - | |
| 15-1 | 420204-00417 | Pipe | 1 | 1 | 1 | 1 | - | |
| 15-2 | 65.97401-0178 | Clip | 2 | 2 | 2 | 2 | - | |
| 16 | 65.98103-0027 | Union | 2 | 2 | 2 | 2 | - | |
| 17 | 120703-00016 | Screw | 2 | 2 | 2 | 2 | - | |
| 18 | 65.96507-0001 | Ring | 4 | 4 | 4 | 4 | - | |
| 19 | 120703-00034 | Screw | 1 | 1 | 1 | 1 | - | |
| 20 | 65.96507-0001 | Ring | 3 | 3 | 3 | 3 | - | |
| 21 | 65.91701-0184 | Spacer | 1 | 1 | 1 | 1 | - | |
| 22 | 65.91701-0121 | Spacer | 3 | 3 | 3 | 3 | - | |
| 23 | 06.01923-3133 | Bolt | 3 | 3 | 3 | 3 | - | |
| 24 | 06.01923-3131 | Bolt | 1 | 1 | 1 | 1 | - | |
| 25 | 420204-00471 | Pipe | 1 | 1 | 1 | 1 | - | |
| 26 | 420204-00472 | Pipe | 1 | 1 | 1 | 1 | - | |
| 27 | 120402-00414 | Pipe clip assy | 3 | 3 | 3 | 3 | - | |
| 28 | 300728-00057 | Insulator | 3 | 3 | 3 | 3 | - | |
| 29 | 101552-00287 | Nipple | 3 | 3 | 3 | 3 | - | |
| 30 | 06.56190-0706 | Ring | 3 | 3 | 3 | 3 | - | |
| 31 | 420204-00407 | Pipe | 1 | 1 | 1 | 1 | - | |
| 32 | 420204-00409 | Pipe | 1 | 1 | 1 | 1 | - | |
| 33 | 06.78144-2204 | Screw | 2 | 2 | 2 | 2 | - | |
| 34 | 06.56190-0706 | Ring | 4 | 4 | 4 | 4 | - | |
| 35 | 06.71010-0213 | Fitting | 2 | 2 | 2 | 2 | - | |
| 36 | 06.56190-0706 | Ring | 2 | 2 | 2 | 2 | - | |
| 37 | 120402-00414 | Pipe clip assy | 1 | 1 | 1 | 1 | - | |
| 37-1 | 120402-00412 | Clip | 1 | 1 | 1 | 1 | - | |
| 37-2 | 120402-00413 | Clip | 1 | 1 | 1 | 1 | - | |
| 37-3 | 06.01923-2917 | Bolt | 1 | 1 | 1 | 1 | - | |
| 38 | 300728-00056 | Insulator | 1 | 1 | 1 | 1 | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
