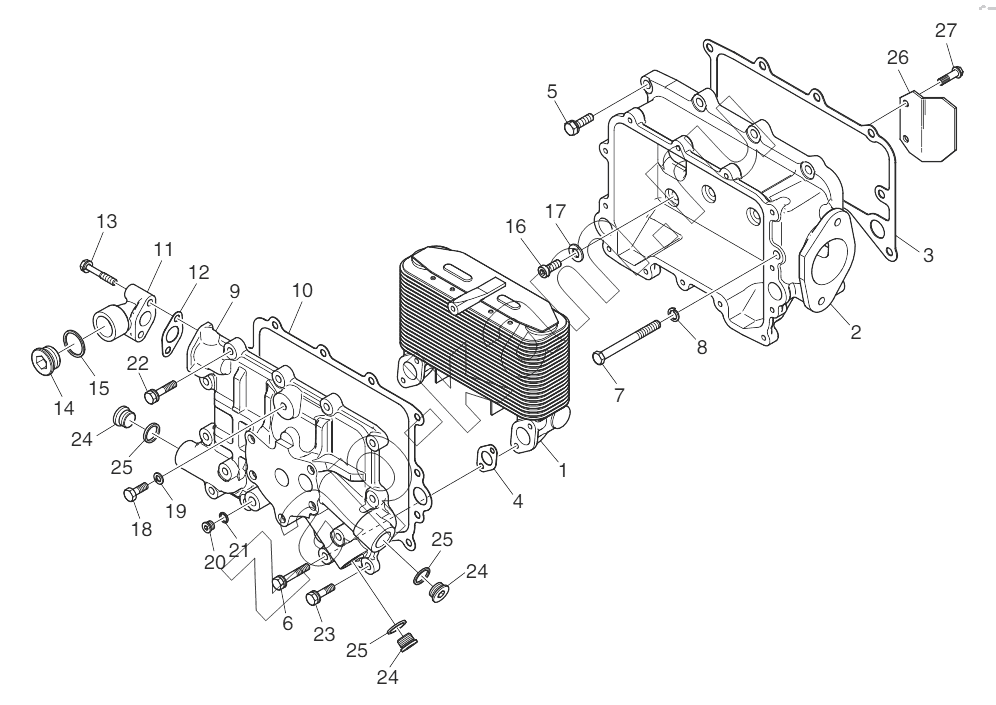

Oil Cooler
/ Doosan DP180LB
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
24
25
25
25
26
27
| Поз. | Артикул | Название детали | DP180LAF | DP180LAS | DP180LBF | DP180LBS | |
|---|---|---|---|---|---|---|---|
| 1 | 65.05601-7135 | Oil cooler assy | 1 | 1 | 1 | 1 | |
| 2 | 110975-00007 | Housing | 1 | 1 | 1 | 1 | |
| 3 | 400621-00018 | Gasket | 1 | 1 | 1 | 1 | |
| 4 | 65.96601-0221B | Gasket | 2 | 2 | 2 | 2 | |
| 5 | 06.01914-3218 | Hex. Bolt | 6 | 6 | 6 | 6 | |
| 6 | 06.01913-3122 | Bolt | 4 | 4 | 4 | 4 | |
| 7 | 06.01014-9226 | Bolt | 1 | 1 | 1 | 1 | |
| 8 | 06.16731-2108 | Washer | 1 | 1 | 1 | 1 | |
| 9 | 160402-00013 | Head | 1 | 1 | 1 | 1 | |
| 10 | 65.05902A0038 | Gasket | 1 | 1 | 1 | 1 | |
| 11 | 430215-00780 | Flange | 1 | 1 | 1 | 1 | |
| 12 | 65.05903-0030 | Gasket | 1 | 1 | 1 | 1 | |
| 13 | 06.01913-3121 | Bolt | 2 | 2 | 2 | 2 | |
| 14 | 65.90310-0134 | Screw | 1 | 1 | 1 | 1 | |
| 15 | 06.56190-0732 | Ring | 1 | 1 | 1 | 1 | |
| 16 | 65.90030-0001 | Bolt | 3 | 3 | 3 | 3 | |
| 17 | 120810-00112 | Washer | 3 | 3 | 3 | 3 | |
| 18 | 06.01283-7111 | Bolt | 1 | 1 | 1 | 1 | |
| 19 | 06.16044-0210 | Washer | 1 | 1 | 1 | 1 | |
| 20 | 06.08092-0204 | Screw | 1 | 1 | 1 | 1 | |
| 21 | 06.56190-0706 | Ring | 1 | 1 | 1 | 1 | |
| 22 | 06.01923-3118 | Bolt | 12 | 12 | 12 | 12 | |
| 23 | 06.01923-3115 | Bolt | 1 | 1 | 1 | 1 | |
| 24 | 65.90310-0133 | Screw | 3 | 3 | 3 | 3 | |
| 25 | 06.56190-0726 | Ring | 3 | 3 | 3 | 3 | |
| 26 | 65.05604-0012 | Plate | 1 | 1 | 1 | 1 | |
| 27 | 06.01283-7113 | Bolt | 2 | 2 | 2 | 2 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
