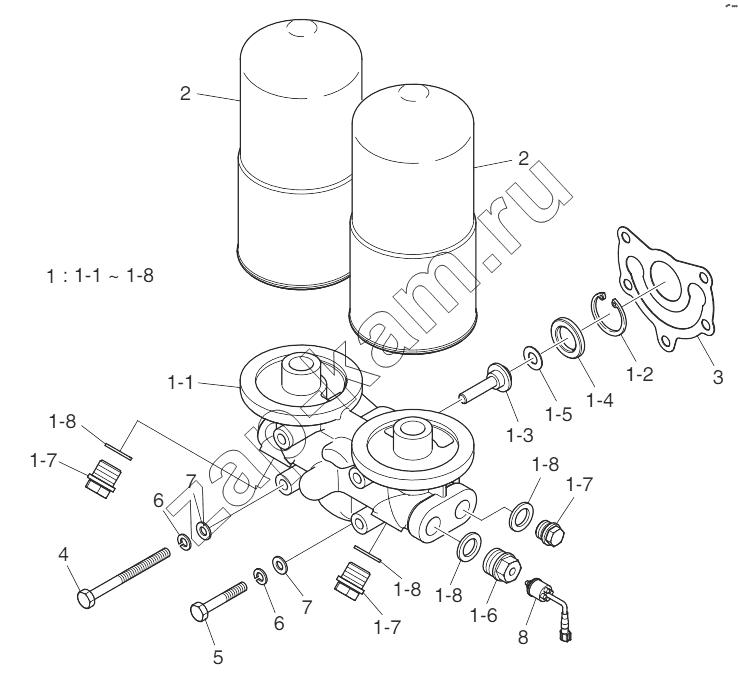

Oil Filter
/ Doosan DP180LB
1
1-1
1-1
1-2
1-3
1-4
1-5
1-6
1-7
1-7
1-7
1-8
1-8
1-8
1-8
1-8
2
2
3
4
5
6
6
7
7
8
| Поз. | Артикул | Название детали | DP180LAF | DP180LAS | DP180LBF | DP180LBS | |
|---|---|---|---|---|---|---|---|
| 1 | 65.05501-7087 | Fuel filter assy | 1 | 1 | 1 | 1 | |
| 1-1 | 65.05503-0043 | Head | 1 | 1 | 1 | 1 | |
| 1-2 | 06.29020-0125 | Ring | 1 | 1 | 1 | 1 | |
| 1-3 | 65.05518-0005 | Valve | 1 | 1 | 1 | 1 | |
| 1-4 | 65.05541-0001 | Seat | 1 | 1 | 1 | 1 | |
| 1-5 | 65.05517-0011 | Plate | 1 | 1 | 1 | 1 | |
| 1-6 | 65.98130-0226 | Adapter | 1 | 1 | 1 | 1 | |
| 1-7 | 06.08062-6208 | Screw | 3 | 3 | 3 | 3 | |
| 1-8 | 06.56190-0722 | Ring | 4 | 4 | 4 | 4 | |
| 2 | 65.05510-5020B | Cartridge | 2 | 2 | 2 | 2 | |
| 3 | 65.05901A0080 | Gasket | 1 | 1 | 1 | 1 | |
| 4 | 06.01013-9237 | Bolt | 4 | 4 | 4 | 4 | |
| 5 | 06.01284-7223 | Bolt | 1 | 1 | 1 | 1 | |
| 6 | 06.16731-2108 | Washer | 5 | 5 | 5 | 5 | |
| 7 | 06.15010-2312 | Washer | 5 | 5 | 5 | 5 | |
| 8 | 65.27441-7009 | Switch | 1 | 1 | 1 | 1 |
