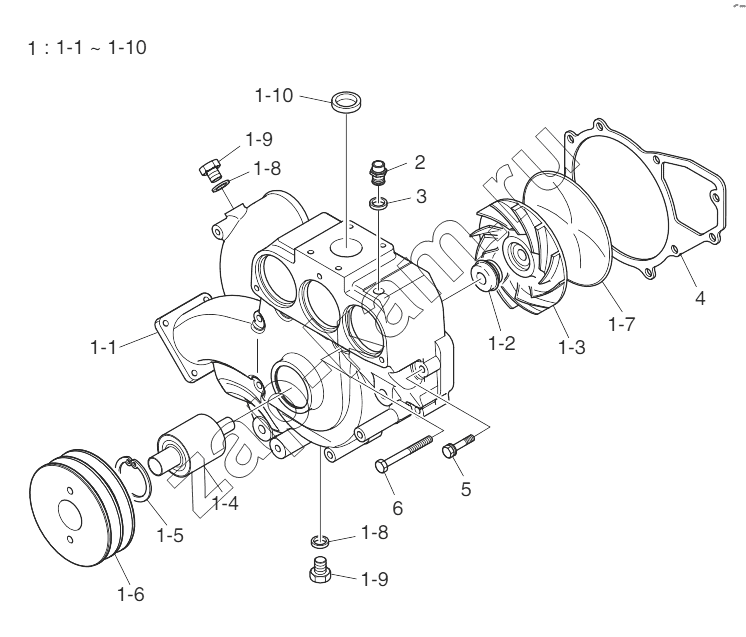

Water Pump
/ Doosan DP180LB
1
1-1
1-1
1-2
1-3
1-4
1-5
1-6
1-7
1-8
1-8
1-9
1-9
1-10
1-10
2
3
4
5
6
| Поз. | Артикул | Название детали | DP180LAF | DP180LAS | DP180LBF | DP180LBS | |
|---|---|---|---|---|---|---|---|
| 1 | 400921-00021 | Water pump assy | 1 | 1 | 1 | 1 | |
| 1-1 | 65.06501-0082A | Housing | 1 | 1 | 1 | 1 | |
| 1-2 | 65.06520-6007 | Seal | 1 | 1 | 1 | 1 | |
| 1-3 | 65.06506-6001A | Impeller | 1 | 1 | 1 | 1 | |
| 1-4 | 65.93410-0087 | Bearing | 1 | 1 | 1 | 1 | |
| 1-5 | 06.29020-0132 | Ring | 1 | 1 | 1 | 1 | |
| 1-6 | 65.06503-0174 | Pulley | 1 | 1 | 1 | 1 | |
| 1-7 | 65.06512-0017A | Cover | 1 | 1 | 1 | 1 | |
| 1-8 | 06.56190-0709 | Ring | 2 | 2 | 2 | 2 | |
| 1-9 | 06.08092-2405 | Screw | 2 | 2 | 2 | 2 | |
| 1-10 | 65.90302-0026 | Plug | 1 | 1 | 1 | 1 | |
| 2 | 65.98131-0060 | Screw | 1 | 1 | 1 | 1 | |
| 3 | 06.56190-0706 | Ring | 1 | 1 | 1 | 1 | |
| 4 | 65.06901A0074 | Gasket | 1 | 1 | 1 | 1 | |
| 5 | 06.01923-3122 | Bolt | 3 | 3 | 3 | 3 | |
| 6 | 06.01913-3128 | Bolt | 3 | 3 | 3 | 3 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
