Accessories (7)

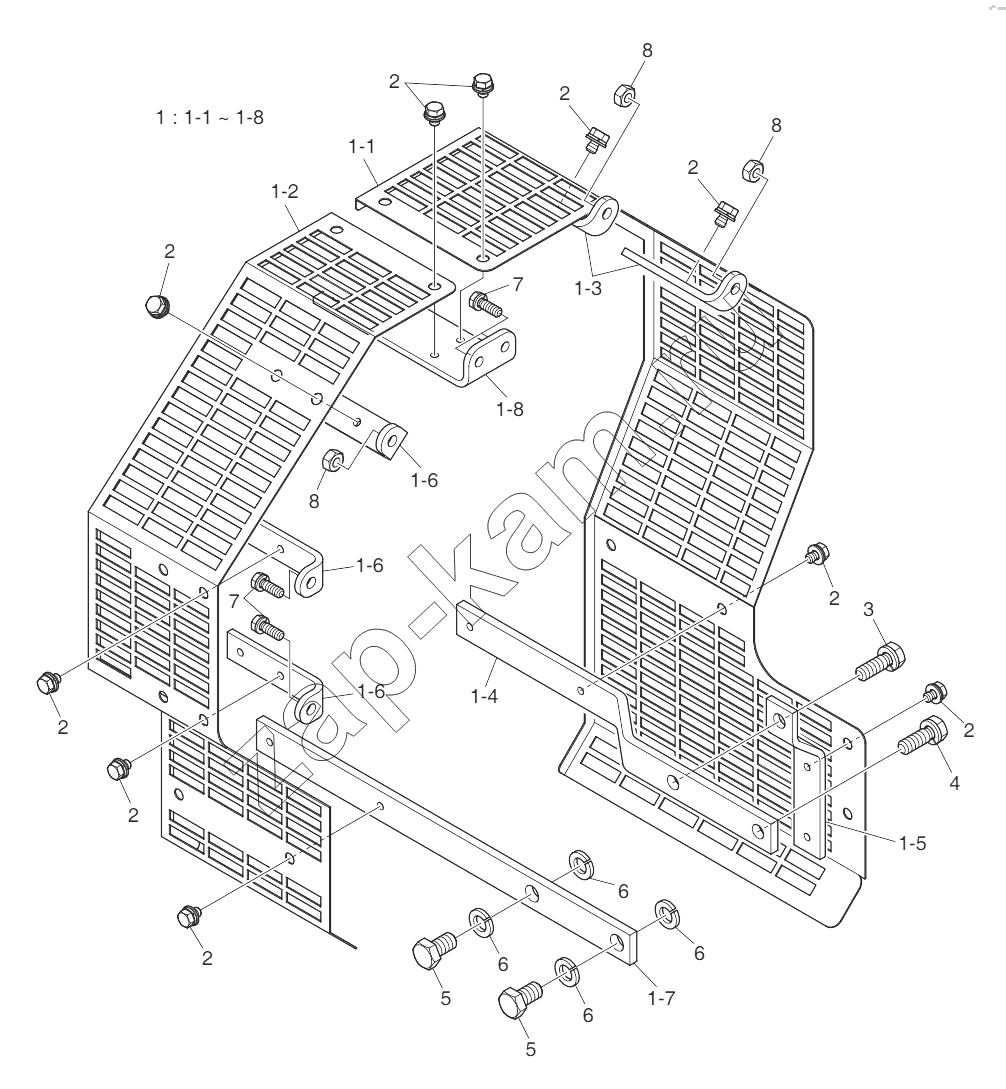

/ Doosan DP222LCS
1
1-1
1-1
1-2
1-3
1-4
1-5
1-6
1-6
1-6
1-7
1-8
1-8
2
2
2
2
2
2
2
2
2
3
4
5
5
6
6
6
6
7
7
8
8
8
| Поз. | Артикул | Название детали | DP222LAS | DP222LBF | DP222LBS | DP222LCF | DP222LCS | |
|---|---|---|---|---|---|---|---|---|
| 1 | 110508-15319 | Fan cover assy | 1 | 1 | 1 | 1 | 1 | |
| 1-1 | 110508-15320 | Cover | 1 | 1 | 1 | 1 | 1 | |
| 1-2 | 110508-12417 | Cover | 1 | 1 | 1 | 1 | 1 | |
| 1-3 | 110515-00274 | Cover | 2 | 2 | 2 | 2 | 2 | |
| 1-4 | 110515-00275 | Cover | 1 | 1 | 1 | 1 | 1 | |
| 1-5 | 110515-00276 | Cover | 1 | 1 | 1 | 1 | 1 | |
| 1-6 | 110515-00233 | Cover | 3 | 3 | 3 | 3 | 3 | |
| 1-7 | 110515-00236 | Cover | 1 | 1 | 1 | 1 | 1 | |
| 1-8 | 430216-00295 | Joint | 1 | 1 | 1 | 1 | 1 | |
| 2 | 06.01923-3110 | Bolt | 20 | 20 | 20 | 20 | 20 | |
| 3 | 06.01913-7318 | Hex. Bolt | 1 | 1 | 1 | 1 | 1 | |
| 4 | 06.01913-7317 | Hex. Bolt | 1 | 1 | 1 | 1 | 1 | |
| 5 | 06.01283-7415 | Bolt | 2 | 2 | 2 | 2 | 2 | |
| 6 | 06.16731-2110 | Washer | 4 | 4 | 4 | 4 | 4 | |
| 7 | 06.01923-3114 | Bolt | 4 | 4 | 4 | 4 | 4 | |
| 8 | 65.90535-0003 | Nut | 3 | 3 | 3 | 3 | 3 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
