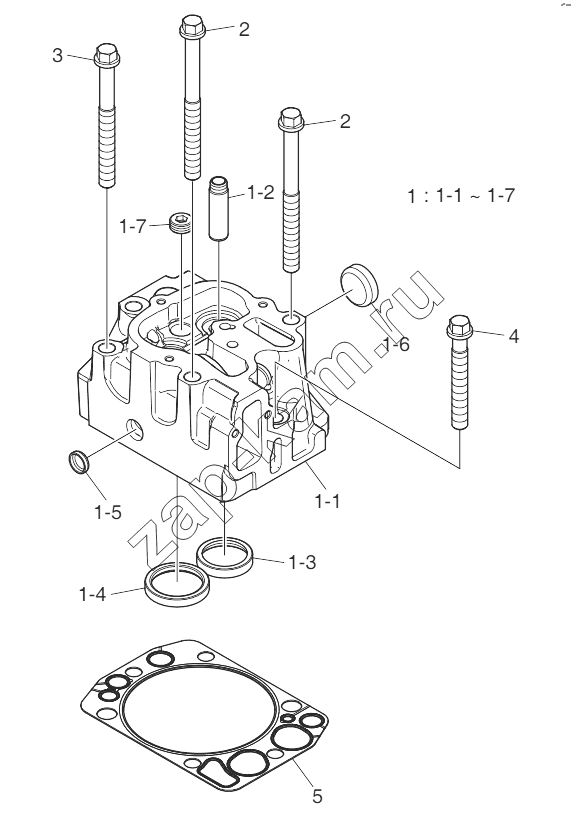

Cylinder Head
/ Doosan DP222LCS
1
1-1
1-1
1-2
1-3
1-4
1-5
1-6
1-7
1-7
2
2
3
4
5
5
| Поз. | Артикул | Название детали | DP222LAS | DP222LBF | DP222LBS | DP222LCF | DP222LCS | Цена | |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 150113-00408A | Cylinder head assy | 12 | 12 | 12 | 12 | 12 | - | |
| 1-1 | 150113-00400A | Head | 1 | 1 | 1 | 1 | 1 | - | |
| 1-2 | 65.03201-1060 | Guide | 2 | 2 | 2 | 2 | 2 | - | |
| 1-3 | 65.03203-0184 | Seat | 1 | 1 | 1 | 1 | 1 | - | |
| 1-4 | 65.03203-0242 | Seat | 1 | 1 | 1 | 1 | 1 | - | |
| 1-5 | 65.91606-0041 | Plug | 1 | 1 | 1 | 1 | 1 | - | |
| 1-6 | 65.91606-0037 | Plug | 1 | 1 | 1 | 1 | 1 | - | |
| 1-7 | 06.08023-0207 | Screw | 1 | 1 | 1 | 1 | 1 | - | |
| 2 | 65.90020-0268 | Bolt | 24 | 24 | 24 | 24 | 24 | - | |
| 3 | 65.90020-0269 | Bolt | 36 | 36 | 36 | 36 | 36 | - | |
| 4 | 65.90020-0270 | Bolt | 12 | 12 | 12 | 12 | 12 | - | |
| 5 | 51.03901-0348 | Gasket | 12 | 12 | 12 | 12 | 12 | - | |
| 5 | 51.03901-0338 | Gasket | 12 | 12 | 12 | 12 | 12 | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
