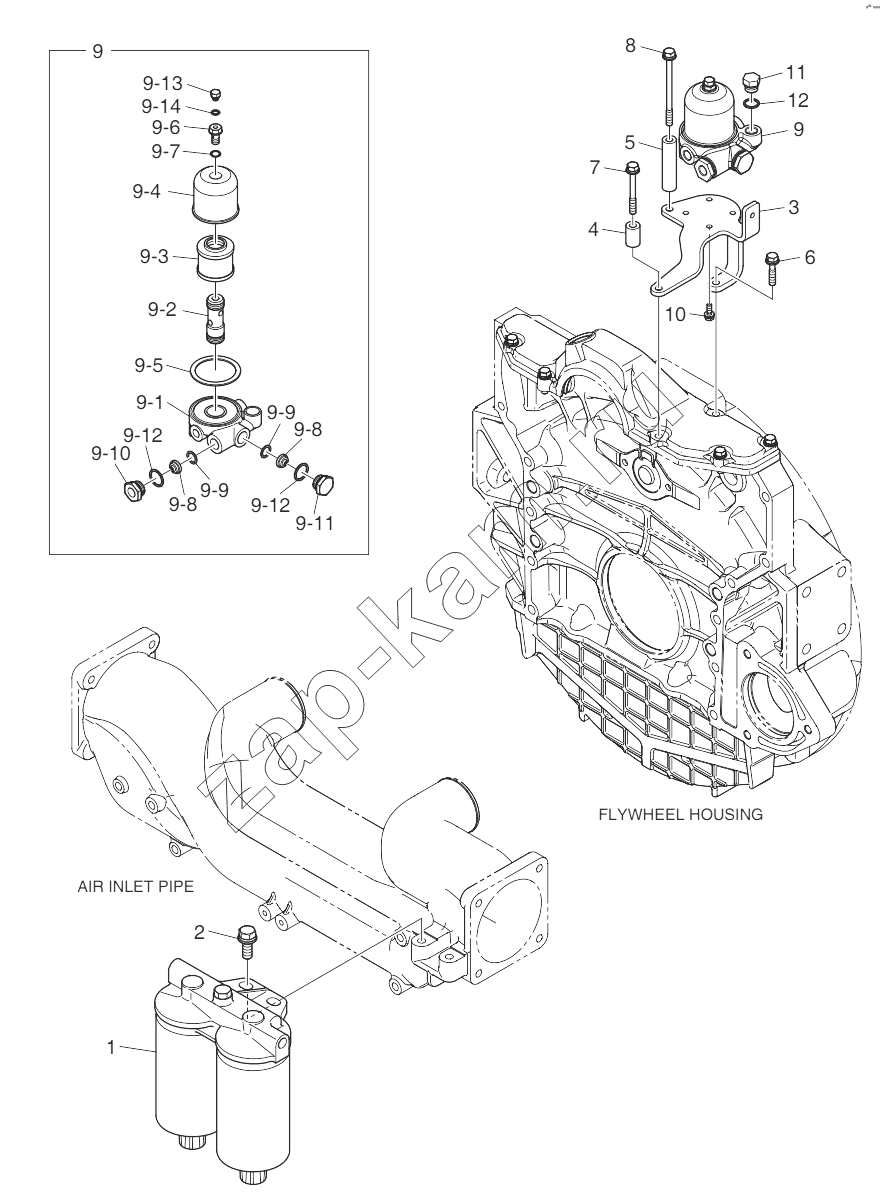

Fuel Filter
/ Doosan DP222LCS
1
2
3
4
5
6
7
8
9
9
9
9-1
9-2
9-3
9-4
9-5
9-6
9-7
9-8
9-8
9-9
9-9
9-10
9-11
9-12
9-12
9-13
9-14
10
11
12
| Поз. | Артикул | Название детали | DP222LAS | DP222LBF | DP222LBS | DP222LCF | DP222LCS | Цена | |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 65.12501-7095A | Fuel filter assy | 1 | 1 | 1 | 1 | 1 | - | |
| 2 | 06.01953-3318 | Bolt | 2 | 2 | 2 | 2 | 2 | - | |
| 3 | 110413-00130 | Bracket | 1 | 1 | 1 | 1 | 1 | - | |
| 4 | 65.91701-0086 | Spacer | 1 | 1 | 1 | 1 | 1 | - | |
| 5 | 110951-00805 | Spacer | 1 | 1 | 1 | 1 | 1 | - | |
| 6 | 06.01923-3119 | Bolt | 1 | 1 | 1 | 1 | 1 | - | |
| 7 | 06.01923-3125 | Bolt | 1 | 1 | 1 | 1 | 1 | - | |
| 8 | 06.01923-3132 | Bolt | 1 | 1 | 1 | 1 | 1 | - | |
| 9 | 65.12501-7036 | Fuel filter assy | 1 | 1 | 1 | 1 | 1 | - | |
| 9 | 400403-00038 | Fuel filter assy | 1 | 1 | 1 | 1 | 1 | - | |
| 9-1 | 65.12504-0011 | Cover | 1 | 1 | 1 | 1 | 1 | - | |
| 9-2 | 65.12510-0006 | Bolt | 1 | 1 | 1 | 1 | 1 | - | |
| 9-3 | 65.12503-5019 | Element | 1 | 1 | 1 | 1 | 1 | - | |
| 9-4 | 65.12502-0005 | Housing | 1 | 1 | 1 | 1 | 1 | - | |
| 9-5 | 65.12506-0011 | Packing | 1 | 1 | 1 | 1 | 1 | - | |
| 9-6 | 65.90002-0033 | Bolt | 1 | 1 | 1 | 1 | 1 | - | |
| 9-7 | 06.56011-0301 | O-ring | 1 | 1 | 1 | 1 | 1 | - | |
| 9-8 | 65.01816-5003 | Valve | 2 | 2 | 2 | 2 | 2 | - | |
| 9-9 | 65.12506-0012 | Packing | 2 | 2 | 2 | 2 | 2 | - | |
| 9-10 | 65.98130-0088 | Adapter | 1 | 1 | 1 | 1 | 1 | - | |
| 9-11 | 06.08092-2407 | Screw | 1 | 1 | 1 | 1 | 1 | - | |
| 9-12 | 06.56190-0718 | Ring | 2 | 2 | 2 | 2 | 2 | - | |
| 9-13 | 06.08090-0201 | Screw | 1 | 1 | 1 | 1 | 1 | - | |
| 9-14 | 06.56180-0811 | Ring | 1 | 1 | 1 | 1 | 1 | - | |
| 10 | 06.01923-2912 | Bolt | 4 | 4 | 4 | 4 | 4 | - | |
| 11 | 65.90310-0150 | Screw | 1 | 1 | 1 | 1 | 1 | - | |
| 12 | 06.56190-0708 | Ring | 1 | 1 | 1 | 1 | 1 | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
