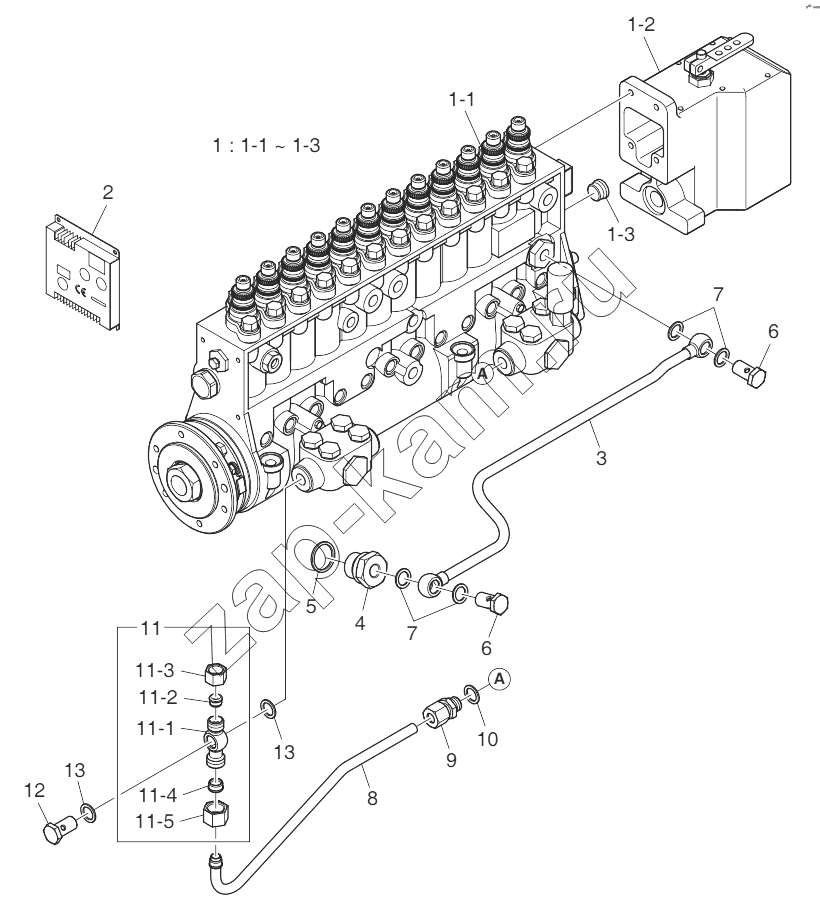

Injection Pump (1)
/ Doosan DP222LCS
1
1-1
1-1
1-2
1-3
1-3
2
3
4
5
6
6
7
7
8
9
10
11
11-1
11-2
11-3
11-4
11-5
12
13
13
| Поз. | Артикул | Название детали | DP222LBF | DP222LCF | Цена | |
|---|---|---|---|---|---|---|
| 1 | 400912-00028 | Injection pump assy | 1 | 1 | - | |
| 1-1 | 65.11101-7303 | Fuel injection pump assy | 1 | 1 | - | |
| 1-2 | 65.11501-7006C | Governor assy | 1 | 1 | - | |
| 1-3 | 65.90310-0129 | Screw | 1 | 1 | - | |
| 2 | 300611-00683 | Controller | 1 | 1 | - | |
| 3 | 65.05701-5360 | Pipe | 1 | 1 | - | |
| 4 | 65.98130-0151 | Adapter | 1 | 1 | - | |
| 5 | 06.56190-0726 | Ring | 1 | 1 | - | |
| 6 | 06.78144-2204 | Screw | 2 | 2 | - | |
| 7 | 06.56190-0706 | Ring | 4 | 4 | - | |
| 8 | 420204-00027 | Pipe | 1 | 1 | - | |
| 9 | 06.71010-0213 | Fitting | 1 | 1 | - | |
| 10 | 06.56190-0706 | Ring | 1 | 1 | - | |
| 11 | 430228-00012 | Banjo union assy | 1 | 1 | - | |
| 11-1 | 430228-00013 | Union | 1 | 1 | - | |
| 11-2 | 06.71024-0107 | Ring | 1 | 1 | - | |
| 11-3 | 06.71030-8113 | Nut | 1 | 1 | - | |
| 11-4 | 06.71024-0108 | Ring | 1 | 1 | - | |
| 11-5 | 06.71030-8114 | Nut | 1 | 1 | - | |
| 12 | 06.78144-2204 | Screw | 1 | 1 | - | |
| 13 | 06.56190-0706 | Ring | 2 | 2 | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
