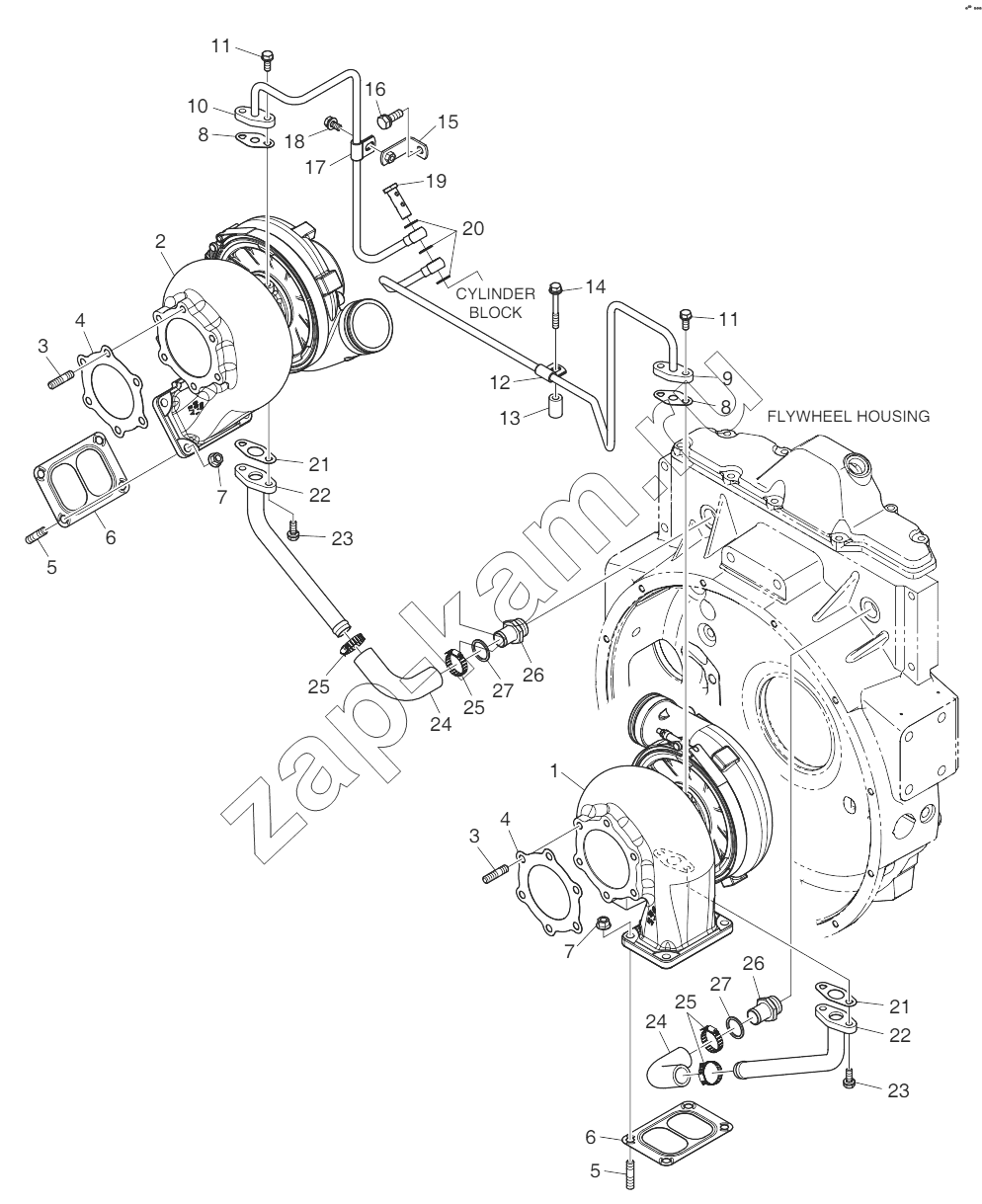

Turbocharger
/ Doosan DP222LCS
1
2
3
3
4
4
5
5
6
6
7
7
8
8
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
21
21
22
22
23
23
24
24
25
25
25
26
26
27
27
| Поз. | Артикул | Название детали | DP222LAS | DP222LBF | DP222LBS | DP222LCF | DP222LCS | |
|---|---|---|---|---|---|---|---|---|
| 1 | 150105-00438 | Turbocharger assy | 1 | 1 | 1 | 1 | 1 | |
| 2 | 150105-00439 | Turbocharger assy | 1 | 1 | 1 | 1 | 1 | |
| 3 | 06.06226-0808 | Bolt | 12 | 12 | 12 | 12 | 12 | |
| 4 | 65.08901-0063 | Gasket | 2 | 2 | 2 | 2 | 2 | |
| 5 | 65.90201-0076 | Bolt | 8 | 8 | 8 | 8 | 8 | |
| 6 | 65.09901-0033 | Gasket | 2 | 2 | 2 | 2 | 2 | |
| 7 | 65.90535-0001 | Nut | 8 | 8 | 8 | 8 | 8 | |
| 8 | 400612-00031 | Gasket | 2 | 2 | 2 | 2 | 2 | |
| 8 | 65.96601-0046B | Gasket | 2 | 2 | 2 | 2 | 2 | |
| 9 | 420214-00249 | Pipe | 1 | 1 | 1 | 1 | 1 | |
| 10 | 420214-00250 | Pipe | 1 | 1 | 1 | 1 | 1 | |
| 11 | 120106-00191 | Bolt | 4 | 4 | 4 | 4 | 4 | |
| 12 | 65.97401-0110A | Clip | 1 | 1 | 1 | 1 | 1 | |
| 13 | 65.91701-0086 | Spacer | 1 | 1 | 1 | 1 | 1 | |
| 14 | 06.01923-3124 | Bolt | 1 | 1 | 1 | 1 | 1 | |
| 15 | 110928-00360 | Holder | 1 | 1 | 1 | 1 | 1 | |
| 16 | 06.01913-3217 | Bolt | 1 | 1 | 1 | 1 | 1 | |
| 17 | 65.97401-0110A | Clip | 1 | 1 | 1 | 1 | 1 | |
| 18 | 06.01923-3112 | Bolt | 1 | 1 | 1 | 1 | 1 | |
| 19 | 65.98150-0071 | Screw | 1 | 1 | 1 | 1 | 1 | |
| 20 | 06.56190-0706 | Ring | 3 | 3 | 3 | 3 | 3 | |
| 21 | 400612-00028 | Gasket | 2 | 2 | 2 | 2 | 2 | |
| 21 | 65.96601-0067 | Gasket | 2 | 2 | 2 | 2 | 2 | |
| 22 | 420217-00227 | Pipe | 2 | 2 | 2 | 2 | 2 | |
| 23 | 120106-00191 | Bolt | 4 | 4 | 4 | 4 | 4 | |
| 24 | 420107-00301 | Hose | 2 | 2 | 2 | 2 | 2 | |
| 25 | 65.97440-0004A | Clamp | 4 | 4 | 4 | 4 | 4 | |
| 26 | 65.98131-0071 | Screw | 2 | 2 | 2 | 2 | 2 | |
| 27 | 06.56190-0728 | Ring | 2 | 2 | 2 | 2 | 2 |
