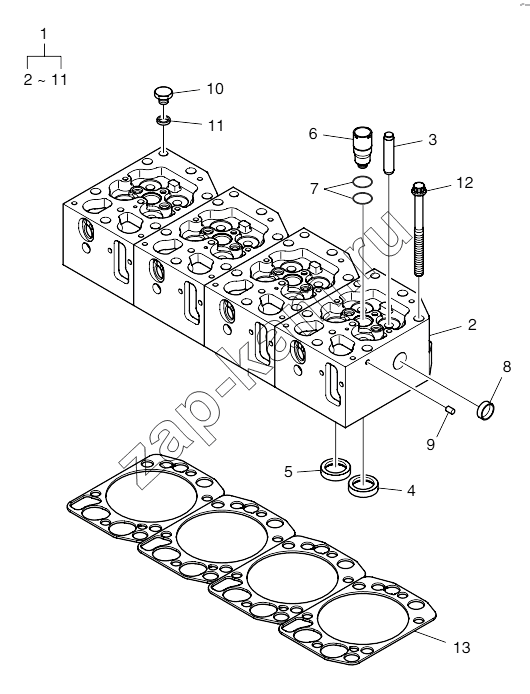

Cylinder Head
/ Doosan P158FE
/11.gif)
1
2
2
3
4
5
6
7
8
9
10
11
11
12
13
| Поз. | Артикул | Название детали | P158FE-EUZOA | P158FE-EUZOB | P180FE-EUZOA | P180FE-EUZOB | P222FE-EUZOA | P222FE-EUZOB | P222FE-EUZOD | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 65.03101-6086D | Cylinder head assy | 8 | 8 | 10 | 10 | 12 | 12 | 12 | |
| 2 | 65.03101-1066A | Head | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 3 | 65.03201-1015B | Guide | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 4 | 65.03203-1057A | Seat | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 5 | 65.03203-1058A | Seat | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 6 | 65.03205-0006A | Tube | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 7 | 65.96501-0088 | O-ring | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 8 | 65.90302-0048 | Plug | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| 9 | 65.91001-0005 | Pin | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 10 | 06.08041-2203 | Screw | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 11 | 06.56190-0706 | Ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 12 | 65.90021-0008 | Bolt | 48 | 48 | 60 | 60 | 72 | 72 | 72 | |
| 13 | 65.03901-0069 | Gasket | 8 | 8 | 10 | 10 | 12 | 12 | 12 |
