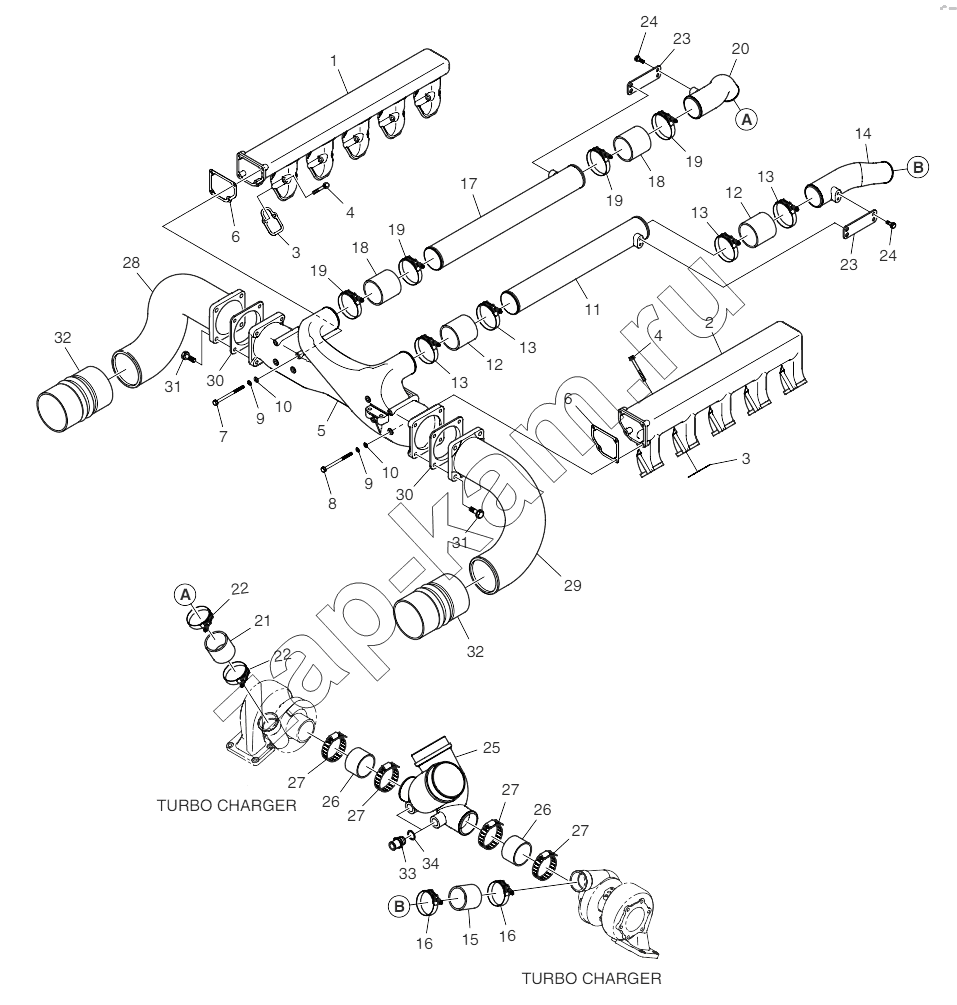

Intake Manifold
/ Doosan P158FE
/30.gif)
1
2
3
3
4
4
5
6
6
7
8
9
9
10
10
11
12
12
13
13
13
13
14
15
16
16
17
18
18
19
19
19
19
20
21
22
22
23
23
24
24
25
26
26
27
27
27
27
28
29
30
30
31
31
32
32
33
34
| Поз. | Артикул | Название детали | P180FE-EUZOA | P180FE-EUZOB | Цена | |
|---|---|---|---|---|---|---|
| 1 | 65.08201-5065 | Manifold | 1 | 1 | - | |
| 2 | 65.08201-5066 | Manifold | 1 | 1 | - | |
| 3 | 65.08902-0078D | Gasket | 10 | 10 | - | |
| 4 | 06.01923-3127 | Bolt | 20 | 20 | - | |
| 5 | 65.09411-5093 | Inlet | 1 | 1 | - | |
| 6 | 65.08902-0031 | Gasket | 2 | 2 | - | |
| 7 | 06.01013-9127 | Bolt | 4 | 4 | - | |
| 8 | 06.01013-9128 | Bolt | 4 | 4 | - | |
| 9 | 06.16731-2107 | Washer | 8 | 8 | - | |
| 10 | 06.15010-2311 | Washer | 8 | 8 | - | |
| 11 | 65.09411-5117 | Inlet | 1 | 1 | - | |
| 12 | 65.96301-0270 | Hose | 2 | 2 | - | |
| 13 | 65.97440-5005 | Clamp | 4 | 4 | - | |
| 14 | 65.09411-5118 | Inlet | 1 | 1 | - | |
| 15 | 65.96301-0267 | Hose | 1 | 1 | - | |
| 16 | 65.97440-5004 | Clamp | 2 | 2 | - | |
| 17 | 65.09411-5119 | Inlet | 1 | 1 | - | |
| 18 | 65.96301-0270 | Hose | 2 | 2 | - | |
| 19 | 65.97440-5005 | Clamp | 4 | 4 | - | |
| 20 | 65.09411-5120 | Inlet | 1 | 1 | - | |
| 21 | 65.96301-0267 | Hose | 1 | 1 | - | |
| 22 | 65.97440-5004 | Clamp | 2 | 2 | - | |
| 23 | 65.97480-0036 | Holder | 2 | 2 | - | |
| 24 | 06.01923-3114 | Bolt | 8 | 8 | - | |
| 25 | 65.08202-0102 | Stake | 1 | 1 | - | |
| 26 | 65.96301-0272 | Hose | 2 | 2 | - | |
| 27 | 65.97440-0096 | Clamp | 4 | 4 | - | |
| 28 | 65.09411-0088 | Inlet | 1 | 1 | - | |
| 29 | 65.09411-0089 | Inlet | 1 | 1 | - | |
| 30 | 65.09905-0004 | Gasket | 2 | 2 | - | |
| 31 | 06.01953-3318 | Bolt | 8 | 8 | - | |
| 32 | 65.96301-0329 | Hose | 2 | 2 | - | |
| 33 | 65.98131-0072 | Screw | 2 | 2 | - | |
| 34 | 06.56190-0726 | Ring | 2 | 2 | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
